Description

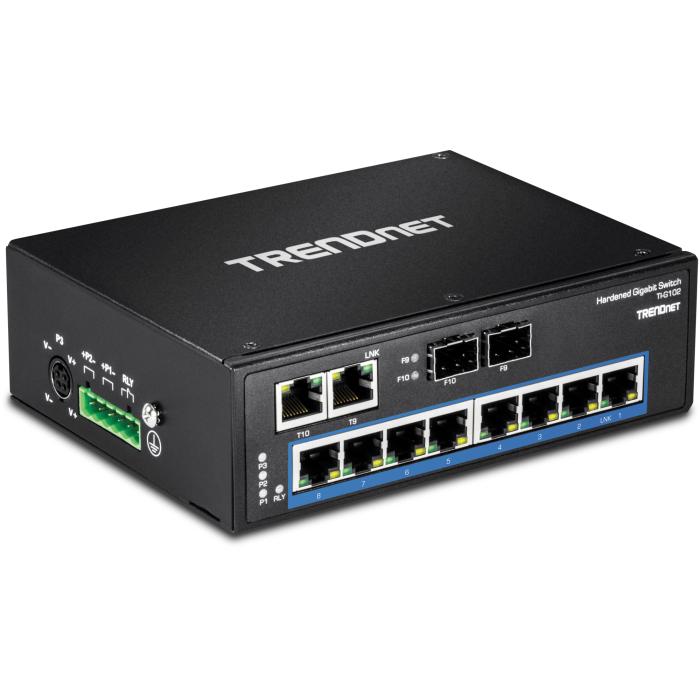

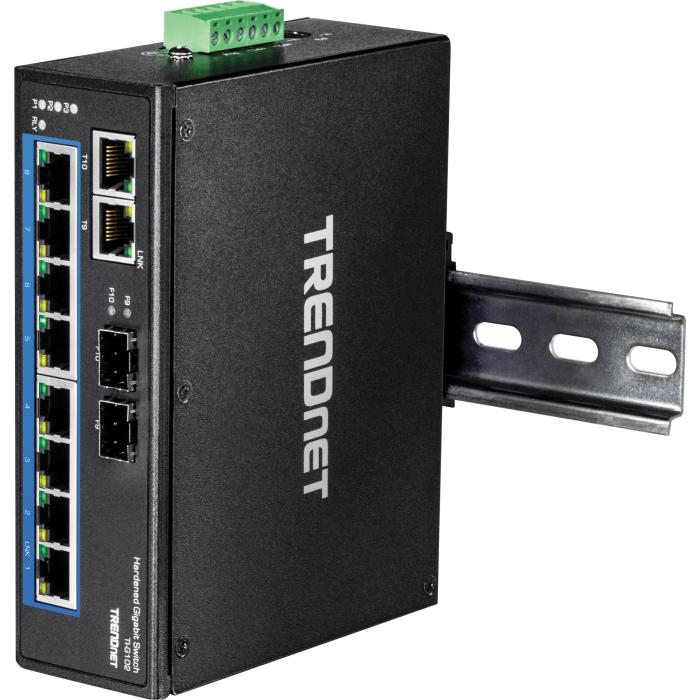

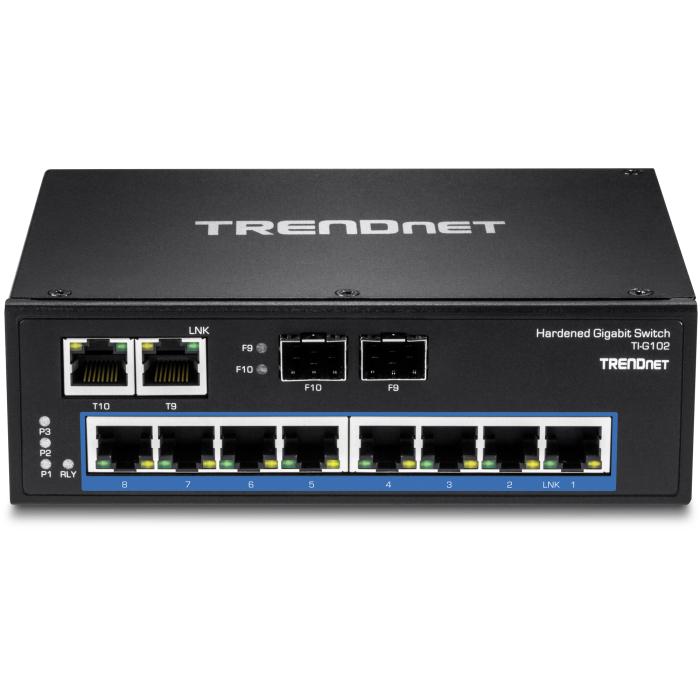

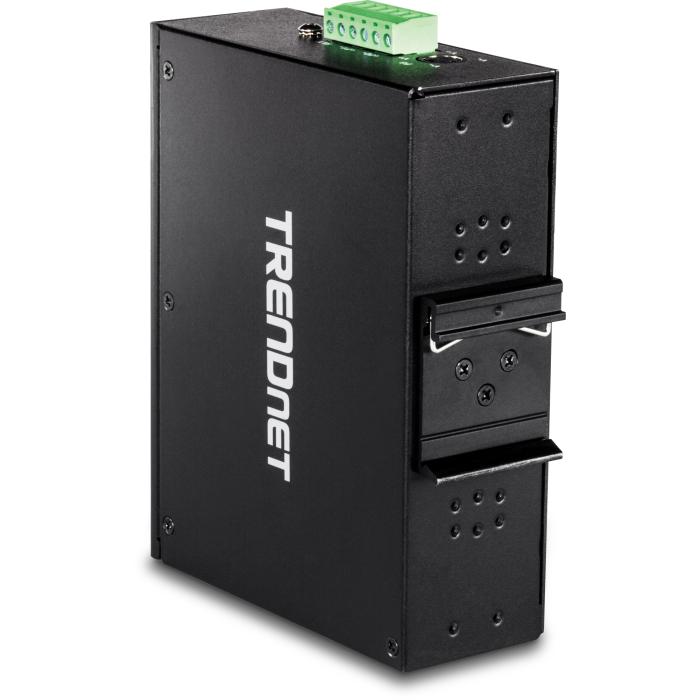

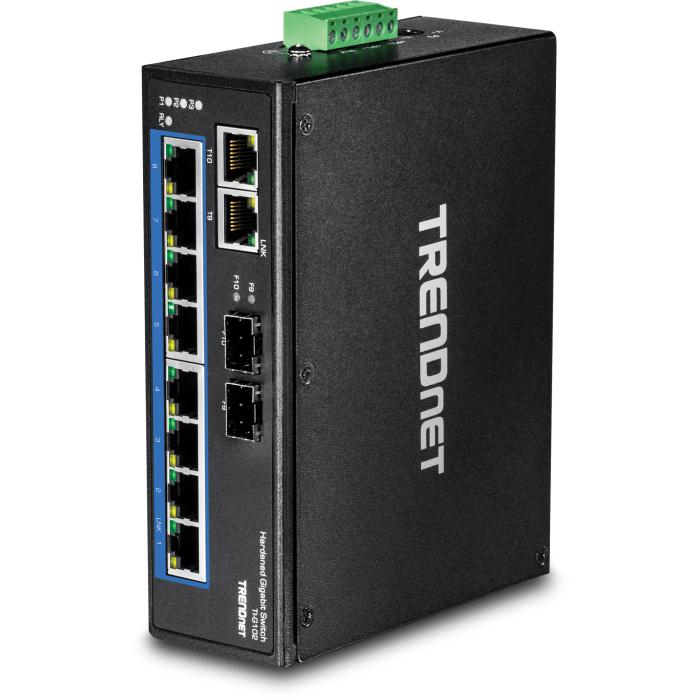

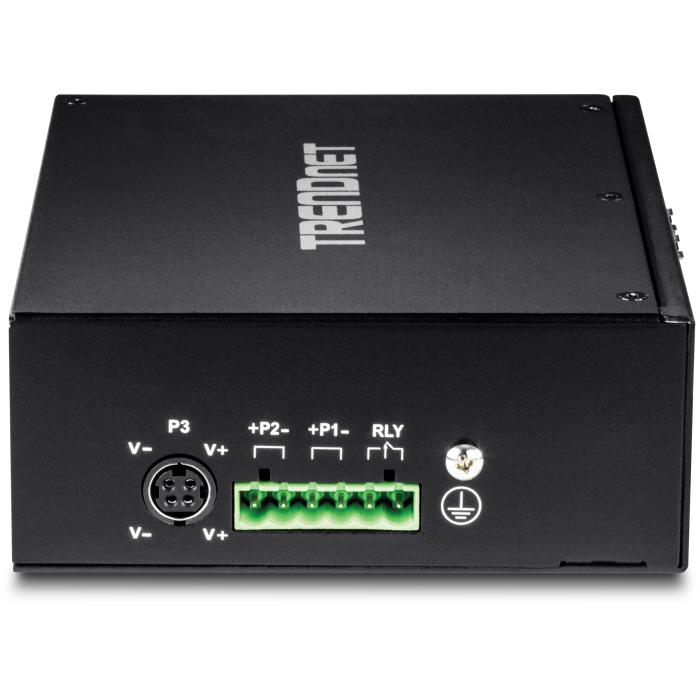

The Trendnet TI-G102 switch from TRENDNET's Gigabit Ethernet series offers ten RJ-45 ports at 10/100/1000 Mbps and two additional SFP slots, all in a black metal housing with wall-mount and DIN-rail mounting options. Its switching capacity reaches 20 Gbit/s, with a MAC address table of 16,000 entries and a forwarding rate of 14.8 Mpps. Compatible with IEEE 802.3, 802.3ab, 802.3u, 802.3x and 802.3z standards, this device manages traffic using the store-and-forward method, incorporating auto-negotiation, full duplex and automatic address learning. It includes LED indicators to monitor the status of connections and is powered via a DC input socket.
Specifications
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 10
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 2
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Full duplex: Yes
- Auto-negotiation: Yes
- MAC address auto-learning supported: Yes
- MAC address auto-aging supported: Yes
Data transmission
- Switching capacity: 20 Gbit/s
- Forwarding rate: 14.8 Mpps
- MAC address table: 16000 entries
- Store-and-forward: Yes
Design
- Housing material: Metal
- LED indicators: Yes
- International Protection (IP) code: IP30
- Wall mountable: Yes
- DIN rail mounting: Yes
- Rack mounting: No
- Product colour: Black
Performance
- Buffer size: 2048 KB
- Mean time between failures (MTBF): 510400 h
Power
- Redundant power supply (RPS) support: Yes
- DC input voltage: 12 - 56 V
- Input voltage: 12/56 V
- Power consumption (max): 5.76 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
- Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 155 mm
- Depth: 120 mm
- Height: 48 mm
- Weight: 415 g
Packaging data
- Wall mounting kit: Yes
- Terminal block included: Yes
Certificates
- Certification: CE, FCC
Logistics data
- Harmonized System (HS) code: 85176990
