Description

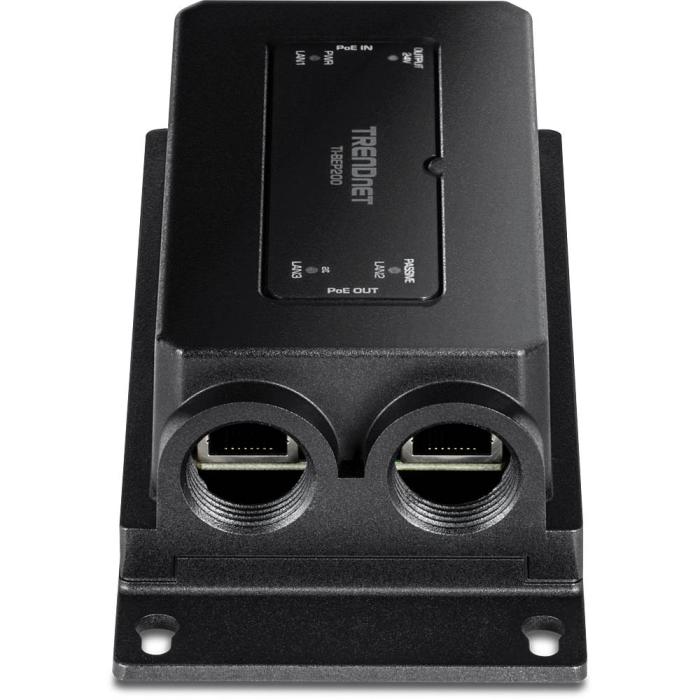

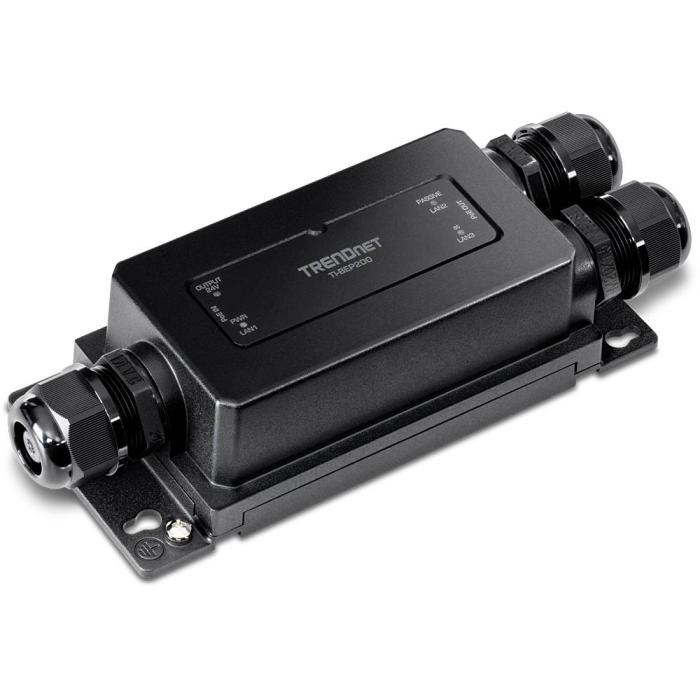

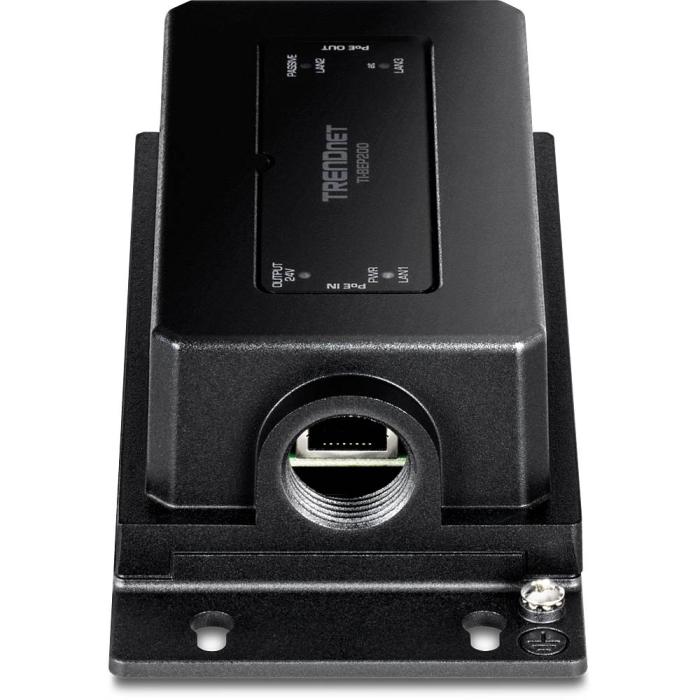

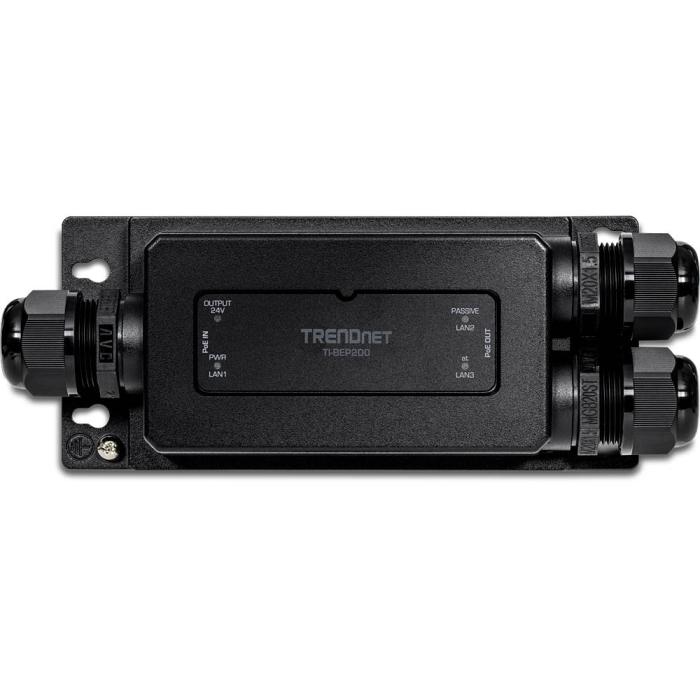

The black Trendnet TI-BEP200 functions as a network transmitter and receiver with Ethernet speeds of 10, 100 and 1000 Mbit/s, achieving a maximum transfer distance of 200 metres and a data rate of 2000 Mbit/s in full-duplex mode. It features three RJ-45 ports with 10/100/1000Base-T(X) technology, support for flow control and Jumbo Frames, along with a MAC address table of 2048 entries. Its IP67-protected design makes it resistant to dust and water, and it includes LED indicators and FCC and IEC certifications for demanding environments. Powered via Power over Ethernet with a 60 W budget, it integrates into networks that comply with the IEEE 802.3, IEEE 802.3ab, IEEE 802.3u and IEEE 802.3x standards.
Specifications
Performance
- Type: Network transmitter & receiver
- Maximum transfer distance: 200 m
- Data transfer rate: 2000 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Jumbo frames support: Yes
- Duplex system: Full
- MAC address table: 2048 entries
- Flow control support: Yes
- International Protection (IP) code: IP67
Network
- Cabling technology: 10/100/1000Base-T(X)
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ports & interfaces
- Host interface: RJ-45
- Ethernet LAN (RJ-45) ports: 3
Design
- Product colour: Black
- LED indicators: Yes
- Quantity per pack: 1 pc(s)
- Certification: FCC IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6
Power
- Power consumption (max): 3.9 W
- Total Power over Ethernet (PoE) budget: 60 W
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
Weight & dimensions
- Width: 167 mm
- Depth: 74 mm
- Height: 44 mm
- Weight: 266 g
Packaging content
- Quick start guide: Yes

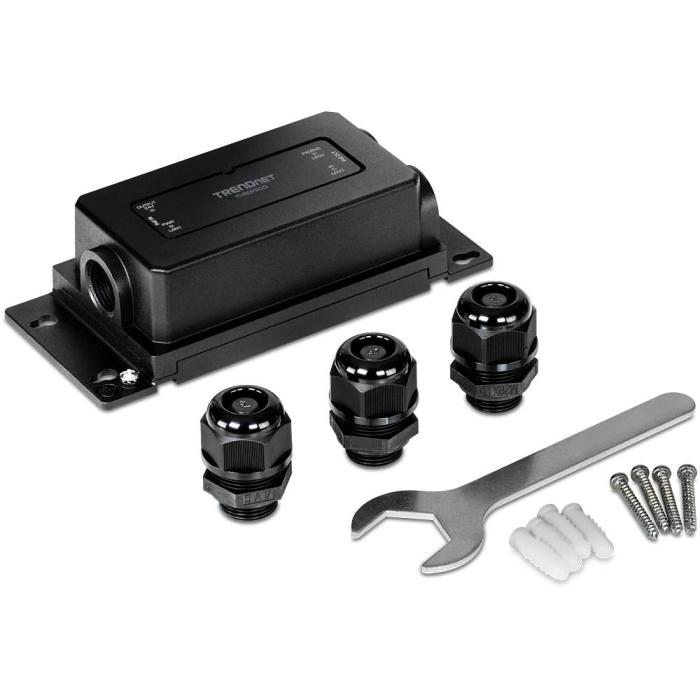

- Wall mounting kit: Yes
- AC adapter included: No
Sustainability
- Sustainability compliance: Yes
Certificates
- Compliance certificates: CE, RoHS
