Description

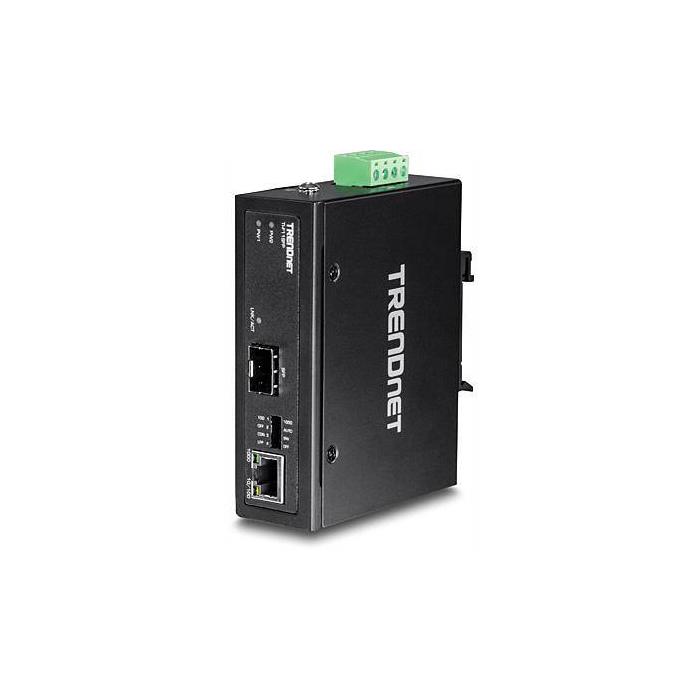

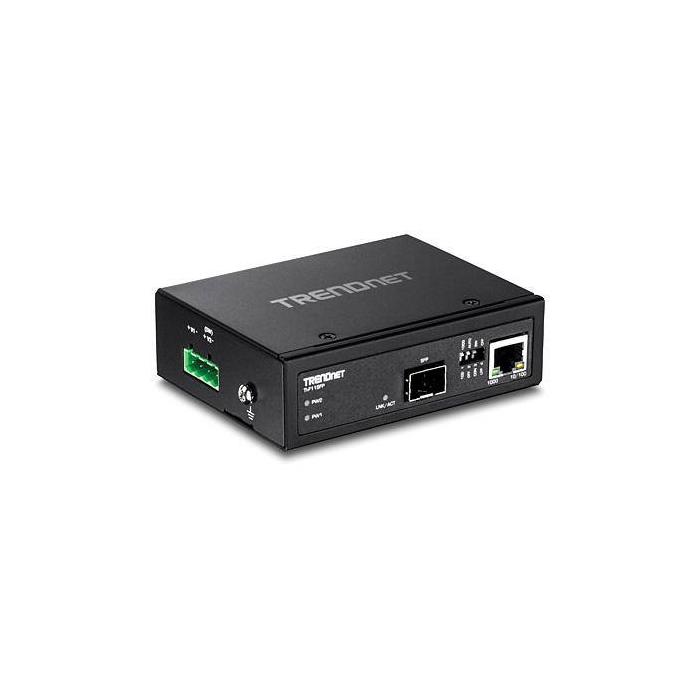

The Trendnet TI-F11SFP in black is a Gigabit Ethernet media converter with a metal housing, designed to integrate copper and fibre optic networks. This model features one RJ-45 port and one fibre channel port, allowing the connection to be extended up to a maximum distance of 80,000 metres. Compatible with IEEE 802.3u and IEEE 802.3 standards, it supports transfer speeds of 10, 100 and 1000 Mbit/s, as well as jumbo frames, with a 1024 KB buffer and a mean time between failures of 510,304 hours. Its full-duplex and half-duplex system, together with the LED indicators, facilitate network management and monitoring.
Specifications
Network
- Maximum data transfer rate: 1000 Mbit/s
- Converter input interface: 1000Base-T
- Networking standards: IEEE 802.3u, IEEE 802.3
- Ethernet interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Jumbo frames support: Yes
- Duplex system: Full, Half
Performance
- Maximum transfer distance: 80000 m
- Buffer size: 1024 KB
- Mean time between failures (MTBF): 510304 h
Features
- Internal: No
- LED indicators: Yes
- Product colour: Black
- Housing material: Metal
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 1
Power
- Power over Ethernet (PoE): No
Weight & dimensions
- Width: 113 mm
- Depth: 82 mm
- Height: 31 mm
- Weight: 152 g
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
Certificates
- Certification: FCC CE
Logistics data
- Harmonized System (HS) code: 85176990
Other features
- Power requirements: 12 - 56 VDC / 18 - 36 VAC
