Description

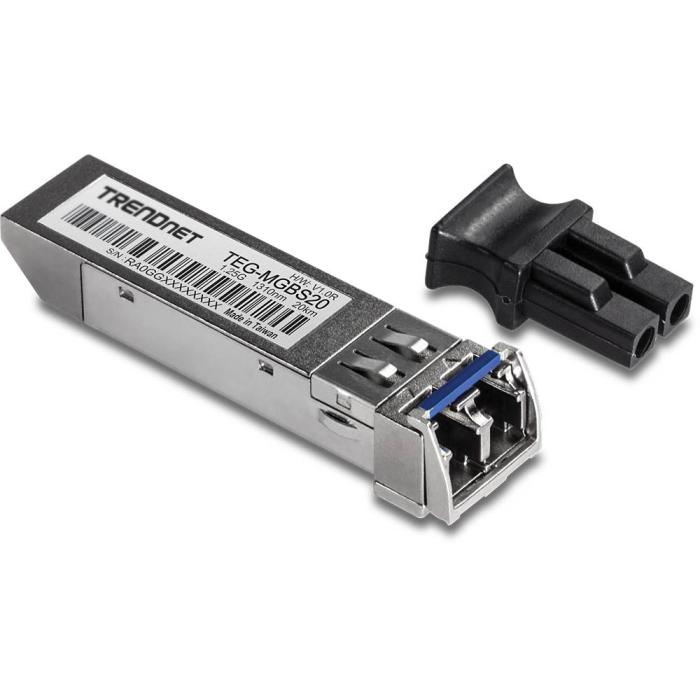

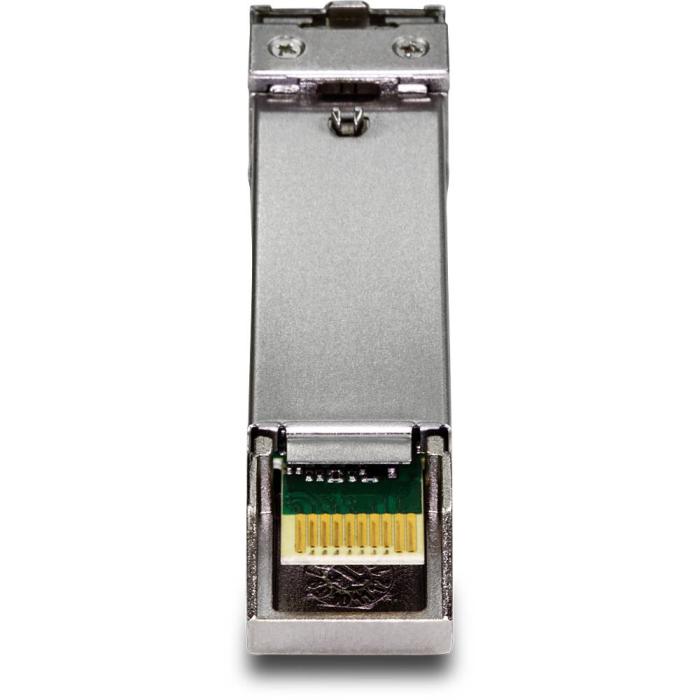

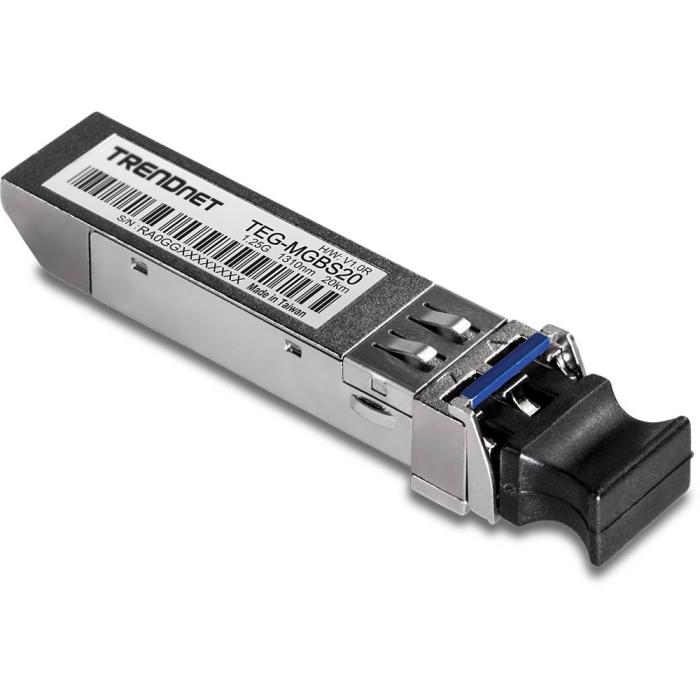

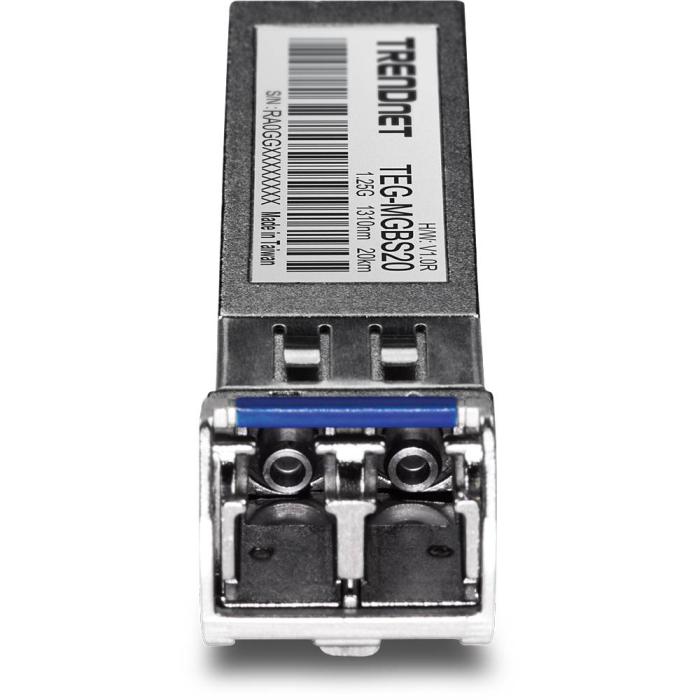

The Trendnet TEG-MGBS20 media converter, in a black and stainless steel finish, is presented as a solution for integrating single-mode fibre optic networks with a maximum transfer speed of 1250 Mbit/s and a wavelength of 1310 nm. It complies with IEEE 802.3, 802.3u and 802.3z standards, offering a transfer distance of up to 20000 metres, a sensitivity of -22 dBmW and an energy consumption of only 0.8 W. It includes LC and SFP connectors for connection, with a weight of 18 grammes and dimensions of 57 mm wide, 13 mm deep and 12 mm high. It operates in a temperature range of 0 to 70 °C and with a relative humidity of 0 to 85%, and has CE and FCC certifications.
Specifications
Network
- Maximum data transfer rate: 1250 Mbit/s
- Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z
Performance
- Maximum transfer distance: 20000 m
- Wavelength: 1310 nm
- Fiber mode structure: Single-mode
- Sensitivity: -22 dBmW
Features
- Product colour: Black, Stainless steel
Ports & interfaces
- Fiber optic connector: LC, SFP
Power
- Power consumption (typical): 0.8 W
Weight & dimensions
- Width: 57 mm
- Depth: 13 mm
- Height: 12 mm
- Weight: 18 g
Operational conditions
- Operating temperature (T-T): 0 - 70 °C
- Operating relative humidity (H-H): 0 - 85%
Certificates
- Certification: CE, FCC
