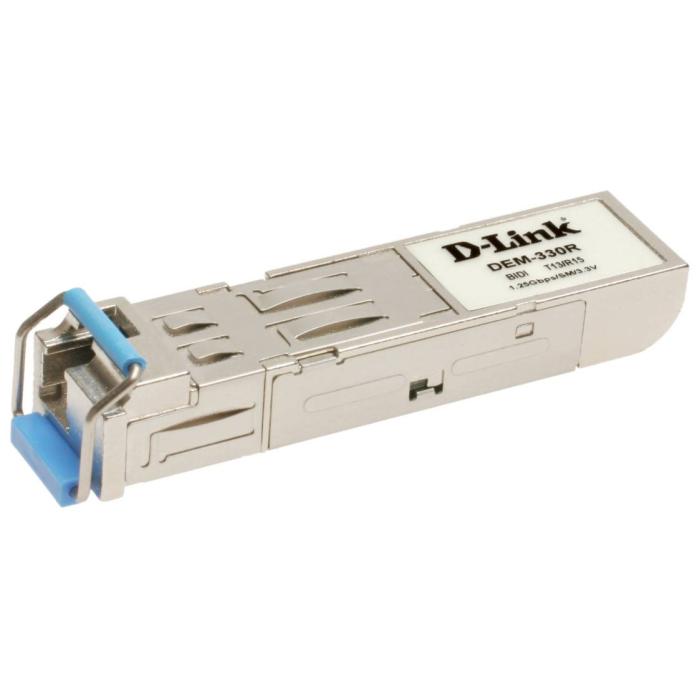

Description
Connect the D-Link DEM-330R media converter for single-mode fibre links of 1250 Mbit/s up to a maximum distance of 10 km, operating at a wavelength of 1310 nm over 1000BASE-BX-U technology. This Gigabit Ethernet module features a wired interface, is compatible with the IEEE802.3z standard, and offers hot-swap support for replacement without network interruption. Its 9/125 µm fibre, sensitivity of -21 dBmW, and transmission range of -3 to -9 dBmW ensure signal integrity, with a mean time between failures of 445,890 hours. It complies with TUV, UL, and FDA safety regulations, and certifications such as FCC Class B, ICES-003 Class B, CE Class B, and VCCI Class B, and is RoHS compliant.
Specifications
Network
- Maximum data transfer rate: 1250 Mbit/s
- Cabling technology: 1000BASE-BX-U
Performance
- Maximum transfer distance: 10000 m
- Wavelength: 1310 nm
- Sensitivity: -21 dBmW
- Mean time between failures (MTBF): 445890 h
Features
- Hot-swap: Yes
- Compliance industry standards: IEEE802.3z
Ports & interfaces
- Connectivity technology: Wired
Weight & dimensions
- Weight: 19.8 g
Certificates
- Safety: TUV, UL, FDA
- Certification: FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B RoHS
Other features
- Transmit power range: -3 - -9 dBmW
- Dimensions (WxDxH): 13.4 x 55.5 x 11.28 mm
- Interface: Gigabit Ethernet
- Connector(s): Simplex LC
- Power requirements: 3.3 V, 250 mA
- Power budget: 12 dB
- Cable type: fiber
- Fiber type: 9/125 µm
