Description

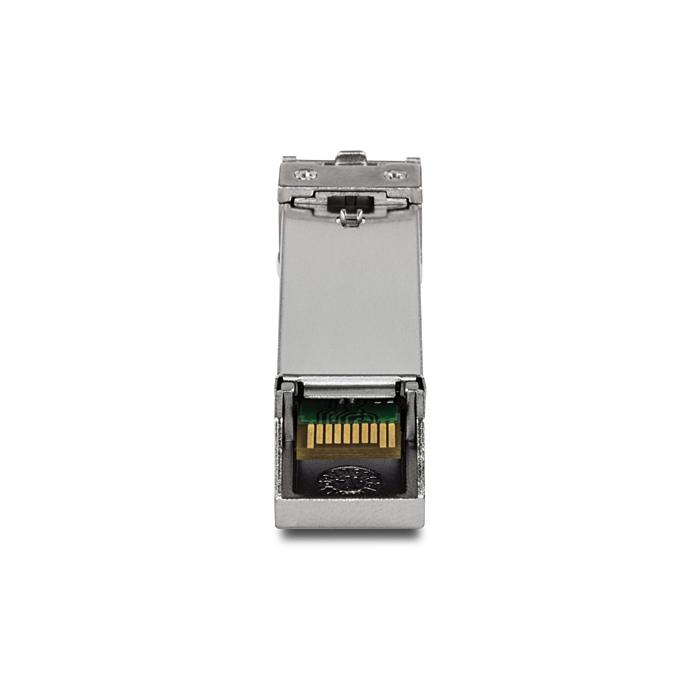

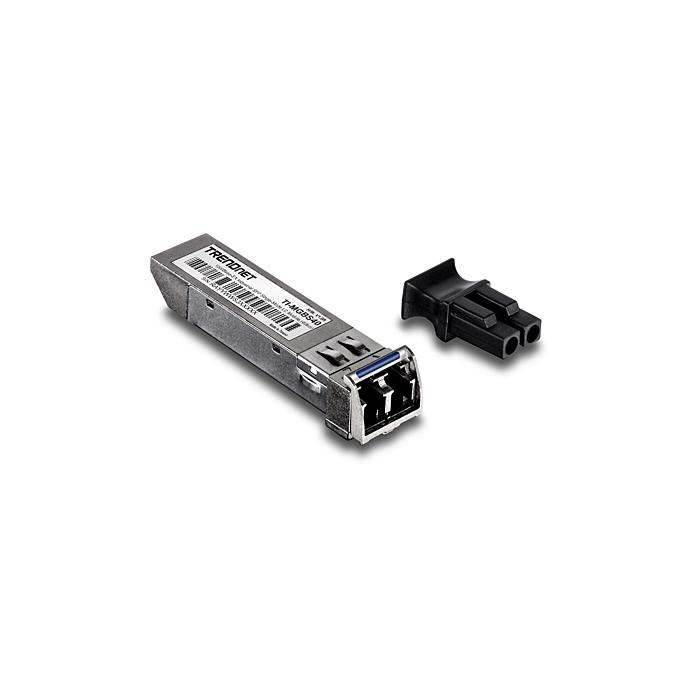

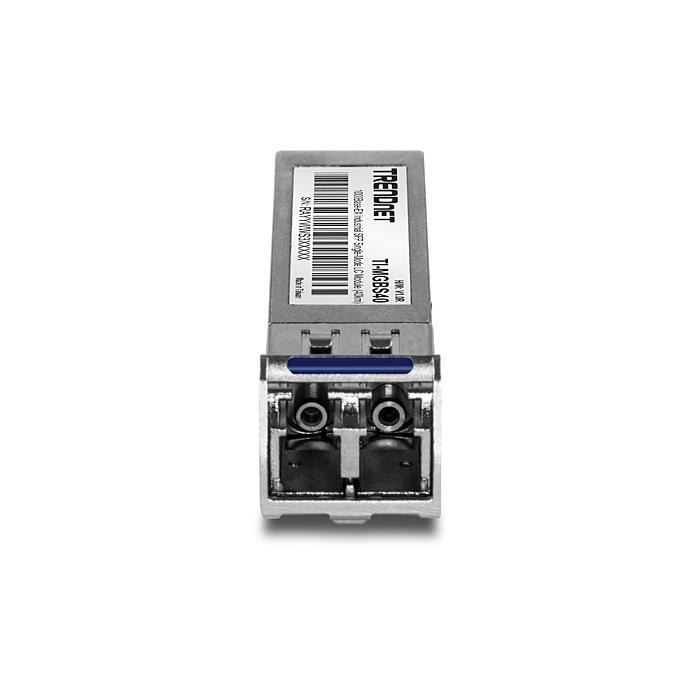

The Trendnet TI-MGBS40 SFP transceiver module is designed for single-mode fibre optic networks, with a transfer speed of 1250 Mbit/s and a wavelength of 1310 nm. Its SFP EX type interface includes an LC connector and a single fibre channel port, reaching a maximum distance of 40 kilometres with full duplex. Compatible with IEEE 802.3, 802.3u and 802.3z standards, its grey metal housing supports hot-plug and operates in a temperature range of -40 to 85 °C, with a power consumption of only 1 W.
Specifications
Performance
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 1250 Mbit/s
- Interface type: SFP
- Single-mode fiber (SMF) supported: Yes
- Fiber optic connector: LC
- SFP transceiver standard: EX
- Maximum transfer distance: 40000 m
- Wavelength: 1310 nm
- Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z
- Ethernet LAN (RJ-45) ports: 1
- Duplex system: Full
- Fiber ports quantity: 1
Features
- Product colour: Grey
- Housing material: Metal
- Hot-Plug support: Yes
Power
- Power consumption (typical): 1 W
Certificates
- Certification: MSA FCC CE
Operational conditions
- Operating temperature (T-T): -40 - 85 °C
Weight & dimensions
- Width: 13 mm
- Depth: 57 mm
- Height: 8.5 mm
- Weight: 19 g
Packaging content
- Quantity per pack: 1 pc(s)
Other features
- RX sensitivity: -23 dB
Logistics data
- Harmonized System (HS) code: 85369010
