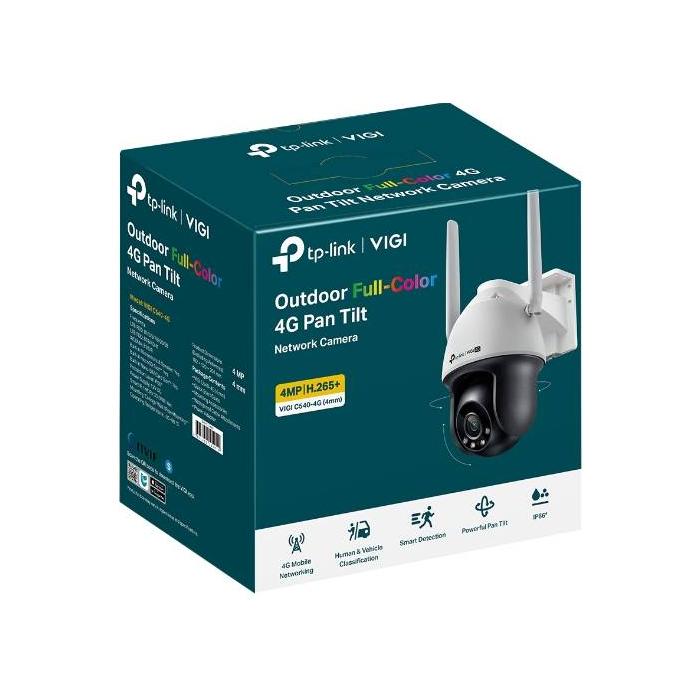

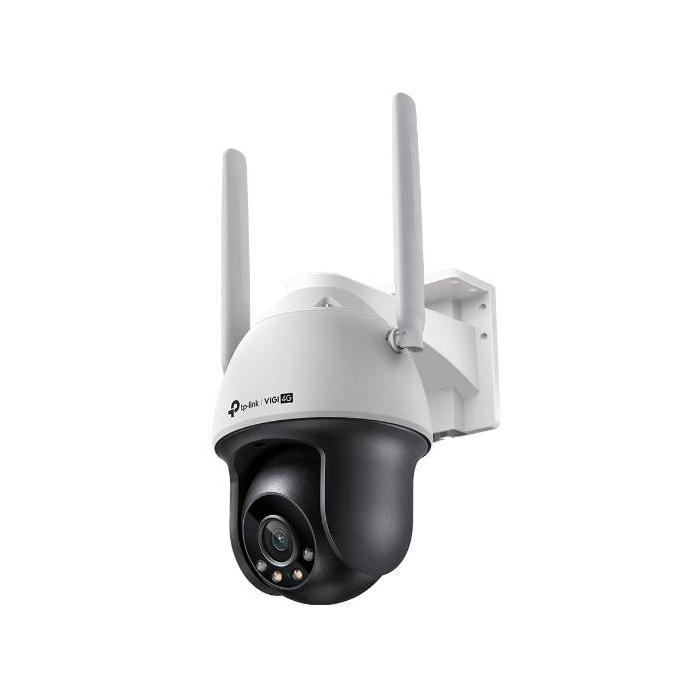

TP-Link VIGI C540-4G Turret IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/wall

$175.20
$175.20 without VAT

TP-Link VIGI C540-4G Turret IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/wall.   More info

Brand: TP-LINK
SKU: 106342 PRC: 525805 EAN: 4895252504910 PN: VIGI C540-4G(4MM)

Description

1/3.06'', CMOS, 4G, F1.6, 4mm

Specifications

Performance

  • Auto patrol mode: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Luminous flux: 0.005 lm
  • Certification: RCM, BSMI, VCCI, NTRA, KC
  • Type: IP security camera
  • Placement supported: Indoor & outdoor
  • Connectivity technology: Wired

Design

  • Form factor: Turret
  • Mounting type: Ceiling/wall
  • Product colour: Black, White
  • Housing material: Plastic
  • International Protection (IP) code: IP66

Camera

  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Lens viewing angle, horizontal: 80°
  • Lens viewing angle, vertical: 43°
  • Lens viewing angle, diagonal: 94°
  • Tilt angle range: 0 - 120°
  • Tilt speed: 44 °/sec
  • Pan range: 0 - 348°
  • Pan speed: 44 °/sec
  • Camera shutter speed: 1/3 - 1/10000 s
  • Number of Privacy masking areas: 4

Image sensor

  • Optical sensor size: 25.4 / 3.06 mm (1 / 3.06")
  • Sensor type: CMOS

Lens system

  • Zoom capability: Yes
  • Number of lenses: 1
  • Detect distance: 80 m
  • Observe distance: 33 m
  • Recognize distance: 16 m
  • Lens diameter: 4 mm
  • Maximum aperture number: 1.6
  • Identify distance: 8 m
  • Minimum aperture number: 1.6

Night vision

  • Night vision: Yes
  • Night vision distance: 30 m
  • LED type: IR/White
  • Number of illumination LEDs: 4

Video

  • Maximum resolution: 2560 x 1440 pixels
  • Total megapixels: 4 MP
  • Video compression formats: H.264, H.264+, H.265, H.265+
  • Supported graphics resolutions: 320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
  • Frame rate: 30 fps
  • Video streaming: Yes
  • Noise reduction: Yes
  • Noise reduction technology: 3D noise reduction
  • Image quality adjustment: Brightness, Contrast, Mirror, Saturation, Sharpness
  • Privacy masking: Yes
  • Bit rate control: Constant Bit Rate (CBR), Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
  • Bit rate: 256 Kbps - 4 Mbps
  • Digital Wide Dynamic Range (DWDR): Yes
  • 3D positioning: Yes

Audio

  • Built-in speaker(s): Yes
  • Sample rate: 8 kHz
  • Signal-to-Noise Ratio (SNR): 52 dB
  • Built-in microphone: Yes
  • Bit rate range: 64 - 64 Kbit/s

Network

  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
  • SIM card slot: Yes
  • SIM card type: NanoSIM
  • 4G standard: LTE-TDD & LTE-FDD
  • 3G standards: WCDMA
  • Live view: Yes
  • Number of simultaneous live view channels: 3 channels

Storage

  • Built-in HDD: No
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)
  • Maximum memory card size: 256 GB

Ports & interfaces

  • Ethernet LAN (RJ-45) ports: 1

Security

  • Password protection: Yes
  • IP address filtering: Yes
  • HTTPS encryption: Yes
  • Intelligent Video Surveillance (IVS) system features: Human detection
  • Mirror: Yes
  • Digest authentication: Yes

Management features

  • Reset button: Yes
  • Behavior analysis: Intrusion detection, Line crossing detection

Power

  • Power source type: DC
  • DC output voltage: 12

Operational conditions

  • Operating temperature (T-T): -30 - 60 °C
  • Storage temperature (T-T): -40 - 60 °C
  • Operating relative humidity (H-H): 0 - 95%
  • Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

  • Width: 120 mm
  • Depth: 182 mm
  • Height: 201 mm
  • Weight: 690 g

Features

  • Basic event: Motion Detection, Camera Tampering Detection, Exception

Packaging data

  • Package width: 163 mm
  • Package depth: 213 mm
  • Package height: 243 mm
  • Package weight: 1.16 kg

Sustainability

  • Compliance certificates: CE, RoHS

Packaging content

  • Number of cameras: 1
  • Mounting kit: Yes
