Description
The TP-Link VIGI C430 IP security camera comes in black and white and adopts a turret form factor with ceiling mounting. It incorporates a 1/2.8" CMOS sensor with progressive scanning and a minimum illumination of 0.005 lx, which allows it to capture images even in very low light. Its lens offers a horizontal viewing angle of 107.5°, vertical of 57.2° and diagonal of 128.7°, thus covering a wide surveillance area. Thanks to the day/night mode and the infrared cut filter, it maintains stable performance both day and night. The wide dynamic range (WDR) helps to balance areas with strong contrasts of light and shadow. Its plastic housing is designed to be placed both indoors and outdoors, with dimensions of 123 x 123 x 83 mm (width x height x depth). Connection is wired, which provides stable transmission.
Specifications
Performance
- Type: IP security camera
- Placement supported: Indoor & outdoor
- Connectivity technology: Wired
- Wide Dynamic Range (WDR): Yes
- Day/night mode: Yes
- Infrared (IR) cut-off filter: Yes
Design
- Form factor: Turret
- Mounting type: Ceiling
- Product colour: Black, White
- Housing material: Plastic
Camera
- Minimum illumination: 0.005 lx
- Lens viewing angle, horizontal: 107.5°
- Lens viewing angle, vertical: 57.2°
- Lens viewing angle, diagonal: 128.7°
Image sensor
- Number of sensors: 1
- Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
- Progressive scan: Yes
- Sensor type: CMOS
Lens system
- Number of lenses: 1
- Fixed focal length: 2.8 mm
Night vision
- Night vision: Yes
- Night vision distance: 30 m
Video
- Maximum resolution: 2304 x 1296 pixels
- Total megapixels: 3 MP
- Video compression formats: H.264, H.264+, H.265, H.265+
- Supported graphics resolutions: 320 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296
- Frame rate: 25 fps
- Image quality adjustment: Brightness, Contrast, Mirror, Saturation
- Privacy masking: Yes
- Bit rate: 64 Kbps - 4 Mbps
- Back Light Compensation (BLC): Yes
- Highlight Compensation (HLC): Yes
- Digital Wide Dynamic Range (DWDR): Yes
- Region of Interest (ROI) encoding: Yes
- Smart IR: Yes
- 3D positioning: Yes
Audio
- Built-in microphone: Yes
Network
- Ethernet LAN: Yes
- Networking standards: IEEE 802.3af, IEEE 802.3at
- Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
- Wi-Fi: No
- Bluetooth: No
- Live view: Yes
- Number of simultaneous live view channels: 3 channels
Storage
- Built-in HDD: No
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
Security
- Password protection: Yes
- Video motion detection: Yes
- Active tampering alarm: Yes
- IP address filtering: Yes
- HTTPS encryption: Yes
- Intelligent Video Surveillance (IVS) system features: Human detection, Vehicle detection
- Mirror: Yes
- Password reset via email: Yes
- Human and vehicle targets classification: Yes
- Digest authentication: Yes
Management features
- Behavior analysis: Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection
Power
- Power source type: DC, PoE
- Power consumption (max): 4.2 W
Operational conditions
- Operating temperature (T-T): -30 - 60 °C
Weight & dimensions
- Width: 123 mm
- Depth: 83 mm
- Height: 123 mm
Sustainability
- Sustainability compliance: Yes
- Compliance certificates: BSMI, CE

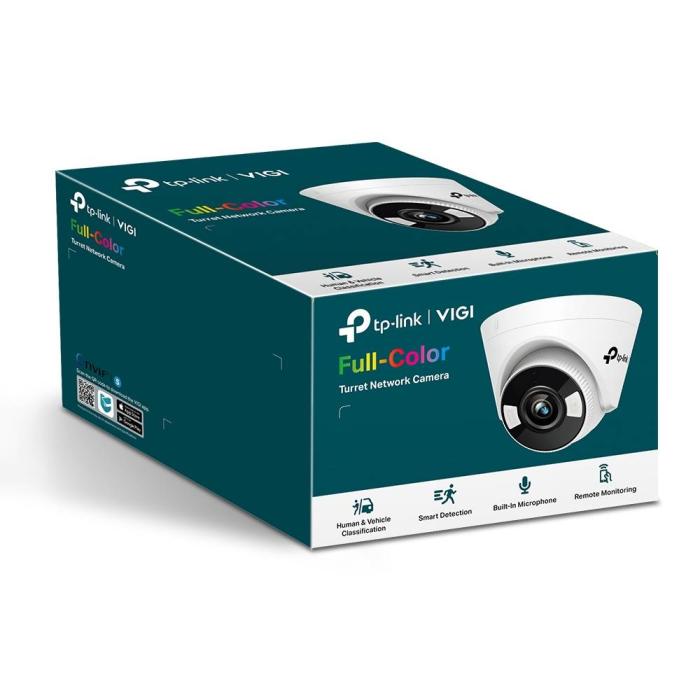

Packaging content
- Number of cameras: 1
- Mounting kit: Yes
- Manual: Yes
