Description

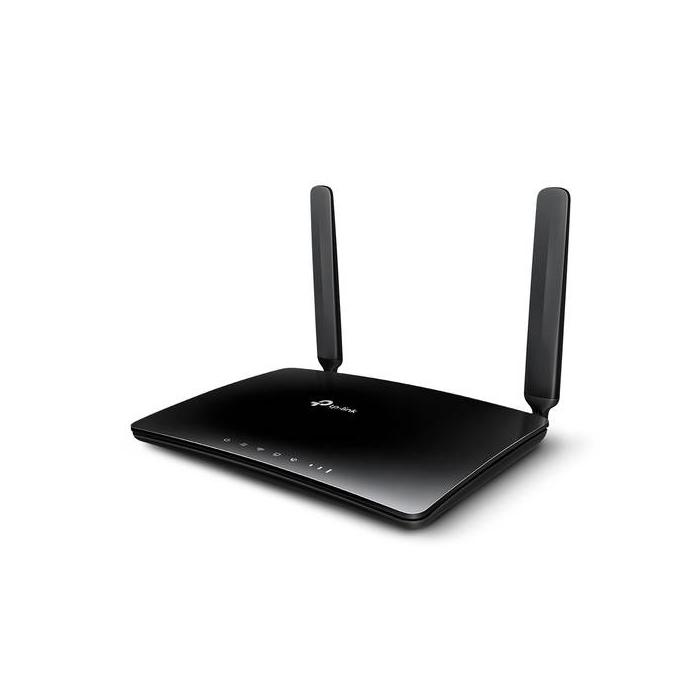

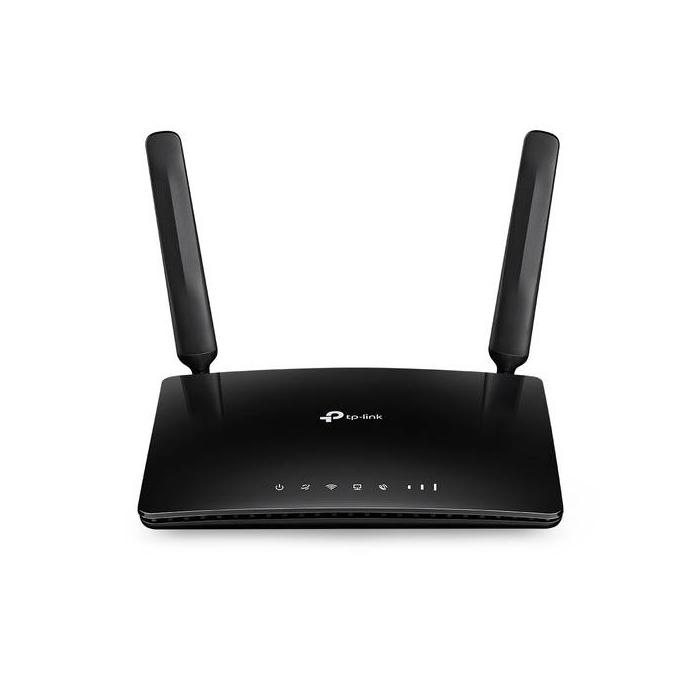

The TP-Link TL-MR6500v router in black combines 4G mobile connectivity with a wired or Wi-Fi home network. Its SIM card slot and compatibility with 3G/4G USB modems allow an internet connection to be established in locations without fibre or ADSL. It also includes an RJ-45 WAN port for use with a conventional Ethernet router or modem, offering flexibility in the type of network. On the 2.4 GHz band it reaches a transfer rate of up to 300 Mbit/s, sufficient for browsing and streaming on several devices. It supports 802.11a/b/g/n standards and allows a guest network to be created to separate the main traffic. For advanced users, it features port forwarding, port triggering, static routes and a VPN server with support for PPTP and OpenVPN, as well as 10 VPN tunnels.
Specifications
WAN connection
- Ethernet WAN: Yes
- DSL WAN: No
- SIM card slot: Yes
- 3G/4G USB modem compatibility: Yes
- WAN connection type: RJ-45
Wireless LAN features
- Wi-Fi band: Single-band (2.4 GHz)
- Top Wi-Fi standard: Wi-Fi 4 (802.11n)
- WLAN data transfer rate (max): 300 Mbit/s
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
- WLAN data transfer rate (first band): 300 Mbit/s
Network
- Ethernet LAN: Yes
- Ethernet LAN interface type: Fast Ethernet
- Ethernet LAN data rates: 10, 100 Mbit/s
- Cabling technology: 10/100Base-T(X)
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Port forwarding: Yes
- Port triggering: Yes
- Dynamic DNS (DDNS): Yes
- Static route: Yes
- Number of guest networks (2.4 GHz): 1
- VPN server: PPTP VPN, OpenVPN
- VPN tunnels quantity: 10
- VPN Passthrough: Yes
Mobile network
- Mobile network generation: 4G
- 3G: Yes
- 4G: Yes
- Dual SIM support: No
- 3G standards: DC-HSPA+, HSPA, HSPA+, UMTS
- 4G standard: LTE-TDD & LTE-FDD
- UMTS bands supported: 900, 2100 MHz
- 4G bands supported: 800, 900, 1800, 2100, 2300, 2500, 2600 MHz
- SIM card type: MicroSIM

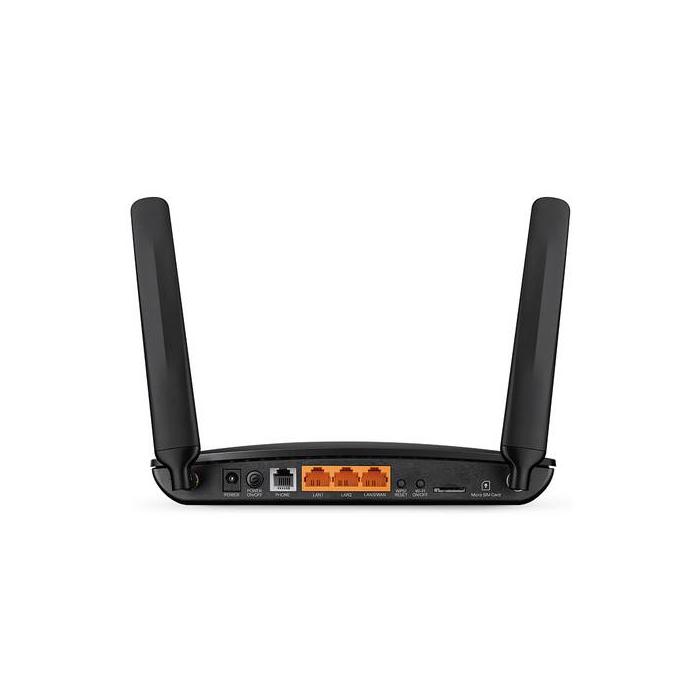

Ports & interfaces
- Ethernet LAN (RJ-45) ports: 2
- USB port: No
- RJ-11 ports quantity: 1
- Memory card slot(s): No
- DC-in jack: Yes
Management features
- Wi-Fi Multimedia (WMM)/(WME): Yes
- Quality of Service (QoS) support: Yes
- Reset button: Yes
- WPS push button: Yes
Security
- Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
- Firewall: Yes
- Firewall security: : DoS, SPI Firewall, IP and MAC Address Binding
- Guest access: Yes
- Parental control: Yes
- DMZ support: Yes
Protocols
- DHCP client: Yes
- DHCP server: Yes
- Universal Plug and Play (UPnP): Yes
- VoIP protocols: SIP(RFC3261)/RTP(RFC1889/3550), G.711A/u, G.729AB, G.726
Design
- Product colour: Black
- Wall mountable: Yes
- On/off switch: Yes
- Product type: Tabletop router
Packaging content
- Cables included: LAN (RJ-45)
- AC adapter included: Yes
- Quick installation guide: Yes
Antenna
- Antenna design: External
- Antennas quantity: 2
- Detachable antenna(s): Yes
Power
- Power source type: DC
- Output voltage: 12 V
- Output current: 1 A
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 202 mm
- Depth: 141 mm
- Height: 33.6 mm
Packaging data
- Package width: 307 mm
- Package depth: 223 mm
- Package height: 70 mm
- Package weight: 640 g
Logistics data
- Harmonized System (HS) code: 85176990
