Description

Specifications

WAN connection


  • Ethernet WAN: Yes
  • SIM card slot: Yes
  • 3G/4G USB modem compatibility: Yes
  • WAN connection type: RJ-45

Wireless LAN features


  • Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
  • Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
  • WLAN data transfer rate (max): 867 Mbit/s
  • Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
  • WLAN data transfer rate (first band): 867 Mbit/s
  • WLAN data transfer rate (second band): 300 Mbit/s

Network


  • Ethernet LAN: Yes
  • Ethernet LAN interface type: Gigabit Ethernet
  • Ethernet LAN data rates: 10, 100, 1000 Mbit/s
  • Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
  • Dynamic DNS (DDNS): Yes
  • Number of guest networks (2.4 GHz): 1
  • Number of guest networks (5 GHz): 1
  • VPN support: PPTP VPN, IPSec VPN , OpenVPN
  • Receiver sensitivity: 5 GHz: 11a 54M: -74 dBm 11ac HT20: -66 dBm 11ac HT40: -63 dBm 11ac HT80 : -59 dBm 11n HT20: -73 dBm 11n HT40: -70 dBm 2.4 GHz: 1

Mobile network


  • 3G bands supported: 850, 900, 2100 MHz
  • Mobile network generation: 4G
  • Dual SIM support: No
  • 3G standards: HSPA, HSPA+, UMTS
  • 4G standard: LTE
  • 4G bands supported: 700, 800, 850, 900, 1800, 2100, 2300, 2500, 2600 MHz
  • SIM card type: MicroSIM

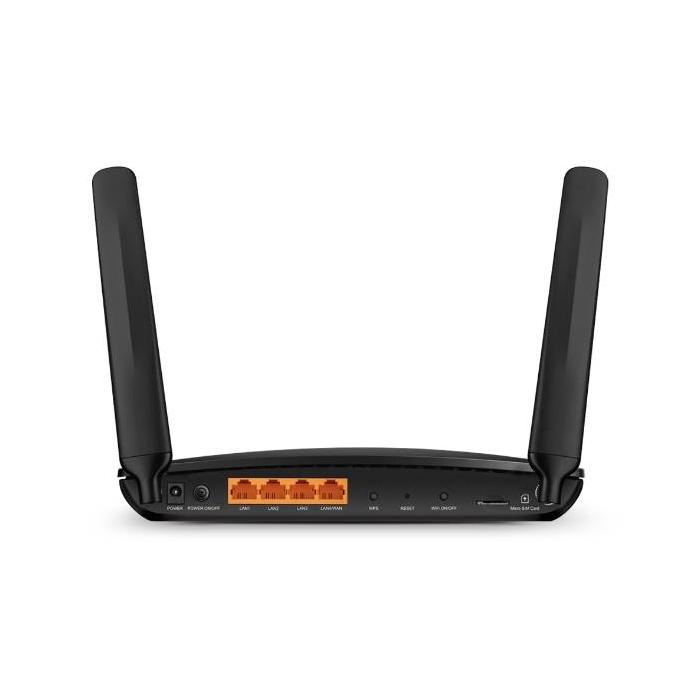

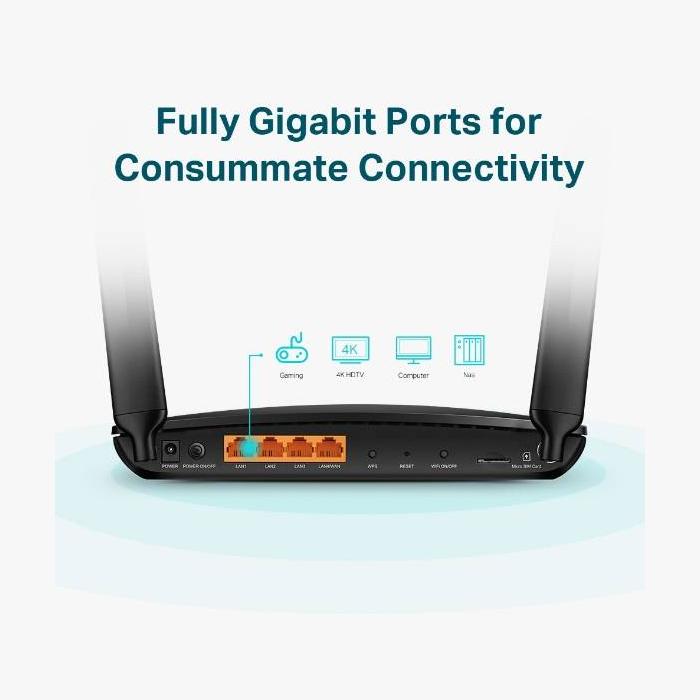

Ports & interfaces


  • Ethernet LAN (RJ-45) ports: 4
  • USB port: No
  • Memory card slot(s): Yes
  • DC-in jack: Yes

Management features


  • Wi-Fi Multimedia (WMM)/(WME): Yes
  • Quality of Service (QoS) support: No
  • Reset button: Yes
  • WPS push button: Yes

Security


  • Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
  • Firewall: Yes
  • Firewall security: Domain Filter, IP, MAC Address Binding
  • Guest access: Yes
  • Stateful Packet Inspection (SPI): Yes
  • DoS attack prevention: Yes
  • Parental control: Yes
  • Filtering: Yes
  • URL filtering: Yes
  • DMZ support: Yes

Protocols


  • DHCP client: Yes
  • DHCP server: Yes
  • Universal Plug and Play (UPnP): Yes
  • Routing protocols: IP
  • Supported network protocols: IPv4, IPv6

Design


  • Product colour: Black
  • LED indicators: LAN, Power, WLAN
  • Product type: Tabletop router

Packaging content


  • Cables included: LAN (RJ-45)
  • AC adapter included: Yes
  • Quick installation guide: Yes

Antenna


  • Antenna design: External
  • Antennas quantity: 2
  • Detachable antenna(s): Yes

Power


  • Power source type: AC, DC
  • AC input voltage: 110 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Output voltage: 12 V
  • Output current: 1.5 A

Operational conditions


  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%

System requirements


  • Windows operating systems supported: Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP, Yes
  • Linux operating systems supported: Yes
  • Mac operating systems supported: Yes

Weight & dimensions


  • Width: 229 mm
  • Depth: 160 mm
  • Height: 37 mm

Packaging data


  • Package width: 307 mm
  • Package depth: 223 mm
  • Package height: 70 mm
  • Package weight: 810 g
  • Package type: Box
  • Number of products included: 1 pc(s)
