Description

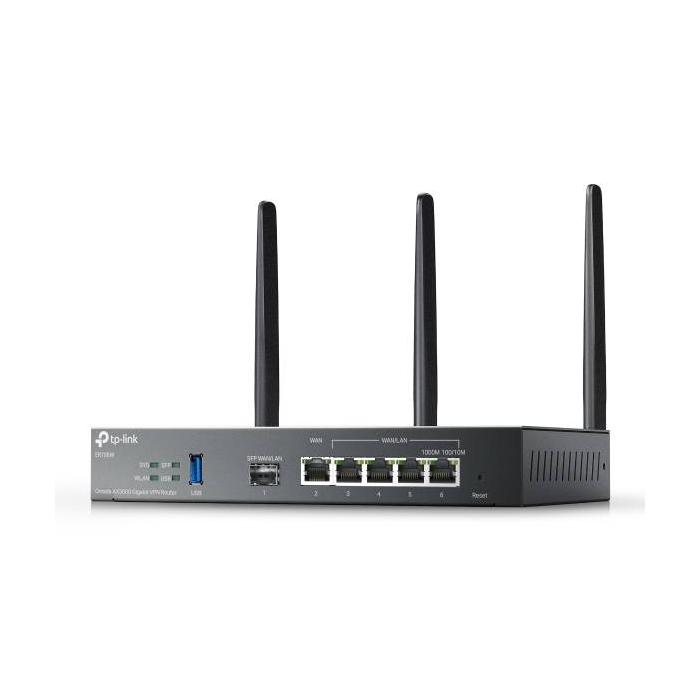

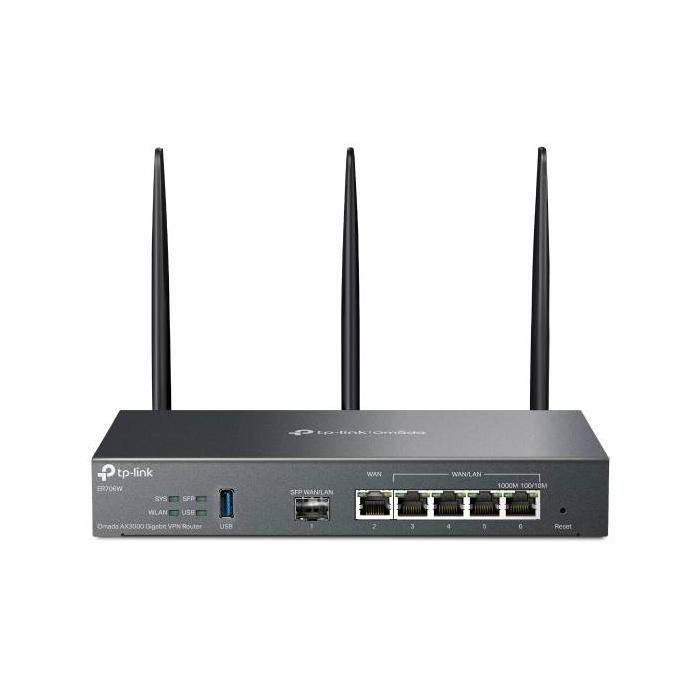

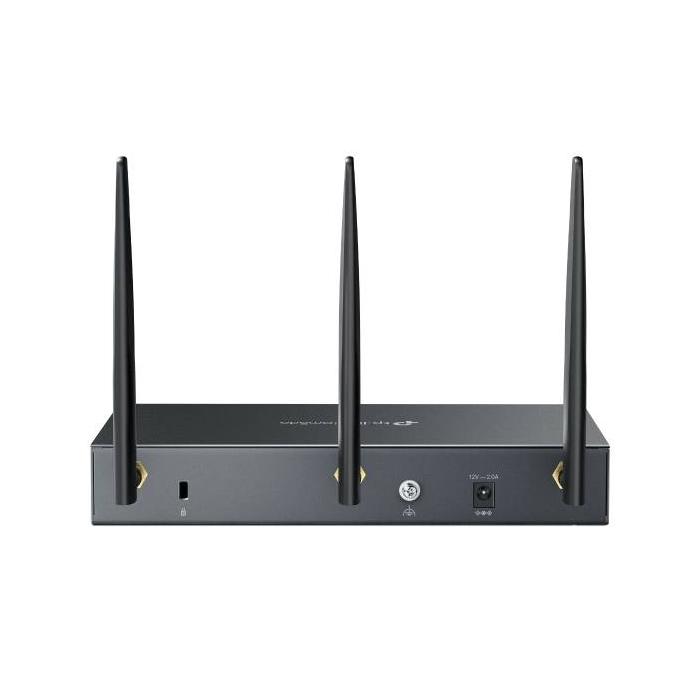

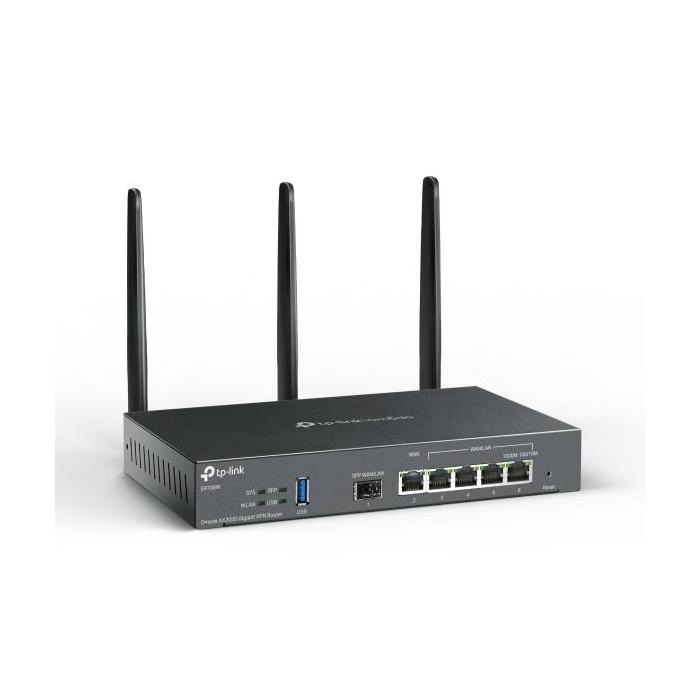

The TP-Link Omada ER706W router, in black, combines Gigabit Ethernet connectivity with dual-band Wi-Fi (2.4 GHz and 5 GHz) to achieve a maximum transfer rate of 3000 Mbit/s, split into 574 Mbit/s and 2402 Mbit/s per band. Its WAN connection type SFP is complemented by Ethernet WAN, and it is also compatible with a USB 3G/4G modem, expanding internet access options. It incorporates network features such as port forwarding, port triggering, dynamic DNS, and support for 50 VPN tunnels, making it a versatile solution for managing secure connections. With 10/100/1000Base-T(X) cabling technology and speeds of 10, 100, and 1000 Mbit/s on its Ethernet ports, this device ensures stable integration in demanding network environments.
Specifications
WAN connection
- Ethernet WAN: Yes
- DSL WAN: No
- SIM card slot: No
- 3G/4G USB modem compatibility: Yes
- WAN connection type: SFP
Wireless LAN features
- Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
- WLAN data transfer rate (max): 3000 Mbit/s
- WLAN data transfer rate (first band): 574 Mbit/s
- WLAN data transfer rate (second band): 2402 Mbit/s
Network
- Ethernet LAN: Yes
- Ethernet LAN interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Cabling technology: 10/100/1000Base-T(X)
- Port forwarding: Yes
- Port triggering: Yes
- Dynamic DNS (DDNS): Yes
- VPN tunnels quantity: 50
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 4
- USB port: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
- DC-in jack: Yes
Management features
- Web-based management: Yes
- Reset button: Yes
- MU-MIMO technology: Yes
- MIMO: Yes
Security
- Security algorithms: WPA, WPA2, WPA3-Enterprise
- Guest access: Yes
- Access Control List (ACL): Yes
- Schedule access: Yes
- Filtering: Yes
- URL filtering: Yes
- System event log: Yes
- DMZ support: Yes
- Network address translation (NAT): Yes
Protocols
- DHCP server: Yes
- Universal Plug and Play (UPnP): Yes
- Routing protocols: OSPF, RIP
Design
- Product colour: Black
- Wall mountable: Yes
- LED indicators: System, USB, WAN, WLAN
- Product type: Desktop/pole router
Certificates
- Certification: CE, FCC, RoHS
Packaging content
- AC adapter included: Yes
- Manual: Yes
Antenna
- Antenna design: External
- Antenna gain level (max): 4.5 dBi
- Antennas quantity: 3
Features
- Internal memory: 512 MB
- Internal memory type: DDR4
- Flash memory: 128 MB
Power
- Power source type: DC
- Output voltage: 12 V
- Output current: 2 A
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 226 mm
- Depth: 131 mm
- Height: 35 mm
