Description

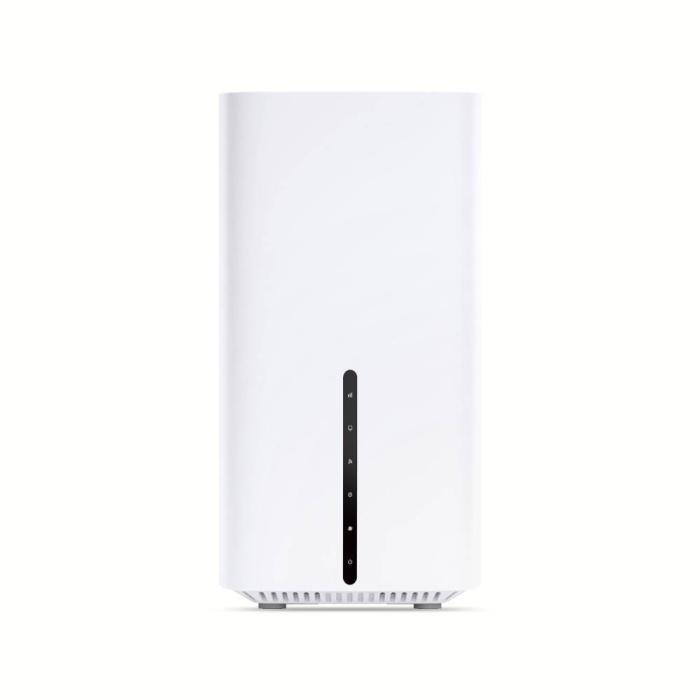

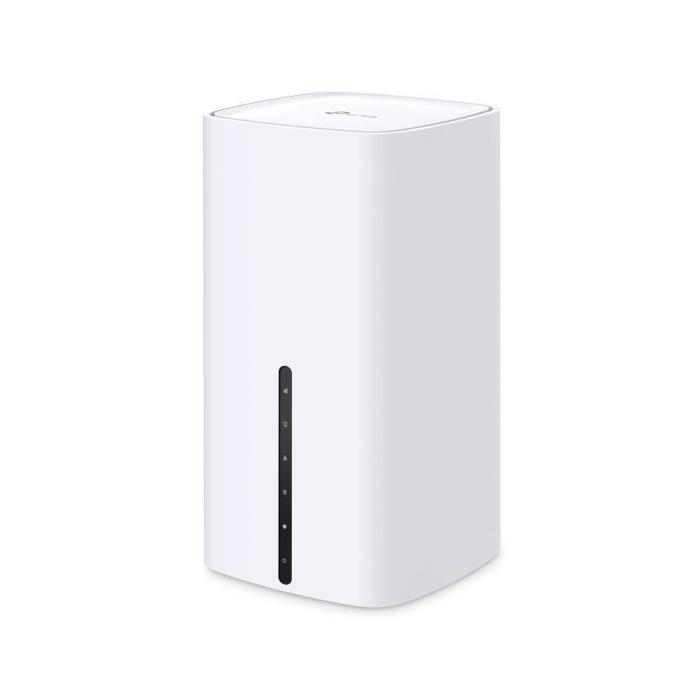

The TP-Link Archer NX200 router comes in white and combines mobile and wired connectivity with Gigabit Ethernet. Its SIM card slot allows access to 5G networks, while the RJ-45 WAN connection and Ethernet support complete the internet access options. In the wireless section it offers dual-band 2.4 GHz and 5 GHz with Wi-Fi 6 (802.11ax) standard and 1024-QAM modulation, reaching a transfer rate of up to 1201 Mbit/s, with 574 Mbit/s on the first band and 1201 Mbit/s on the second. It is compatible with the 802.11a, 802.11b, 802.11g, Wi-Fi 4, Wi-Fi 5 and Wi-Fi 6 standards. It includes dynamic DNS, support for PPTP, IPSec and OpenVPN VPN, as well as a guest network on each band and a port triggering function. Its Ethernet LAN ports handle speeds of 10, 100 and 1000 Mbit/s. Its dimensions are 99 x 190 x 99 mm (width x height x depth), a compact format to place in any room.
Specifications
WAN connection
- Ethernet WAN: Yes
- SIM card slot: Yes
- 3G/4G USB modem compatibility: No
- WAN connection type: RJ-45
Wireless LAN features
- Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- WLAN data transfer rate (max): 1201 Mbit/s
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- WLAN data transfer rate (first band): 574 Mbit/s
- WLAN data transfer rate (second band): 1201 Mbit/s
- Modulation: 1024-QAM
Network
- Ethernet LAN: Yes
- Ethernet LAN interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Port triggering: Yes
- Dynamic DNS (DDNS): Yes
- Number of guest networks (2.4 GHz): 1
- Number of guest networks (5 GHz): 1
- VPN support: PPTP VPN, IPSec VPN , OpenVPN
Mobile network
- Mobile network generation: 5G
- 3G standards: DC-HSDPA, HSPA, HSPA+, UMTS
- 4G standard: LTE-TDD & LTE-FDD
- 5G bands supported: 700, 800, 850, 900, 1800, 2100, 2300, 2500, 2600, 3500, 3700 MHz
- UMTS bands supported: 850, 900, 2100 MHz
- 4G bands supported: 700, 800, 850, 900, 1500, 1800, 2100, 2300, 2500, 2600, 3500, 3700 MHz
- SIM card type: NanoSIM

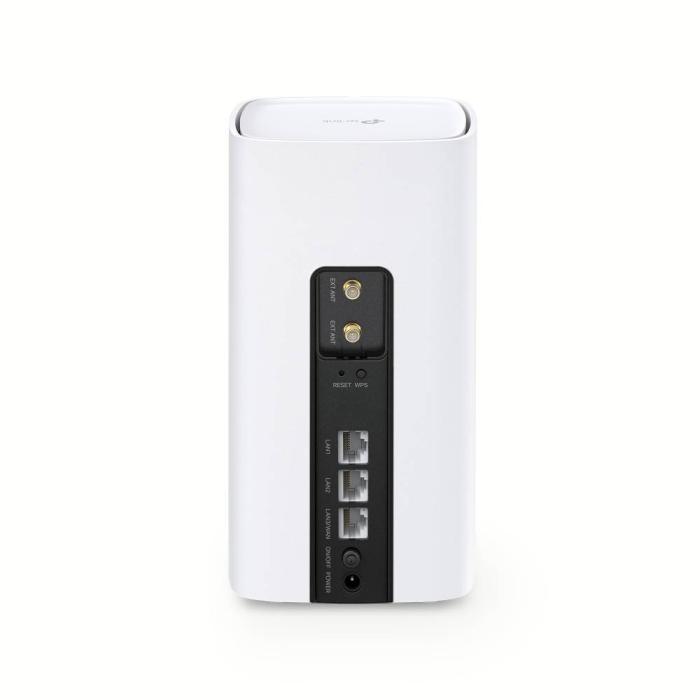

Ports & interfaces
- Ethernet LAN (RJ-45) ports: 3
- USB port: No
Management features
- Quality of Service (QoS) support: Yes
- Reset button: Yes
- WPS push button: Yes
- MU-MIMO technology: Yes
- Wi-Fi Multimedia (WMM)/(WME): Yes
Security
- Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
- Firewall: Yes
- Firewall security: IPv4 SPI Firewall, IPv6 Firewal
- Access Control List (ACL): Yes
- DoS attack prevention: Yes
- Parental control: Yes
- DMZ support: Yes
Protocols
- DHCP client: Yes
- DHCP server: Yes
- Supported network protocols: IPv4, IPv6
Design
- Product colour: White
- On/off switch: Yes
- Product type: Tabletop router
Certificates
- Compliance certificates: CE, RoHS
Packaging content
- Cables included: LAN (RJ-45)
- AC adapter included: Yes
- Quick installation guide: Yes
Antenna
- Antenna design: Internal
- Antennas quantity: 10
- Detachable antenna(s): Yes
Power
- Power source type: AC
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Output voltage: 12 V
- Output current: 2 A
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
System requirements
- Browser supported: Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
- Windows operating systems supported: Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
- Linux operating systems supported: Yes
- Mac operating systems supported: Yes
Weight & dimensions
- Width: 99 mm
- Depth: 99 mm
- Height: 190 mm
