Description
The TP-Link TL-WA801ND access point is a network device that operates in the 2.4 GHz band with a maximum data transfer rate of 300 Mbit/s. Compatible with the IEEE 802.11b, IEEE 802.11g and IEEE 802.11n standards, it offers an Ethernet LAN connection with a speed of 10, 100 Mbit/s and 10/100Base-T(X) cabling technology. It features one Ethernet LAN port (RJ-45) and an Ethernet WAN connection (RJ-45), as well as support for quality of service (QoS) and Wi-Fi Multimedia (WMM). It incorporates security algorithms such as 64, 128 and 152-bit WEP, WPA and WPA-PSK, along with MAC address filtering, and allows management via SNMP. Its dimensions are 181 x 36 x 125 mm (width x height x depth) and its output power is 9VDC / 0.85A. It is a suitable solution for extending the coverage of an existing wired network via a wireless connection in the 2.4 - 2.4835 GHz band.
Specifications
Features
- 2.4 GHz: Yes
- 5 GHz: No
- 6 GHz: No
- Maximum data transfer rate: 300 Mbit/s
- Maximum data transfer rate (2.4 GHz): 300 Mbit/s
- Ethernet LAN data rates: 10, 100 Mbit/s
- Frequency band: 2.4 - 2.4835 GHz
- Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Cabling technology: 10/100Base-T(X)
- Modulation: 16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM
- Wi-Fi Multimedia (WMM)/(WME): Yes
- Quality of Service (QoS) support: Yes
- Receiver sensitivity: 270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1
Security
- Security algorithms: 128-bit WEP, 152-bit WEP, 64-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
- MAC address filtering: Yes
Protocols
- Management protocols: SNMP

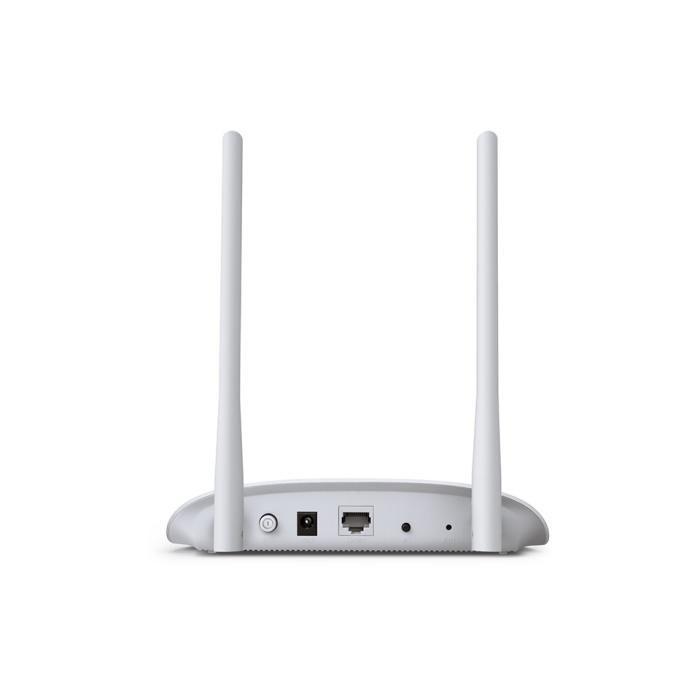

Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- WAN connection: Ethernet (RJ-45)
Power
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) type supported: Passive PoE
- Output voltage: 9 V
- Output current: 0.6 A
- Output power description: 9VDC / 0.85A
Design
- Placement: Table
- Reset button: Yes
- LED indicators: Yes
- Internal: No
Antenna
- Antenna type: External
- Antenna direction type: Omni-directional
- Antenna features: Detachable antenna
- Antennas quantity: 2
- Antenna gain level (max): 5 dBi
- Antenna connector type: RP-SMA
Performance
- Compatible operating systems: Windows 98SE, NT, 2000, XP, Vista, 7 MAC OS NetWare UNIX Linux
Certificates
- Certification: CE, FCC, RoHS
Weight & dimensions
- Width: 181 mm
- Depth: 125 mm
- Height: 36 mm
Packaging data
- Package width: 310 mm
- Package depth: 223 mm
- Package height: 70 mm
- Package weight: 600 g
Packaging content
- AC adapter included: Yes
Other features
- Transmit power range: 0 - 20 dBmW
Operational conditions
- Operating relative humidity (H-H): 10 - 90%
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Storage relative humidity (H-H): 5 - 90%
