Description

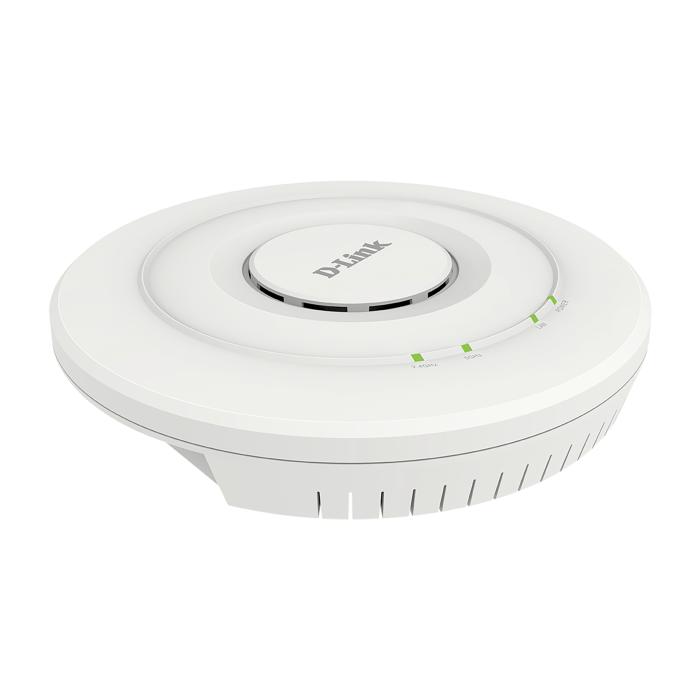

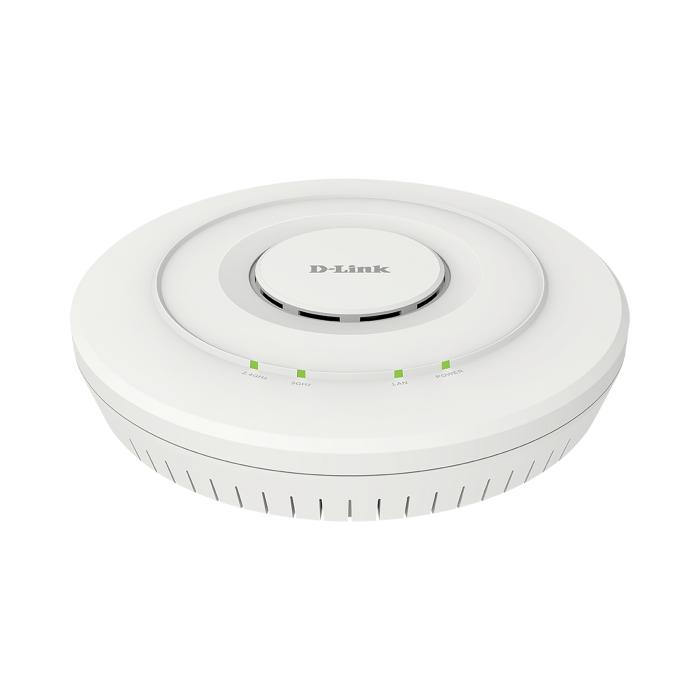

D-Link DWL-6610AP wireless access point with 1200 Mbit/s capacity and Power over Ethernet (PoE) support, designed for Ethernet LAN networks with transfer speeds of 10, 100, and 1000 Mbit/s. Operates on the 2.4 GHz and 5 GHz bands, and includes Quality of Service (QoS) functions and VLAN support. Its security covers MAC address filtering and algorithms such as AES, HTTPS, SSH, TKIP, WPA, and WPA2, while its management is performed via web administration and SNMP protocols. With one RJ-45 Ethernet port, DC input with a 12 V output voltage, 2 A current, and maximum power consumption of 16.6 W, plus an integrated power switch and reset button.
Specifications
Features
- 2.4 GHz: Yes
- 5 GHz: Yes
- Maximum data transfer rate: 1200 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE
- VLAN support: Yes
- Quality of Service (QoS) support: Yes
Security
- Security algorithms: AES, HTTPS, SSH, TKIP, WPA, WPA2
- MAC address filtering: Yes
Protocols
- Management protocols: SNMP
Management features
- Web-based management: Yes

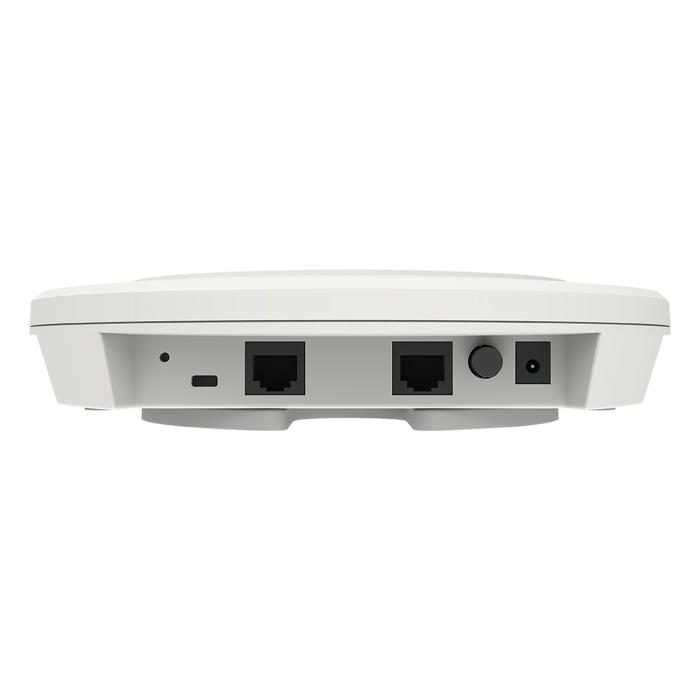

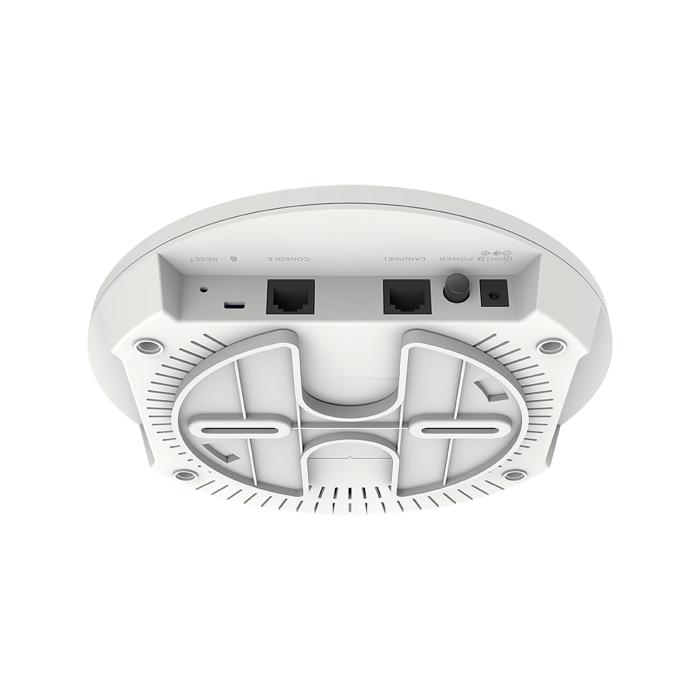

Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- DC-in jack: Yes
Power
- Power over Ethernet (PoE): Yes
- Output voltage: 12 V
- Output current: 2 A
- Power consumption (max): 16.6 W
Design
- Housing material: Plastic
- On/off switch: Yes
- Reset button: Yes
Antenna
- Antenna gain level (max): 6.5 dBi
Technical details
- Shipping (inner) case length: 56.5 cm
- Shipping (inner) case width: 34.3 cm
- Shipping (inner) case height: 27.5 cm
- Shipping (inner) case net weight: 6.39 kg
- Products per shipping (inner) case: 6 pc(s)
- Pallet gross weight (air): 200.6 kg
- Master (outer) cases per pallet (air): 24 pc(s)
- Products per pallet (air): 144 pc(s)
- Pallet gross length: 110 cm
- Pallet gross width: 120 cm
- Pallet height (air): 123.5 cm
- Pallet gross weight (sea): 332.5 kg
- Master (outer) cases per pallet (sea): 42 pc(s)
- Products per pallet (sea): 252 pc(s)
- Pallet height (sea): 2.06 m
- Shipping (inner) case gross weight: 7.3 kg
Certificates
- Certification: CE EN 301 893 V1.7.1 (2012-06) (DFS/TPC) EN 300 328 V1.8.1 (2012-06) FCC IC cUL LVD UL2043 C-Tick BSMI NCC
Weight & dimensions
- Width: 158.8 mm
- Depth: 158.8 mm
- Height: 69.4 mm
- Weight: 500 g
Packaging data
- Package width: 243 mm
- Package depth: 235 mm
- Package height: 90 mm
- Package weight: 1.06 kg
Operational conditions
- Operating relative humidity (H-H): 10 - 90%
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 65 °C
Logistics data
- Harmonized System (HS) code: 85176990
