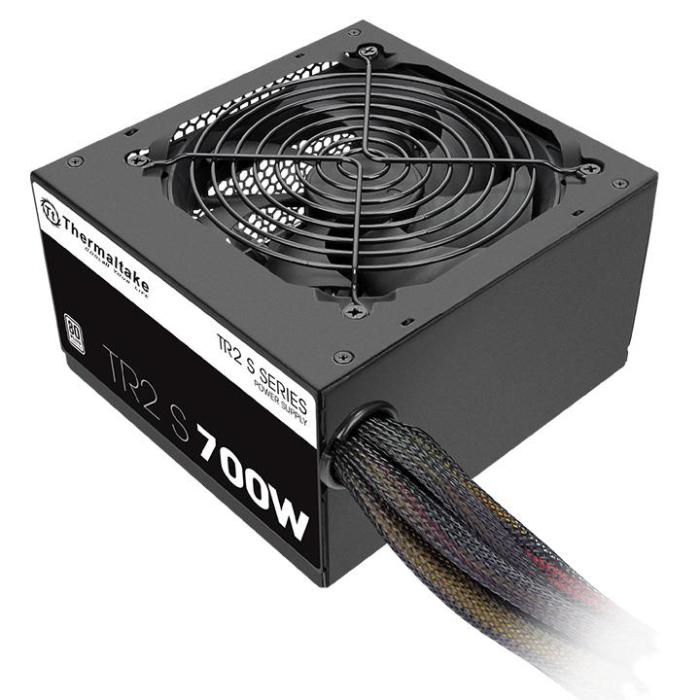

Thermaltake TRS-700AH2NK power supply unit 700 W 20+4 pin ATX ATX Black
More info
Brand: THERMALTAKE
48.67 €Stock available: 0 units.
Unavailable
SKU:
76936
PRC:
124038
EAN:
4717964401908
PN:
PS-TRS-0700NPCWEU-2
Description
The Thermaltake TRS-700AH2NK power supply, in black and with an ATX form factor, delivers a total power output of 700 W and uses a 20+4 pin ATX power connector. It incorporates active PFC, with an efficiency of 86% and an input current of 9 A at 230 V, providing a combined power of 648 W on the +12 V rail (54 A). Its outputs include up to 24 A on +3.3 V and 17 A on +5 V, with a hold-up time of 16 ms and an input frequency of 50-60 Hz. This unit is suitable for systems requiring a stable supply, with protection against voltage variations and a design intended for easy installation.
Specifications
Power
- Total power: 700 W
- AC input voltage: 230 V
- AC input frequency: 50 - 60 Hz
- Input current: 9 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 120 W
- Combined power (+12V): 648 W
- Combined power (+5V): 120 W
- Combined power (-12V): 6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 24 A
- Max output current (+12V): 54 A
- Max output current (+5V): 17 A
- Max output current (-12V): 0.5 A
- Max output current (+5Vsb): 2.5 A
- Hold time: 16 ms
- Efficiency: 86%
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Number of SATA power connectors: 6
- Peripheral (Molex) power connectors (4-pin): 5
- PCI Express power connectors (6+2 pin): 2
- CPU power connector (4+4 pin): Yes
- ATX power connector (20+4 pin): Yes
- Floppy disk drive connector: Yes
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.3
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan speed: 1800
- Fan location: Top
Operational conditions
- Operating temperature (T-T): 5 - 40 °C
- Storage temperature (T-T): -40 - 55 °C
- Operating relative humidity (H-H): 20 - 85%
- Storage relative humidity (H-H): 10 - 95%
Certificates
- Certification: CE/CB/TUV
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
Packaging data
- Package type: Box
Logistics data
- Harmonized System (HS) code: 84733020
