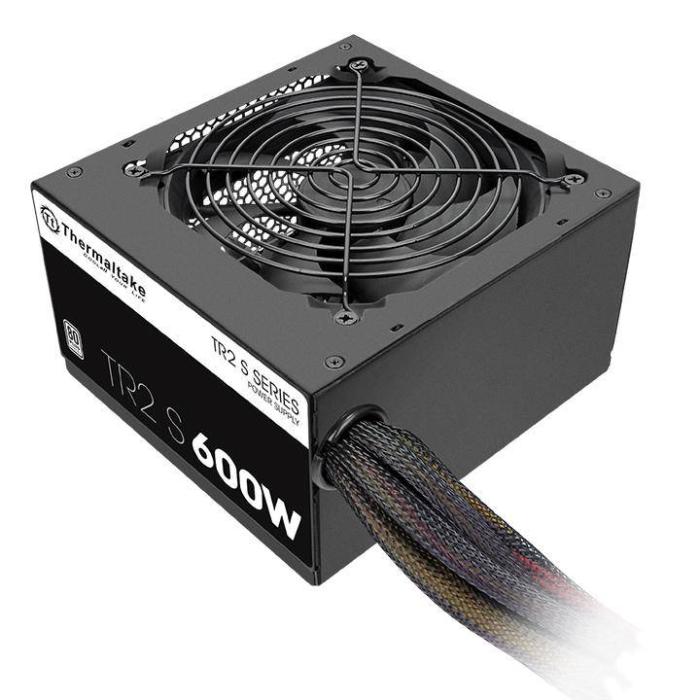

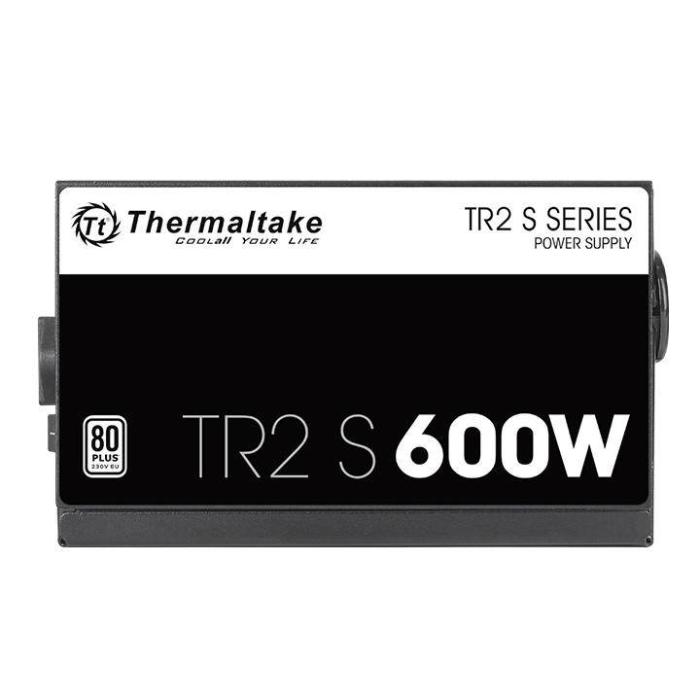

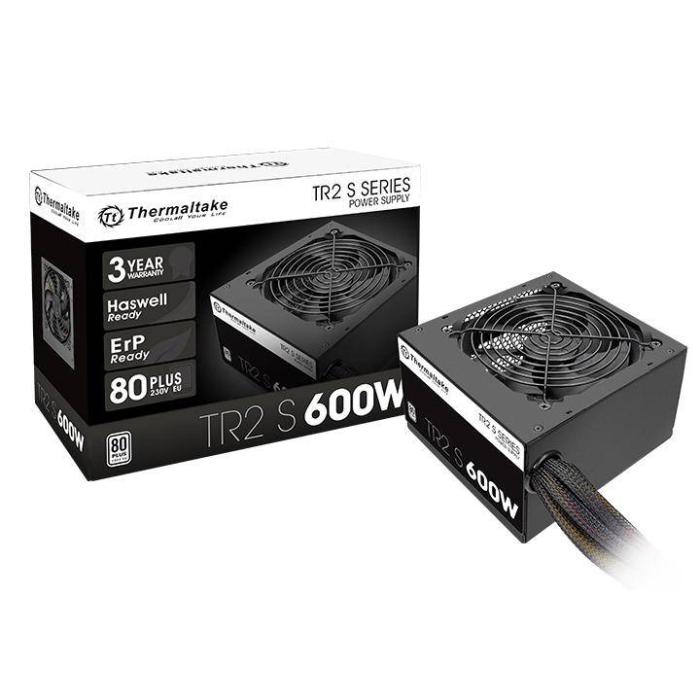

Thermaltake TRS-600AH2NK power supply unit 600 W 20+4 pin ATX ATX Black
More info
Brand: THERMALTAKE
64.00 €Stock available: 0 units.
Unavailable
SKU:
79817
PRC:
182711
EAN:
4717964401892
PN:
PS-TRS-0600NPCWEU-2
Description
Thermaltake TRS-600AH2NK 600 W power supply, ATX form factor and black finish, designed for desktop systems requiring stable power delivery. It provides a total output of 600 W with 86% efficiency, and its active power factor correction optimises consumption. The +12 V rail delivers up to 42 A and a combined power of 504 W, while the +5 V and +3.3 V outputs each contribute 105 W, covering the needs of current components. The main 20+4 pin connector ensures compatibility with ATX motherboards, and the Power Good signal delay margin of 100 to 500 ms contributes to an orderly system startup.
Specifications
Power
- Total power: 600 W
- AC input voltage: 230 V
- AC input frequency: 50 - 60 Hz
- Input current: 8 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 105 W
- Combined power (+12V): 504 W
- Combined power (+5V): 105 W
- Combined power (-12V): 6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 22 A
- Max output current (+12V): 42 A
- Max output current (+5V): 17 A
- Max output current (-12V): 6 A
- Max output current (+5Vsb): 12.5 A
- Hold time: 16 ms
- Efficiency: 86%
- Power Good signal delay range: 100 - 500 ms
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Peripheral (Molex) power connectors (4-pin): 4
- PCI Express power connectors (6+2 pin): 2
- Floppy disk drive connector: Yes
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.3
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active

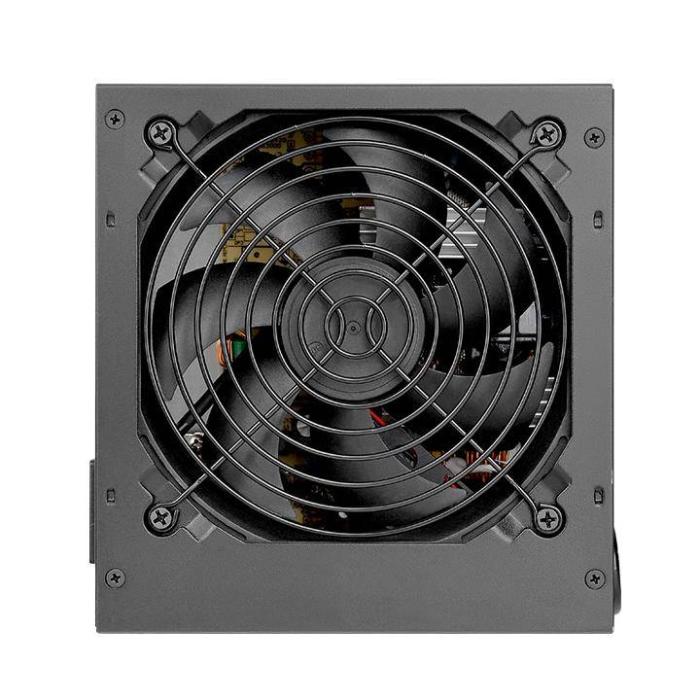

- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan speed: 1800
- Fan location: Top
Operational conditions
- Operating relative humidity (H-H): 20 - 85%
- Storage relative humidity (H-H): 10 - 95%
- Operating temperature (T-T): 5 - 40 °C
- Storage temperature (T-T): -40 - 50 °C
Certificates
- Certification: CE/CB/TUV
Weight & dimensions
- Width: 86 mm
- Depth: 140 mm
- Height: 150 mm
Logistics data
- Harmonized System (HS) code: 84733020
