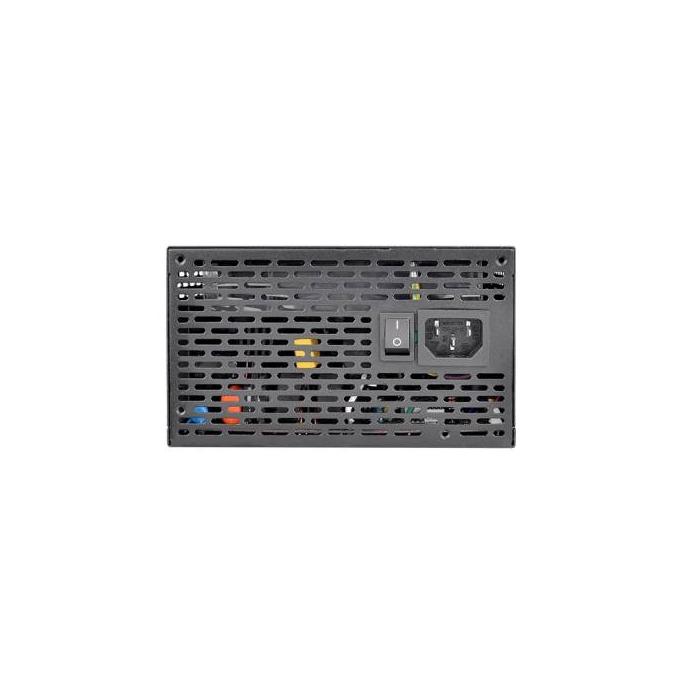

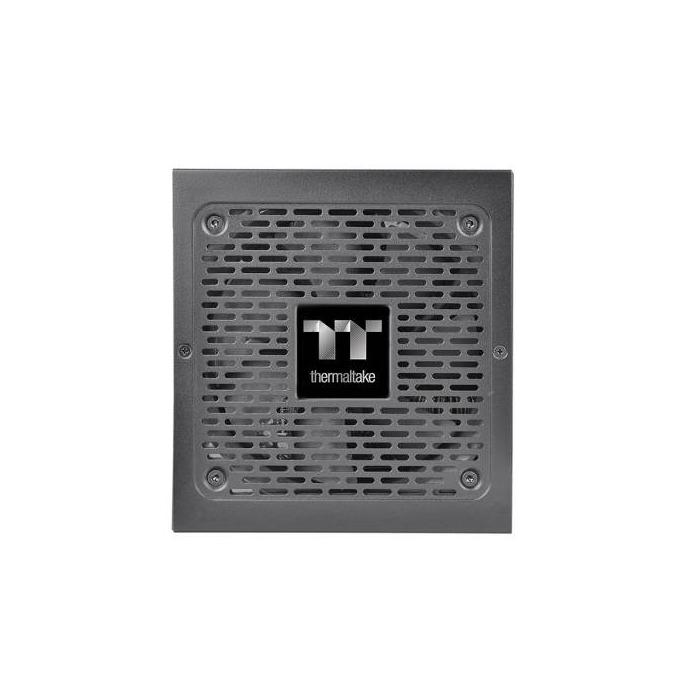

Thermaltake Smart BX3 power supply unit 650 W ATX Black
More info
Brand: THERMALTAKE
75,00 €Stock available: 0 units.
Unavailable
SKU:
105533
PRC:
520232
EAN:
4711475643048
PN:
ps-spd-0650nnfabe-3
Description
The Thermaltake Smart BX3, in its black 650 W version, is an ATX power supply designed to support mid-range systems with stable and efficient delivery. With a total power of 650 W and a single +12 V rail capable of supplying 54.2 A, this unit offers up to 650 W combined on that line, suitable for demanding components. It incorporates active power factor correction (active PFC), a hold-up time of 150 ms, and supports a universal input voltage of 100-240 V with a frequency of 50/60 Hz, making it easy to use in different environments. It features a PCI Express connector, as well as maximum outputs of 18 A on +5 V and +3.3 V, with combined power of 110 W for each of these lines, and built-in protections for reliable operation.
Specifications
Power
- Total power: 650 W
- Peak power: 650 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 15 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 110 W
- Combined power (+12V): 650 W
- Combined power (+5V): 110 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 18 A
- Max output current (+12V): 54.2 A
- Max output current (+5V): 18 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Hold time: 150 ms
Ports & interfaces
- Number of SATA power connectors: 4
- Peripheral (Molex) power connectors (4-pin): 4
- Peripheral (Molex) power cable length: 150, 500 mm
- PCI Express power connectors (6+2 pin): 2
- CPU P4 connector (4-pin): 2
- ATX Power connector (24-pin): Yes
- PCI Express connector: Yes
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.1
- Silent mode: Yes
Design
- Product colour: Black
- Fan diameter: 12 cm
Weight & dimensions
- Width: 150 mm
- Depth: 86 mm
- Height: 140 mm
