Description

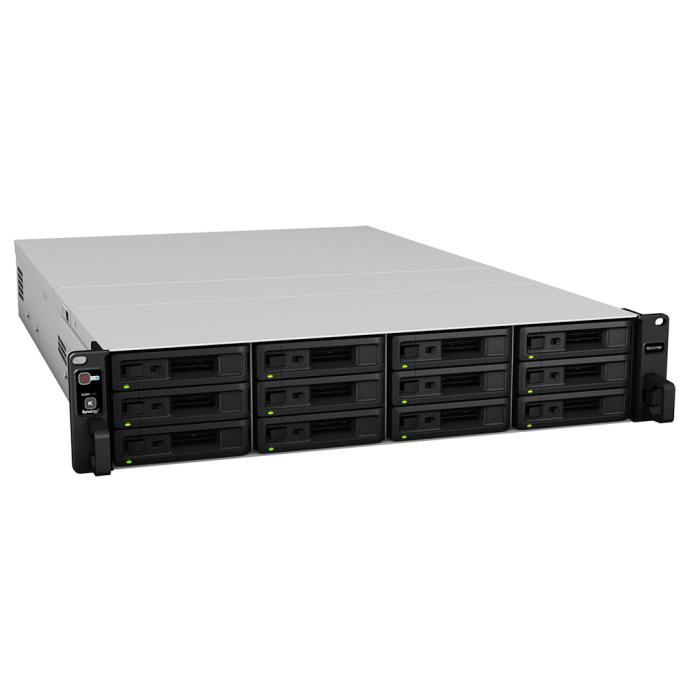

The Synology RX1217 expansion unit, in 2U rack format and black colour, arrives without drives installed and with 0 TB total capacity, ready for you to add up to 12 2.5-inch or 3.5-inch drives with Serial ATA III interface. It supports a maximum storage capacity of 168 TB, combining HDD and SSD, and features hot-swap bays for replacing drives without interrupting service. Its transfer speed reaches 6 Gbit/s and it connects via InfiniBand, with no USB option, with three fans generating a noise level of 54.6 dB. Designed to expand the capacity of your Synology RS3617xs, it includes FCC Class A, CE Class A and BSMI Class A certifications for professional use.
Specifications
Storage
- Storage drives installed: No
- Installed storage drive type: No
- Total installed storage capacity: 0 TB
- Supported storage drive types: HDD & SSD
- Number of storage drives supported: 12
- Maximum supported storage capacity: 168 TB
- Storage drive interface: Serial ATA III
- Storage drive size: 2.5/3.5"
- Data transfer rate: 6 Gbit/s
- Hot-swap drive bays: Yes
Ports & interfaces
- USB connectivity: No
- InfiniBand: Yes
Design
- Chassis type: Rack (2U)
- Product colour: Black
- Number of fans: 3 fan(s)
- Noise level: 54.6 dB
- Compatible products: Synology RS3617xs
- Certification: FCC A, CE A, BSMI A
Power
- Power supply unit (PSU) capacity: 500 W
- Number of power supply units: 1
- Power consumption (typical): 68.6 W
- AC input voltage: 100-240 V
- AC input frequency: 50 - 60 Hz
Weight & dimensions
- Width: 430.5 mm
- Depth: 664 mm
- Height: 88 mm
- Weight: 12.7 kg
Packaging content
- Cables included: AC, InfiniBand
Operational conditions
- Operating temperature (T-T): 5 - 35 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage temperature (T-T): -20 - 60 °C
Other features
- Compliance certificates: RoHS
Logistics data
- Harmonized System (HS) code: 84717020
