Description

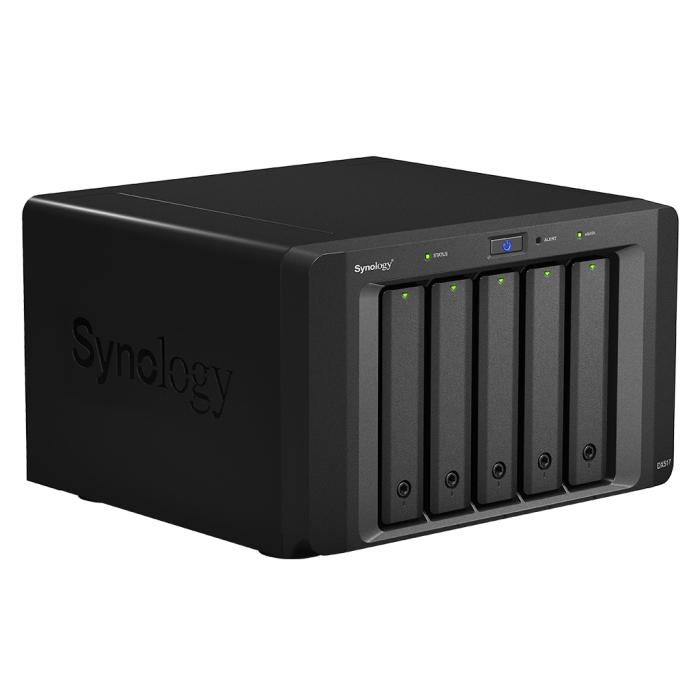

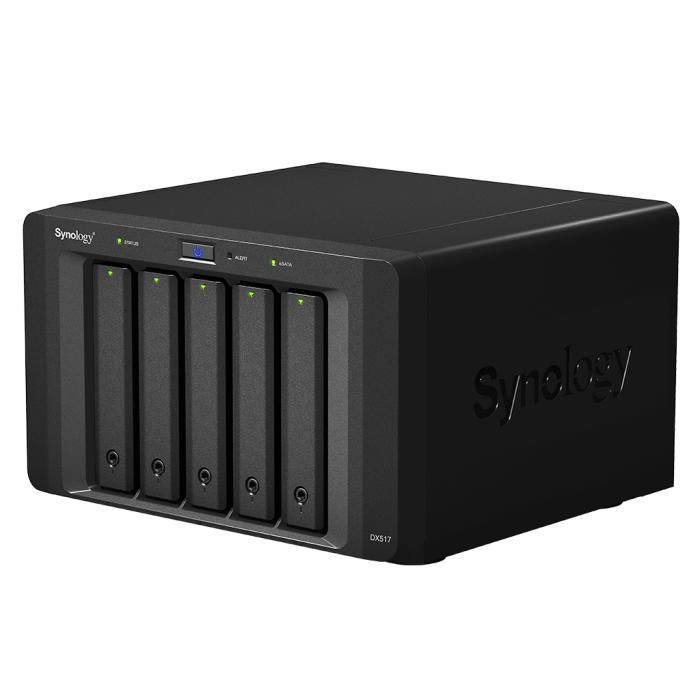

A desktop expansion unit in black that adds five hot-swap 2.5-inch or 3.5-inch bays to your system, compatible with HDD and SSD SATA, Serial ATA II, or Serial ATA III drives. With a maximum supported storage capacity of 80 TB and no drives installed from the factory (0 TB), it connects to your station via a single eSATA port. Designed for small and medium businesses, it is compatible with Synology DS1817+ and DS1517+ models and features two fans to maintain a stable temperature. It includes LED indicators for alarm, power, and status, and operates at a noise level of 21.5 dB, so you can place it on a desk without disturbance.
Specifications
Storage
- Storage drives installed: No
- Installed storage drive type: No
- Total installed storage capacity: 0 TB
- Supported storage drive types: HDD & SSD
- Number of storage drives supported: 5
- Maximum supported storage capacity: 80 TB
- Supported storage drive interfaces: Serial ATA, Serial ATA II, Serial ATA III
- Storage drive sizes supported: 2.5, 3.5"
- Hot-swap drive bays: Yes
Ports & interfaces
- USB connectivity: No
- eSATA ports quantity: 1
Design
- Device class: Small & Medium Business
- Chassis type: Desktop
- Product colour: Black

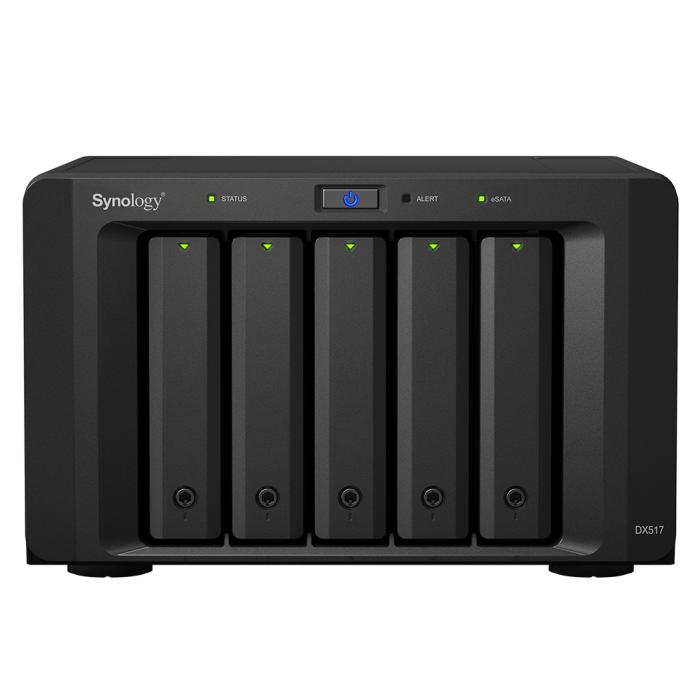

- LED indicators: Alarm, Power, Status

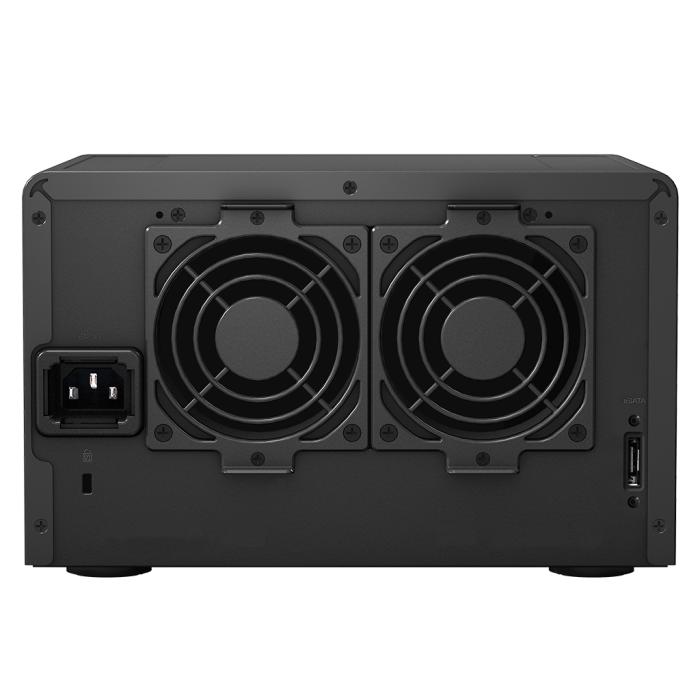

- Number of fans: 2 fan(s)
- Noise level: 21.5 dB
- Compatible products: Synology DS1817+, DS1517+
- Certification: FCC B, CE B, BSMI B
Power
- Power supply unit (PSU) capacity: 200 W
- Number of power supply units: 1
- Power consumption (typical): 29.9 W
- AC input voltage: 100-240 V
- AC input frequency: 50 - 60 Hz
Weight & dimensions
- Width: 248 mm
- Depth: 233 mm
- Height: 157 mm
- Weight: 3.91 kg
Packaging content
- Cables included: AC, eSATA
Operational conditions
- Operating temperature (T-T): 5 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage temperature (T-T): -10 - 70 °C
- Storage relative humidity (H-H): 5 - 95%
Other features
- Compliance certificates: RoHS
Logistics data
- Harmonized System (HS) code: 84717020
