Description

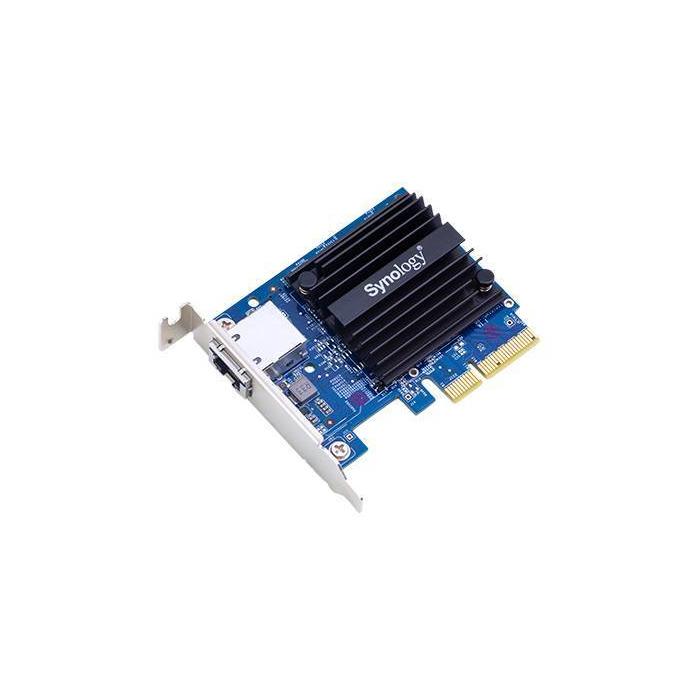

This Synology E10G18-T1 network adapter features one RJ-45 Ethernet port with a transfer speed of up to 10000 Mbit/s, and is compatible with 100, 1000, 2500 and 5000 Mbit/s speeds via auto-negotiation. Designed for internal use, it employs a PCI Express 3.0 host interface in a full-height or low-profile card format, finished in black and blue. It supports jumbo frames of 9000 bytes, full duplex mode, and complies with IEEE 802.3ab, 802.3an, 802.3bz, 802.3u and 802.3x standards. The card operates at temperatures from 0 to 40 °C and at a relative humidity between 5 and 95%, ideal for wired integration into your system.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: PCI Express
- Interface: Ethernet
- Ethernet LAN (RJ-45) ports: 1
- PCI version: 3.0
- PCI Card form factor: Full-height (low-profile)
Network
- Maximum data transfer rate: 10000 Mbit/s
- Networking standards: IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
- Ethernet LAN data rates: 100, 1000, 2500, 5000, 10000 Mbit/s
- Full duplex: Yes
- Jumbo frames support: Yes
- Auto-negotiation: Yes
- Jumbo frames: 9000
Design
- Product colour: Black, Blue
- Internal: Yes
- Compatible products: FS series:FS2500, FS6400, FS3600, FS3400, FS3017, FS2017, FS1018 SA series:SA3600, SA3400, SA3200D UC series:UC3200 22 series:DS
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 68.1 mm
- Depth: 13.6 mm
- Height: 86 mm
Packaging data
- Quantity per pack: 1 pc(s)
Logistics data
- Harmonized System (HS) code: 85176990
Other features
- Flow control support: Yes
