Description

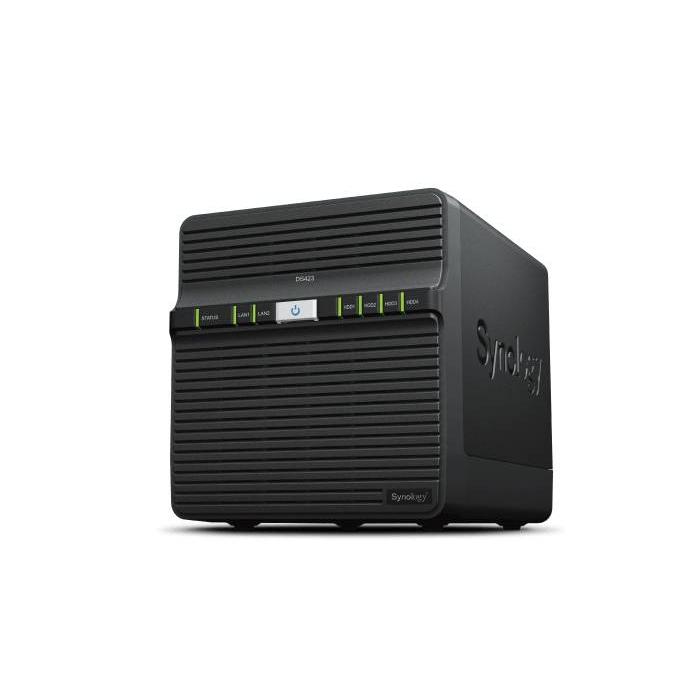

The Synology DiskStation DS423 NAS storage server, equipped with a quad-core Realtek RTD1619B processor at 1.7 GHz and 2 GB of DDR4 memory, arrives without any drives installed, so you can configure it with the disks that best suit your needs. This 4-bay model supports 2.5 or 3.5-inch SATA drives, both HDD and SSD, and supports a maximum storage capacity of up to 108 TB, with compatibility for RAID 0, 1, 5, 6, 10 and JBOD levels. With hot-swap bays, you can replace or expand drives without interrupting service, while DiskStation Manager offers an intuitive interface to manage the system and files.
Specifications
Storage
- Supported storage drive interfaces: Serial ATA
- Storage drive size: 2.5/3.5"
- Storage drive sizes supported: 2.5, 3.5"
- Maximum supported storage capacity: 108 TB
- RAID support: Yes
- RAID levels: 0, 1, 5, 6, 10, JBOD
- Hot-swap drive bays: Yes
- Supported file systems: BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
- Storage drives installed: No
- Total installed storage capacity: 0 TB
- Number of storage drives supported: 4
- Installed storage drive type: No
- Supported storage drive types: HDD & SSD
Processor
- Processor manufacturer: Realtek
- Processor family: Realtek
- Processor model: RTD1619B
- Processor frequency: 1.7 GHz
- Processor cores: 4
Memory
- Internal memory: 2 GB
- Internal memory type: DDR4
- Maximum RAM supported: 2 GB
Network
- Ethernet LAN: Yes
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
- iSCSI support: Yes
- Supported network protocols: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Ports & interfaces
- USB port: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- Ethernet LAN (RJ-45) ports: 2
Design
- Cooling type: Active
- Product colour: Black
- Number of fans: 2 fan(s)
- Fan diameter: 8 cm
- Fan diameter 2: 8 cm
- LED indicators: Yes
- Built-in display: No
- Cable lock slot: Yes
- Cable lock slot type: Kensington
- Built-in speaker(s): No
Performance
- Type: NAS
- Device class: Home & Home Office
- Backup function: Yes
- Backup features: Cloud, iSCSI LUN
- Buzzer: Yes
- Multilingual support: Yes
- Number of users: 1024 user(s)
- Noise level: 22.9 dB
- Card reader integrated: No
- Security algorithms: HTTPS, SSH, SSH-1.5, SSH-2, SSL/TLS
- Access Control List (ACL): Yes
- Reset button: Yes
- On/off switch: Yes
- Built-in FTP server: Yes
- Browser supported: Google Chrome, Firefox, Microsoft Edge, Safari
- System log: Yes
Software
- Operating system installed: DiskStation Manager
Power
- Power supply location: External
- Power supply unit (PSU) capacity: 90 W
- Number of power supply units: 1
- Redundant power supply (RPS) support: No
- Power consumption (typical): 32.41 W
- Power consumption (sleep): 4.97 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 / 60 Hz
Weight & dimensions
- Width: 184 mm
- Depth: 168 mm
- Height: 230 mm
- Weight: 2.21 kg
Packaging content
- External power adapter: Yes
- Cables included: AC, LAN (RJ-45)
- Power cables quantity: 1
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage temperature (T-T): -20 - 60 °C
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 5000 m
Other features
- Compliance certificates: CCC, CE, Federal Communications Commission (FCC), UKCA
