Description

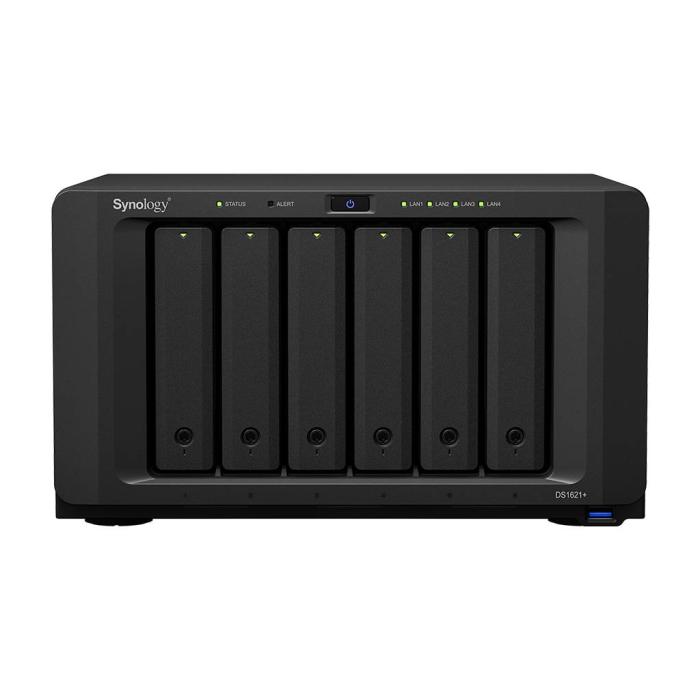

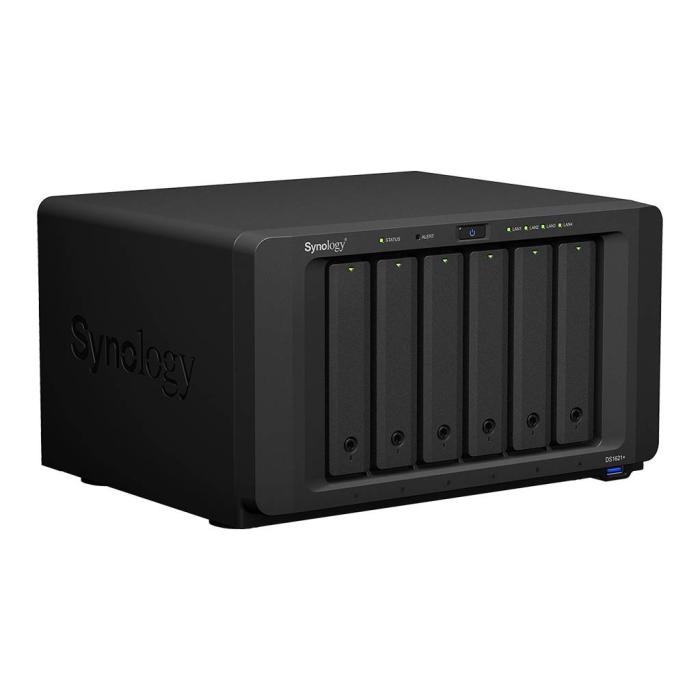

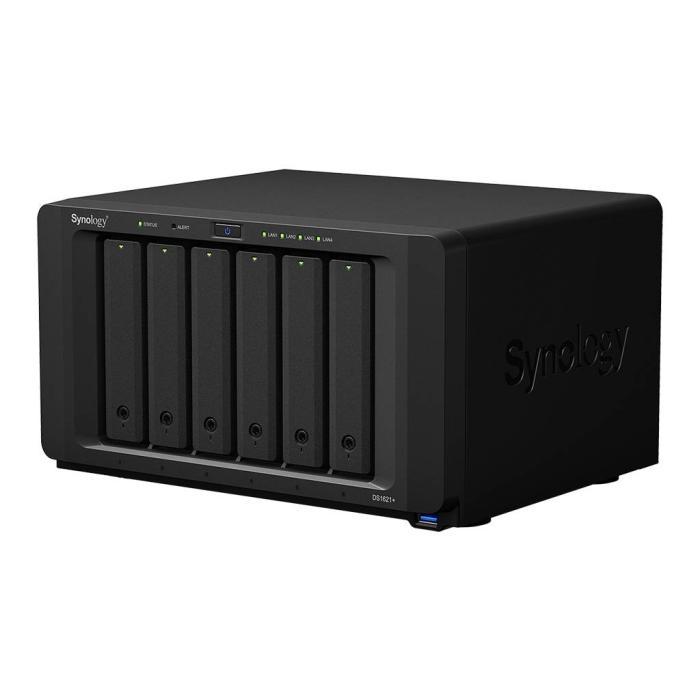

Synology DiskStation DS1621+ desktop NAS storage server with AMD Ryzen Embedded V1500B processor and 4 GB DDR4 memory, ready for you to install your own drives. This black model offers six hot-swap bays compatible with 2.5 or 3.5 inch SATA units, both HDD and SSD, and supports up to 108 TB maximum capacity. It includes two M.2 slots to boost performance with cache, supports RAID levels 0, 1, 5, 6 and 10, and works with BTRFS and ext4 file systems. With DiskStation Manager as the operating system, you manage your data, backups and remote access centrally.
Specifications
Storage
- Storage drive capacity: 0 GB
- Supported storage drive interfaces: M.2, Serial ATA
- Storage drive sizes supported: 2.5, 3.5"
- Maximum supported storage capacity: 108 TB
- Number of M.2 (M & B) slots: 2
- RAID support: Yes
- RAID levels: 0, 1, 5, 6, 10
- Hot-swap drive bays: Yes
- Supported file systems: BTRFS, ext4
- Storage drives installed: No
- Total installed storage capacity: 0 TB
- Number of storage drives supported: 6
- Installed storage drive type: No
- Supported storage drive types: HDD & SSD
Processor
- Processor manufacturer: AMD
- Processor generation: AMD Ryzen Embedded V1000 Series
- Processor family: Ryzen Embedded
- Processor model: V1500B
- Processor frequency: 2.2 GHz
- Processor cores: 4
- On-board graphics card model: Not available
Memory
- Internal memory: 4 GB
- Internal memory type: DDR4
- Maximum RAM supported: 32 GB
- Memory slots: 2
- Memory form factor: SO-DIMM
- ECC: Yes
Network
- Ethernet LAN: Yes
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Wake-on-LAN ready: Yes
- Supported network protocols: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
- Link aggregation: Yes

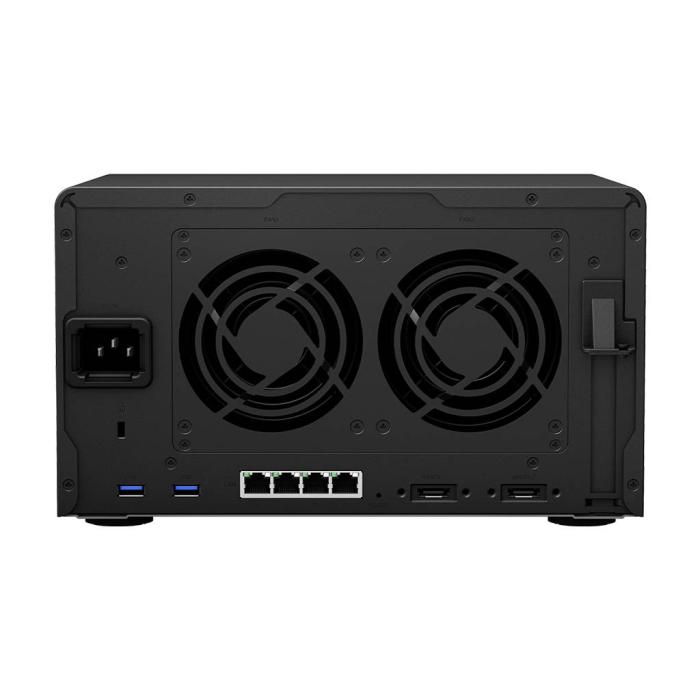

Ports & interfaces
- USB port: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- eSATA ports quantity: 2
- Ethernet LAN (RJ-45) ports: 4
- PCI Express x8 (Gen 3.x) slots: 1
Design
- Chassis type: Desktop
- Cooling type: Active
- Product colour: Black
- Number of fans: 2 fan(s)
- Fan diameter: 9.2 cm
- Fan diameter 2: 9.2 cm
- LED indicators: Yes
- Built-in display: Yes
Performance
- Type: NAS
- Device class: Small & Medium Business
- Backup function: Yes
- Multilingual support: Yes
- Number of users: 2048 user(s)
- Access Control List (ACL): Yes
- On/off switch: Yes
- Browser supported: Google Chrome, Firefox, Microsoft Edge, Internet Explorer 10, Safari
Software
- Operating system installed: DiskStation Manager
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
- Mac operating systems supported: Yes
Power
- Power supply location: Built-in
- Power supply unit (PSU) capacity: 250 W
- Number of power supply units: 1
- Power consumption (typical): 51.22 W
- Power consumption (HDD standby): 25.27 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
Weight & dimensions
- Width: 282 mm
- Depth: 243 mm
- Height: 166 mm
- Weight: 5.1 kg
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage temperature (T-T): -20 - 60 °C
Logistics data
- Harmonized System (HS) code: 84714100
