StarTech.com VGA to Cat 5 Monitor Extender Kit (250ft/80m) - VGA Cat5 Extender
More info
Brand: STARTECH.COM
159.74 €
132.02 €
without VAT
incl. 21 % VAT
Stock available: 4 units.
Get it
on the
November 9
/
November 10
SKU:
74388
PRC:
66034
EAN:
384066654453
PN:
ST121UTPEP
Description
StarTech.com VGA video extender over Cat5 UTP Ethernet RJ45 cable with a range of up to 80 m, black. It works as an AV signal transmitter and receiver and supports a maximum resolution of 1920 x 1200 pixels, with compatibility with 1280 x 1024 (SXGA), 1600 x 1200 (UXGA) and 1920 x 1200 (WUXGA). It features one VGA (D-Sub) input port and one output port, plus one RJ-45 input port and one output port. It operates at 12 V with an output current of 0.6 A and a power consumption of 7.2 W, and includes an external power adapter with a type M plug and AU, EU, NA and UK power connectors. Its casing is aluminium and its dimensions are 138 x 25 x 100 mm (width x height x depth), with a weight of 263 g. It is Plug and Play compatible, has a DC input jack and is supplied with a VGA cable.
Specifications
Features
- Type: AV transmitter & receiver
- Maximum resolution: 1920 x 1200 pixels
- Cable types supported: Cat5
- Maximum transfer distance: 80 m
- Supported graphics resolutions: 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
- Material: Aluminium
- Plug and Play: Yes
- Daisy chain: No
- Product colour: Black
- Certification: CE, FCC, REACH, TAA
Ports & interfaces

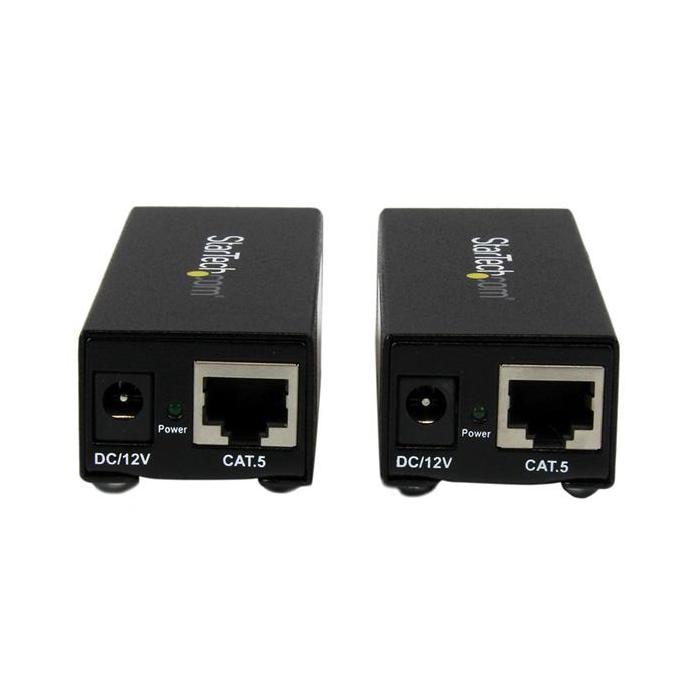

- RJ-45 input ports: 1
- RJ-45 output ports: 1

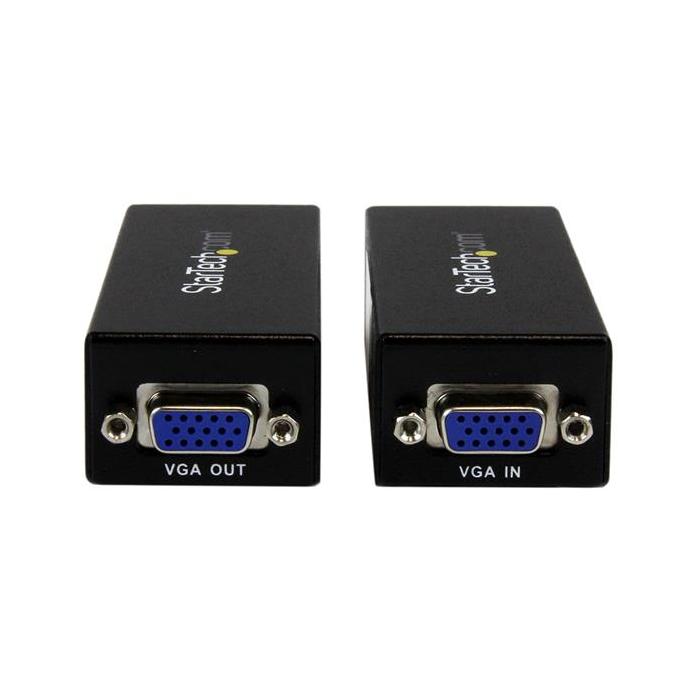

- VGA (D-Sub) input ports: 1
- VGA (D-Sub) output ports: 1
- DC-in jack: Yes
Power
- Power consumption (typical): 7.2 W
- External power adapter: Yes
- Power plug type: Type M
- Operating voltage: 12 V
- Output current: 0.6 A
Weight & dimensions
- Width: 138 mm
- Depth: 100 mm
- Height: 25 mm
- Weight: 263 g
Packaging data
- Package width: 140 mm
- Package depth: 315 mm
- Package height: 60 mm
- Package weight: 795 g

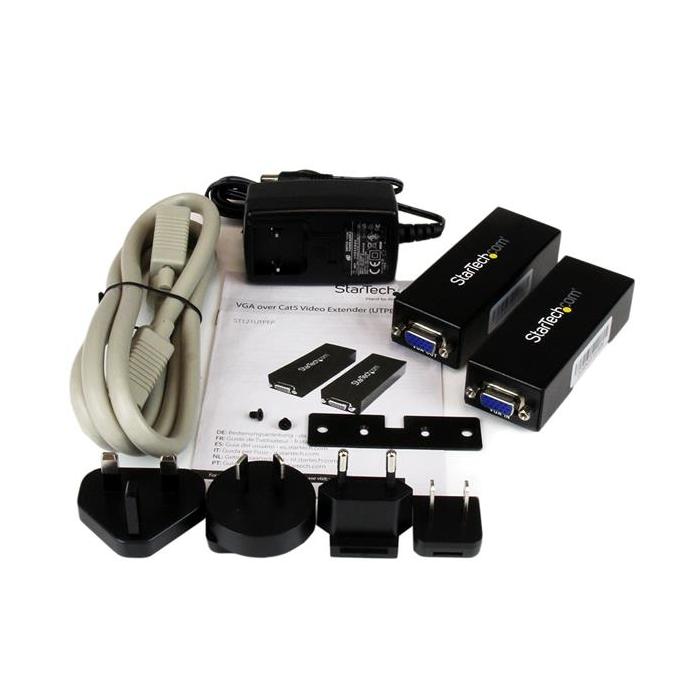

Packaging content
- AC adapter included: Yes
- Cables included: VGA
- Included power plug types: AU, EU, NA, UK
- Manual: Yes
- Mounting brackets included: Yes
Technical details
- Compliance certificates: RoHS
