StarTech.com HDMI Extender Over CAT5e/CAT6, 4K 60Hz, Up to 200ft (60m), Transmitter and Receiver Kit, Power Over Cable, Compact Form Factor
More info
Brand: STARTECH.COM
151.90 €
125.54 €
without VAT
incl. 21 % VAT
Stock available: 7 units.
Get it
on the
October 12
/
October 13
SKU:
109882
PRC:
589093
EAN:
65030918299
PN:
4K50IC-EXTEND-HDMI
Description
StarTech.com 4K50IC-EXTEND-HDMI audio and video extender in black, with HDMI input and HDMI output under HDMI 2.0, reaching a maximum resolution of 3840 x 2160 pixels at 60 Hz. It works via cable connection and supports Cat5e and Cat6 cables, with a maximum transfer distance of 60 m. It features one RJ-45 input port and one RJ-45 output port, plus a USB port with USB Type-C connector. It supports compatible graphics resolutions such as 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720) and 1280 x 768 (WXGA). It offers 7.1 channels of audio output and is compatible with HDCP version 2.2. It is USB-powered, with a transmitter operating voltage of 5 V and an AC input voltage of 100 - 240 V. The receiver, made of metal, has dimensions of 40 x 67 x 23 mm and a weight of 92 g.
Specifications
Features
- Type: AV transmitter & receiver
- Maximum resolution: 3840 x 2160 pixels
- Cable types supported: Cat5e, Cat6
- Maximum transfer distance: 60 m
- Maximum refresh rate: 60 Hz
- Audio output channels: 7.1 channels
- Supported graphics resolutions: 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (W
- HDCP: Yes
- Material: Metal
- Rack mounting: No
- HDCP version: 2.2
- Product colour: Black
Ports & interfaces
- Connectivity technology: Wired
- RJ-45 input ports: 1
- RJ-45 output ports: 1
- HDMI in: 1
- Number of HDMI outputs: 1
- HDMI version: 2.0
- USB ports quantity: 1
- USB connector type: USB Type-C
Power
- Power source type: USB
- AC input voltage: 100 - 240 V
- Input current: 0.3 A
- Operating voltage (transmitter): 5 V
- Output current: 2 A
- Operating voltage (receiver): 5 V
- Power consumption (typical): 10 W
- USB Power Delivery (USB PD): Yes
- External power adapter: Yes
Operational conditions
- Operating temperature (T-T): -20 - 60 °C
- Storage temperature (T-T): -30 - 70 °C
- Operating relative humidity (H-H): 0 - 90%
Weight & dimensions
- Receiver dimensions (WxDxH): 40 x 67 x 23 mm
- Receiver weight: 92 g
- Transmitter dimensions (WxDxH): 40 x 67 x 23 mm
- Transmitter weight: 92 g
Packaging data
- Package width: 150 mm
- Package depth: 117 mm
- Package height: 77 mm
- Package weight: 364 g

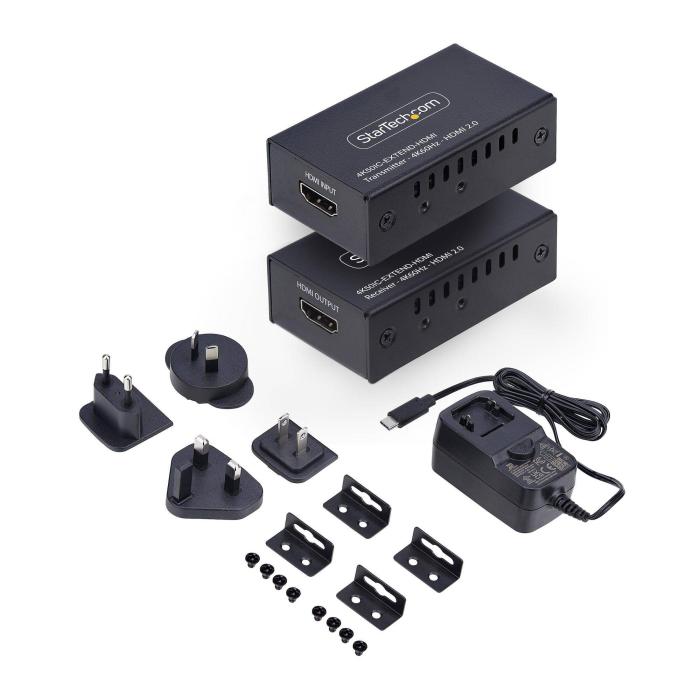

Packaging content
- AC adapter included: Yes
- Included power plug types: ANZ, EU, NA, UK
- Quick start guide: Yes
- Mounting brackets included: Yes
Technical details
- Compliance certificates: Federal Communications Commission (FCC), RoHS
Logistics data
- Master (outer) case width: 430 mm
- Master (outer) case length: 330 mm
- Master (outer) case height: 380 mm
- Products per master (outer) case: 30 pc(s)
