StarTech.com Laptop Docking Module for Conference Table Connectivity Box
More info
Brand: STARTECH.COM
186.20 €
153.88 €
without VAT
incl. 21 % VAT
Stock available: 4 units.
Get it
on the
October 30
/
November 2
SKU:
83338
PRC:
268681
EAN:
65030871075
PN:
MOD4DOCKACPD
Description

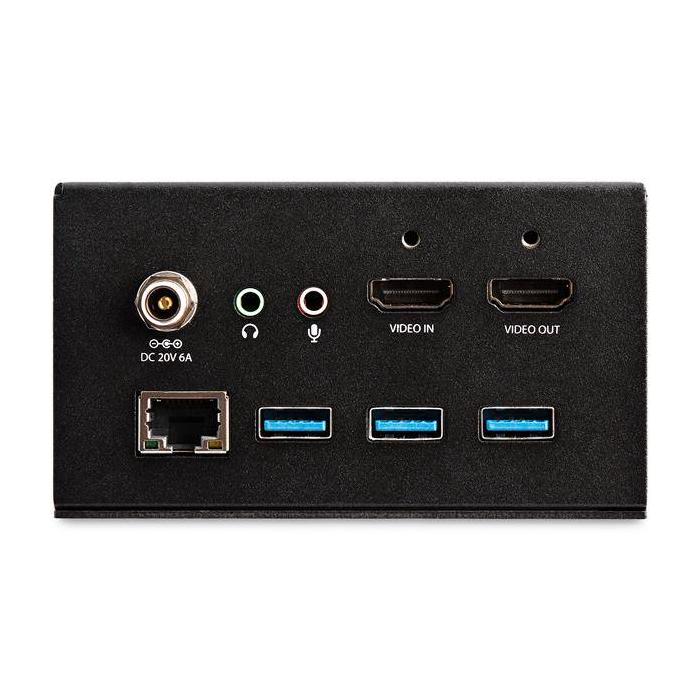

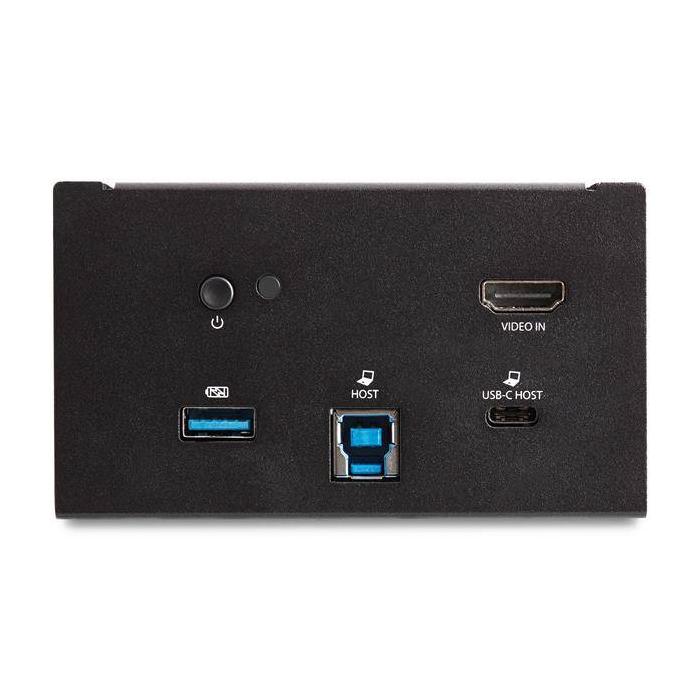

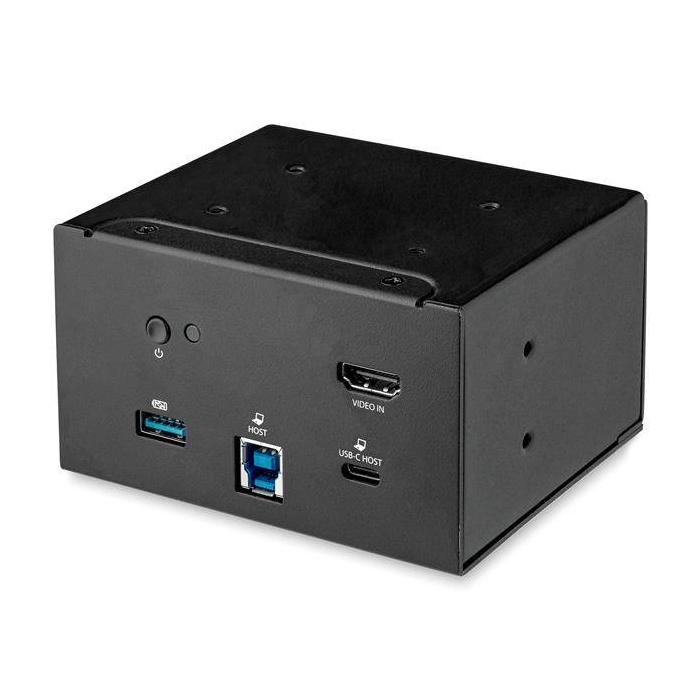

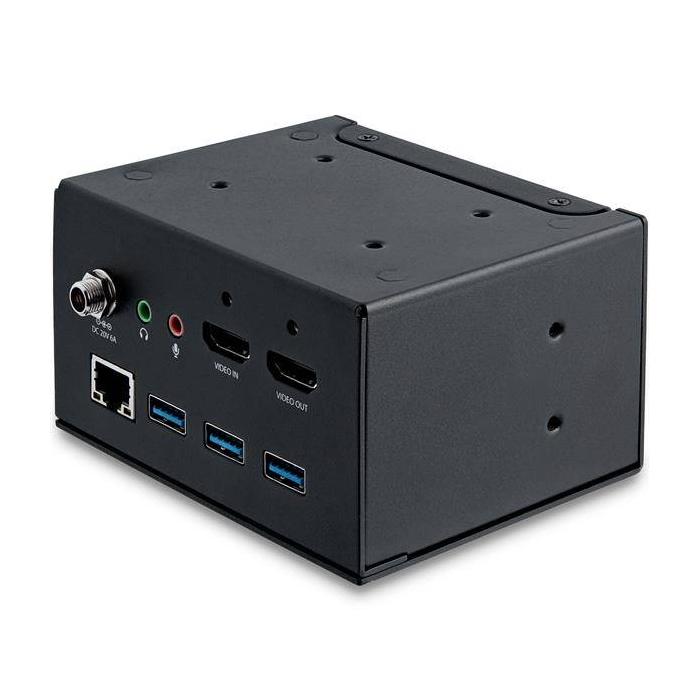

Docking module for laptop from STARTECH.COM, in black and weighing 588 g, designed to be integrated into conference table connectivity boxes and power grommets. Its dimensions of 94 x 61 x 12 mm (width x height x depth) allow it to be installed in the table cutout and concentrate all the ports there. It incorporates four USB Type-A ports and one USB Type-C port, all of them USB 3.2 Gen 1, as well as three HDMI ports with a maximum resolution of 3840 x 2160 pixels. Connection to the equipment is made via a USB 3.2 Gen 1 Type-B host interface with cable, and it includes a 3.5 mm headphone jack and a microphone input. It offers Ethernet connectivity with auto MDI/MDI-X and full duplex, compatible with the IEEE 802.3, IEEE 802.3ab and IEEE 802.3u standards, and supports UASP for data transfer. It integrates power LED indicators and has CE, FCC, TAA and REACH certification.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- HDMI ports quantity: 3
- Microphone in: Yes
- Combo headphone/mic port: No
- Headphone outputs: 1
- Headphone connectivity: 3.5 mm
Network
- Ethernet LAN: Yes
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- Auto MDI/MDI-X: Yes
- Full duplex: Yes
Performance
- Card reader integrated: No
- Data transfer rate: 5 Gbit/s
- Maximum digital resolution: 3840 x 2160 pixels
- Product colour: Black
- LED indicators: Power
- UASP support: Yes
- Housing material: Aluminium, Plastic
- Certification: CE, FCC, TAA, REACH
Power
- AC input voltage: 100 - 240 V
- Input current: 2 A
- Output voltage: 20 V
- Output current: 6 A
- Power consumption (typical): 60 W
- Power plug type: Type N
- Compatible power plug types: EU, UK, US
Software
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac O
- Other operating systems supported: ChromeOS
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 65 °C
- Operating relative humidity (H-H): 20 - 80%
Weight & dimensions
- Width: 94 mm
- Depth: 12 mm
- Height: 61 mm
- Weight: 588 g
Packaging data
- Package width: 211 mm
- Package depth: 251 mm
- Package height: 10 mm
- Package weight: 2.1 kg
Packaging content
- Mounting brackets included: Yes
- Cables included: USB Type-A to USB Type-B, USB Type-C to USB Type-C
- AC adapter included: Yes
- Quick start guide: Yes
- Number of screws: 12
Technical details
- Compliance certificates: RoHS
Logistics data
- Products per master (outer) case: 4 pc(s)
- Master (outer) case width: 273 mm
- Master (outer) case length: 430 mm
- Master (outer) case height: 246 mm
- Harmonized System (HS) code: 84733020
Other features
- Chipset: DisplayLink - DL-6950, Genesys Logic - GL850G, Texas Instruments - TPS65982, Parade Technologies - PS176, VIA Labs - VL813, Real
