Description

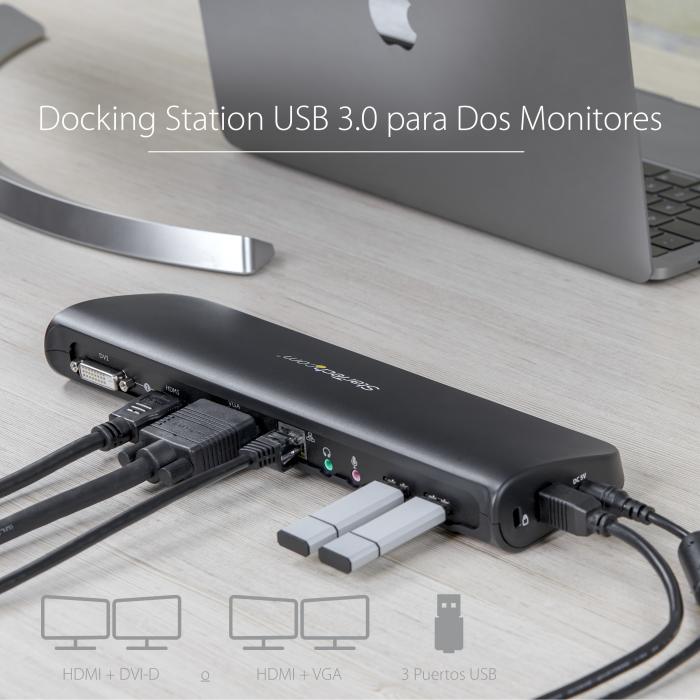

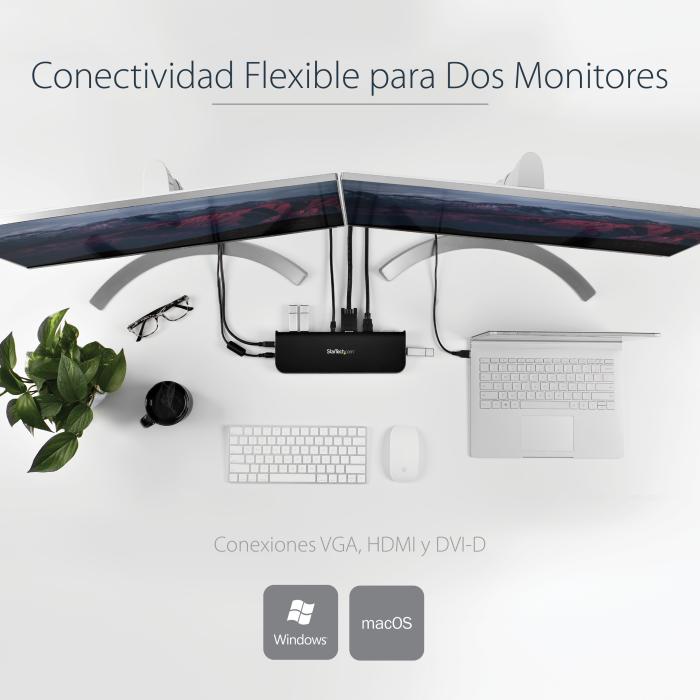

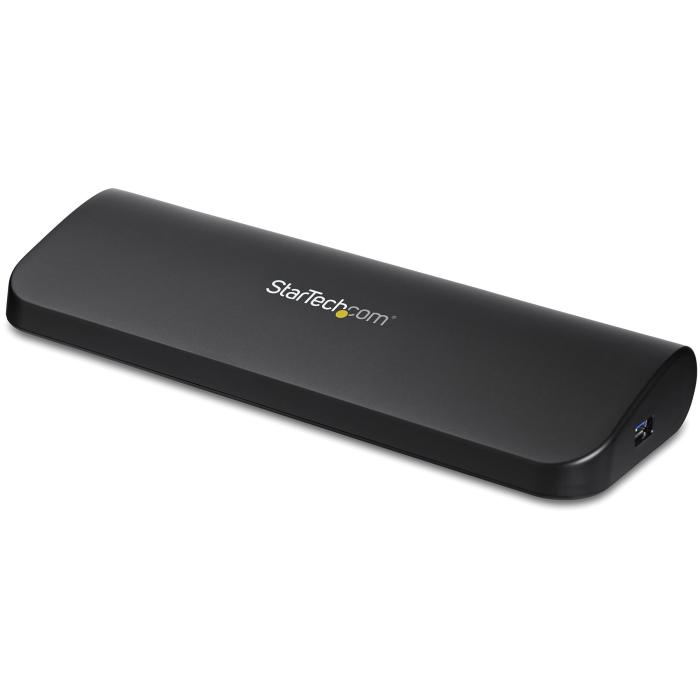

StarTech.com Dual-Monitor USB 3.0 Docking Station with HDMI u0026 DVI/VGA~Dual Monitor USB 3.0 Laptop Docking Station with HDMI/DVI/VGA, 3x USB-A Hub, GbE, Audio, Universal Type-A Dock for Windows/macOS/ChromeOS - TAA Compliant, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-B, 10,100,1000 Mbit/s, 1000BASE-T, 100BASE-TX, 10BASE-T, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Black

Specifications

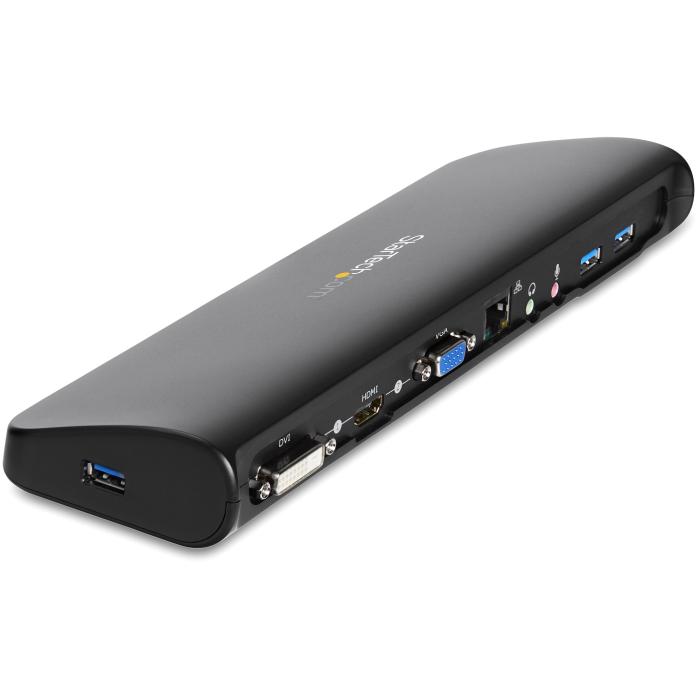

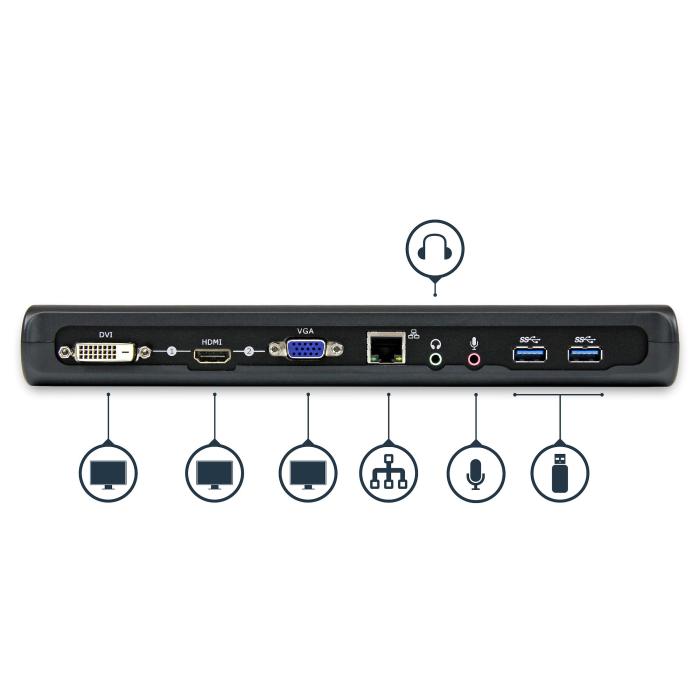

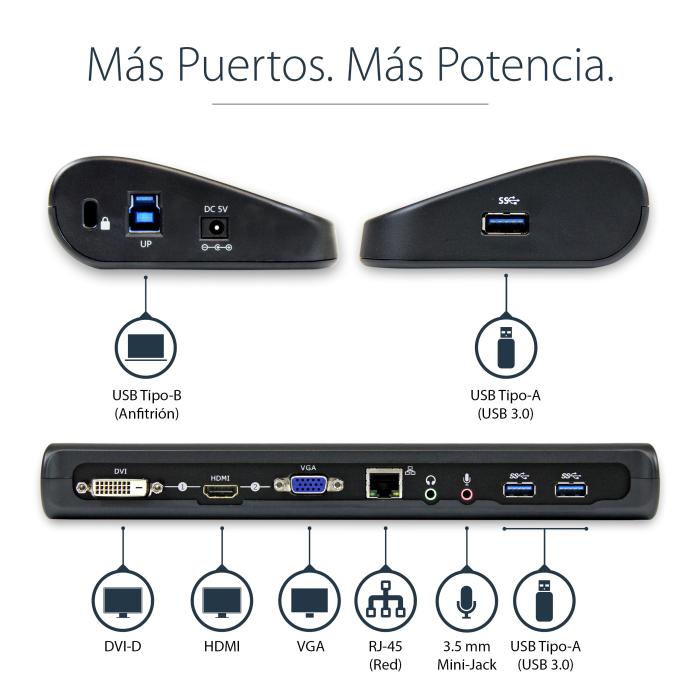

Ports & interfaces


  • Connectivity technology: Wired
  • Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B

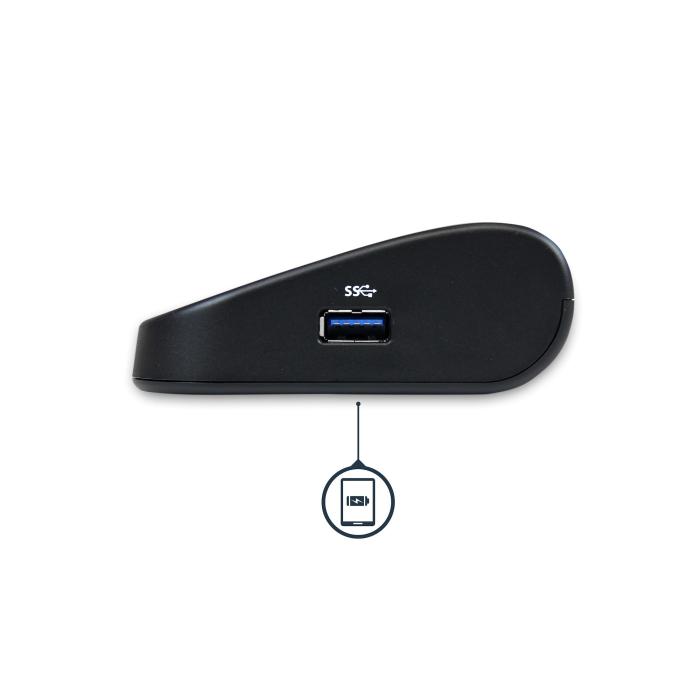

  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
  • HDMI ports quantity: 1
  • VGA (D-Sub) ports quantity: 1
  • DVI-D ports quantity: 1
  • Microphone in: Yes
  • Headphone outputs: 1
  • DC-in jack: Yes

Network


  • Ethernet LAN: Yes
  • Ethernet LAN (RJ-45) ports: 1
  • Ethernet LAN data rates: 10, 100, 1000 Mbit/s
  • Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
  • Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
  • Auto MDI/MDI-X: Yes
  • Full duplex: Yes

Performance


  • Card reader integrated: No
  • Data transfer rate: 5 Gbit/s
  • Maximum digital resolution: 1920 x 1200 pixels
  • Maximum analog resolution: 2048 x 1152 pixels
  • Cable lock slot: Yes
  • Cable lock slot type: Kensington
  • Product colour: Black
  • Housing material: Plastic
  • Certification: FCC, CE, TAA, REACH

Power


  • AC input voltage: 100-240 V
  • Input current: 0.9 A
  • Output voltage: 5 V
  • Output current: 4 A
  • Power consumption (typical): 20 W
  • Power plug type: Type B
  • Compatible power plug types: AU, EU, UK, US

Software


  • Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
  • Mac compatibility: Yes
  • Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X
  • Other operating systems supported: ChromeOS

Operational conditions


  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -10 - 60 °C
  • Operating relative humidity (H-H): 0 - 90%

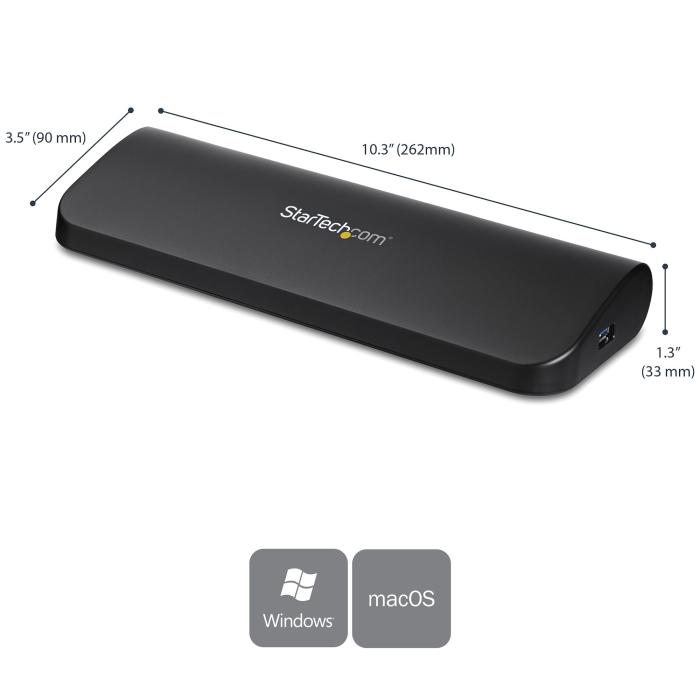

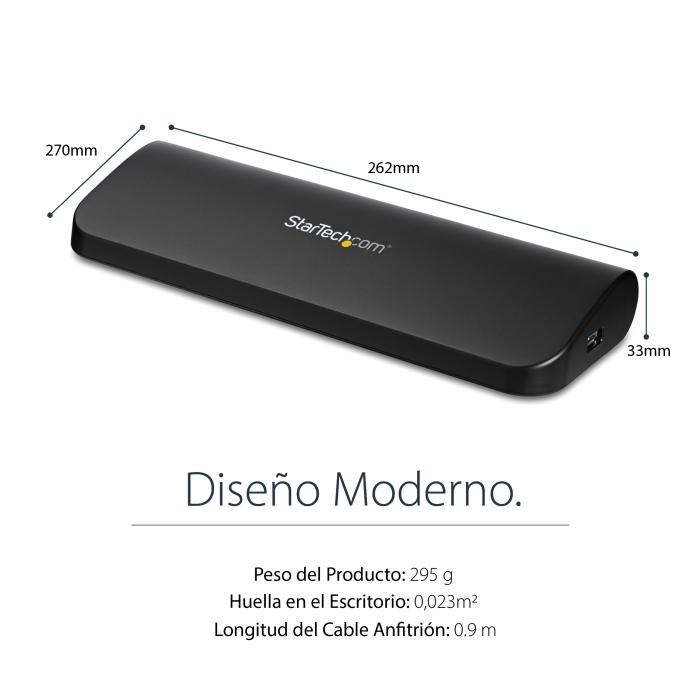

Weight & dimensions


  • Width: 178 mm
  • Depth: 304 mm
  • Height: 44 mm
  • Weight: 295 g

Packaging data


  • Package width: 195 mm
  • Package depth: 296 mm
  • Package height: 66 mm
  • Package weight: 878 g

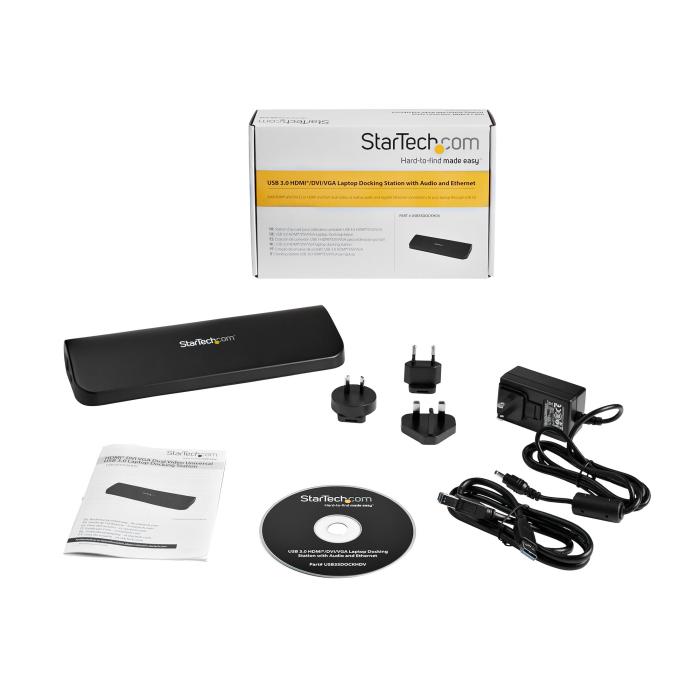

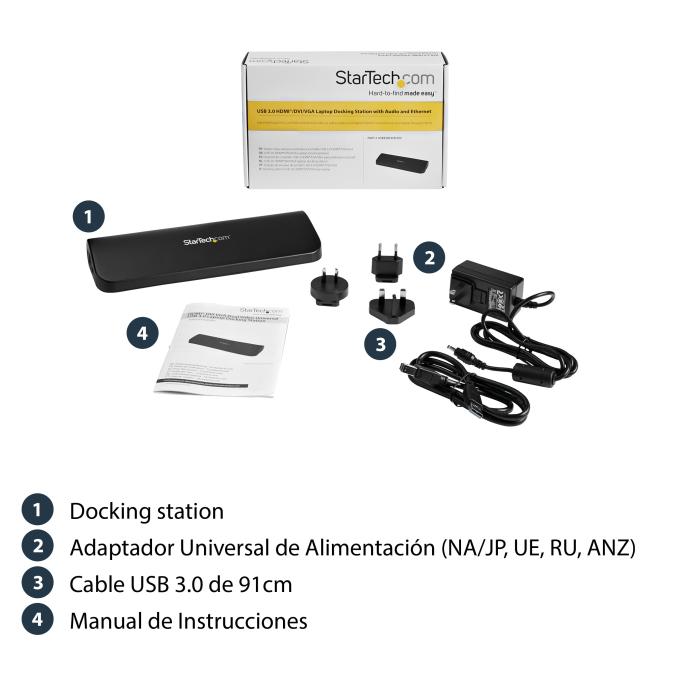

Packaging content


  • Cables included: USB
  • AC adapter included: Yes
  • Manual: Yes
  • Drivers included: Yes

Technical details


  • Compliance certificates: RoHS

Logistics data


  • Products per master (outer) case: 6 pc(s)
  • Master (outer) case width: 215 mm
  • Master (outer) case length: 435 mm
  • Master (outer) case height: 345 mm
  • Harmonized System (HS) code: 84733020

Other features


  • Chipset: DisplayLink - DL-3900, Genesys Logic - GL3520, Realtek - RTL8211E
  • USB data transfer rates: 12, 480, 5000 Mbit/s
