StarTech.com Travel Docking Station for Laptops - HDMI or VGA - USB 3.0
More info
Brand: STARTECH.COM
86.24 €
71.27 €
without VAT
Stock available: 45 units.
Get it
on the
September 25
/
September 28
SKU:
74609
PRC:
70178
EAN:
65030858281
PN:
USB3SMDOCKHV
Description

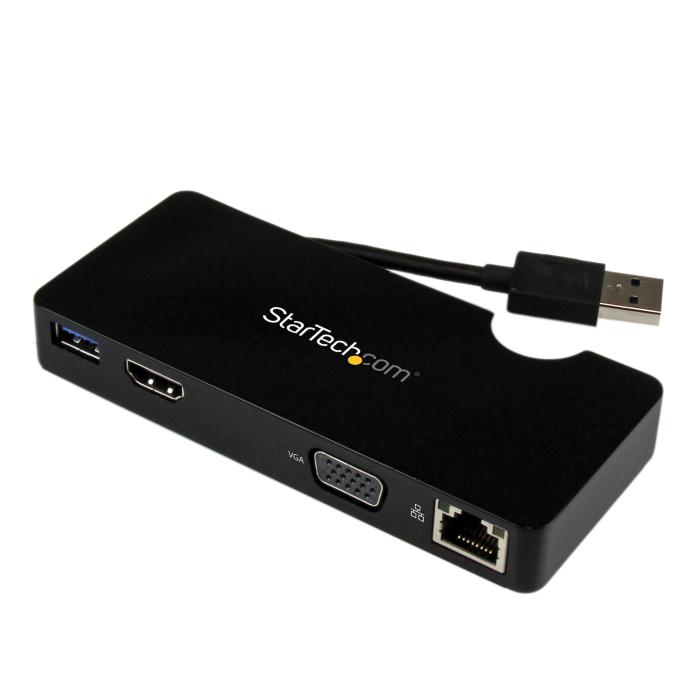

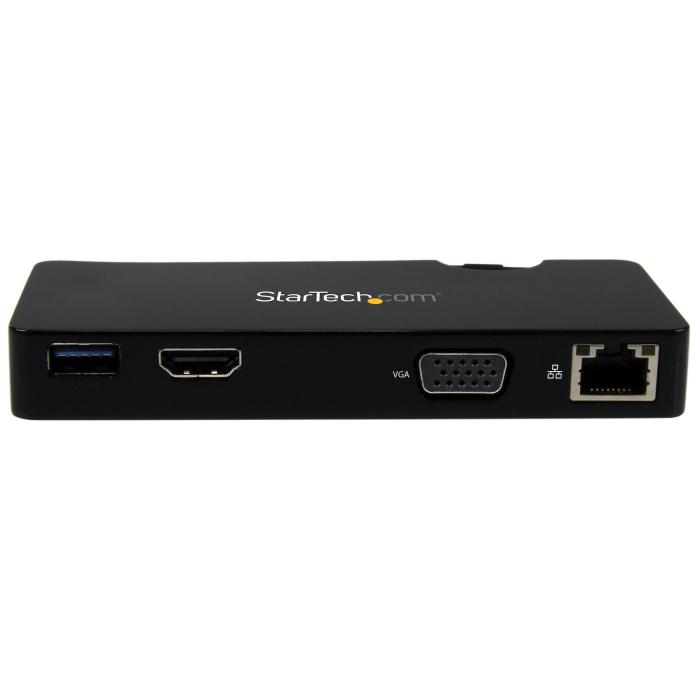

The StarTech.com HDMI or VGA port replicator is a laptop docking station designed to expand your equipment's connectivity when you work away from home. Its plastic housing comes in black and a compact format, weighing 82 g with dimensions of 55 x 17 x 125 mm (width x height x depth), so it fits easily in any bag. Connection to the computer is wired, via a USB 3.2 Gen 1 (3.1 Gen 1) Type-A host interface, and the included cable measures 0.093 m. For video it has an HDMI port and a VGA (D-Sub) port, so you can connect a monitor or projector depending on what you have to hand. As for networking, it includes an Ethernet LAN (RJ-45) port with transfer speeds of 10, 100 and 1000 Mbit/s, compatible with the IEEE 802.3, IEEE 802.3ab and IEEE 802.3u standards and with the 10BASE-T, 100BASE-TX and 1000BASE-T cabling technologies. It adds a USB 3 Type-A port.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
- HDMI ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- Microphone in: No
Network
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- Auto MDI/MDI-X: Yes
- Full duplex: Yes
Performance
- Card reader integrated: No
- Data transfer rate: 5 Gbit/s
- Maximum digital resolution: 2048 x 1152 pixels
- Product colour: Black
- LED indicators: Activity, Link
- UASP support: Yes
- Housing material: Plastic
- Brand compatibility: Any brand
- Certification: CE, FCC, REACH
Power
- Power source type: USB
Software
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 0 - 90%
Weight & dimensions
- Width: 55 mm
- Depth: 125 mm
- Height: 17 mm
- Weight: 82 g
Packaging data
- Package width: 167 mm
- Package depth: 143 mm
- Package height: 43 mm
- Package weight: 192 g

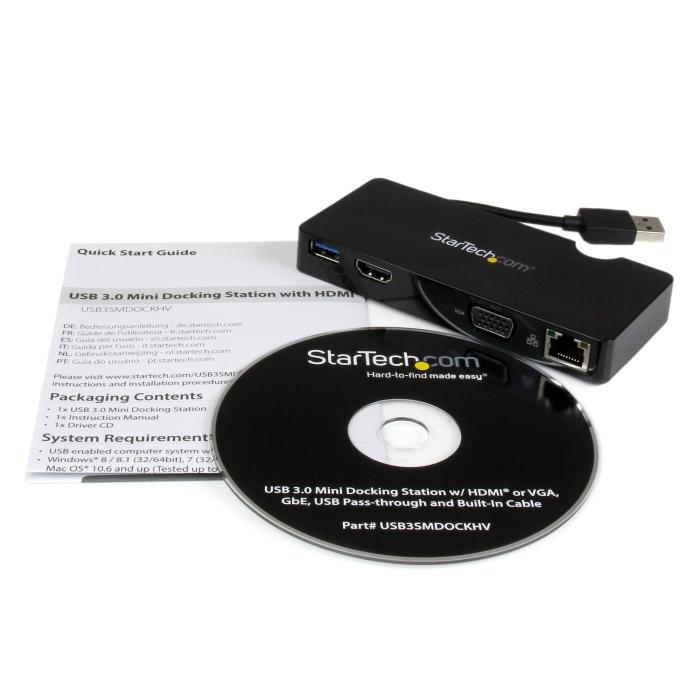

Packaging content
- Manual: Yes
- Drivers included: Yes
Technical details
- Compliance certificates: RoHS
Logistics data
- Products per master (outer) case: 40 pc(s)
- Master (outer) case width: 346 mm
- Master (outer) case length: 448 mm
- Master (outer) case height: 309 mm
- Harmonized System (HS) code: 84733020
Other features
- Cable length: 0.093 m
- Chipset: DisplayLink - DL-3700
