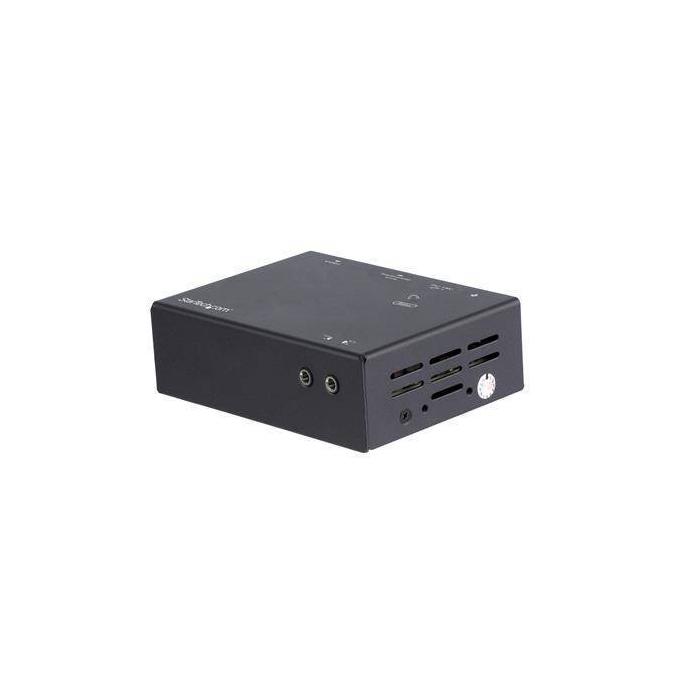

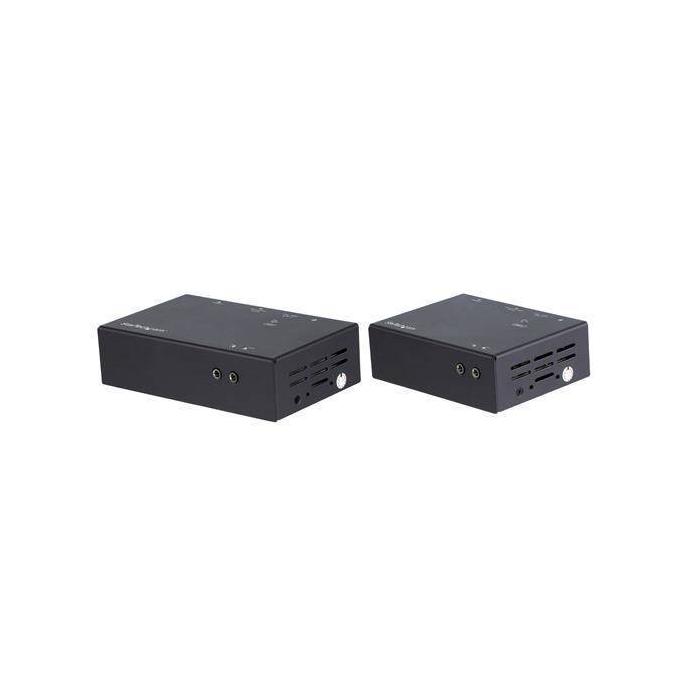

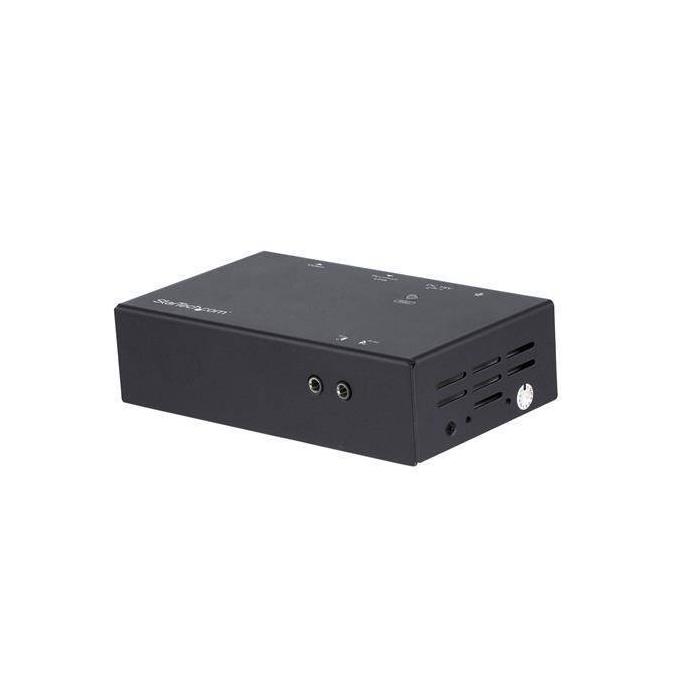

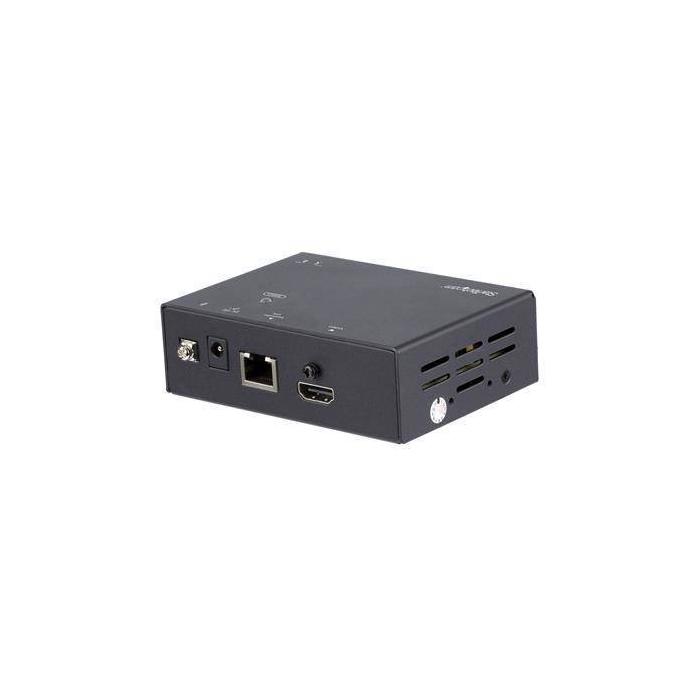

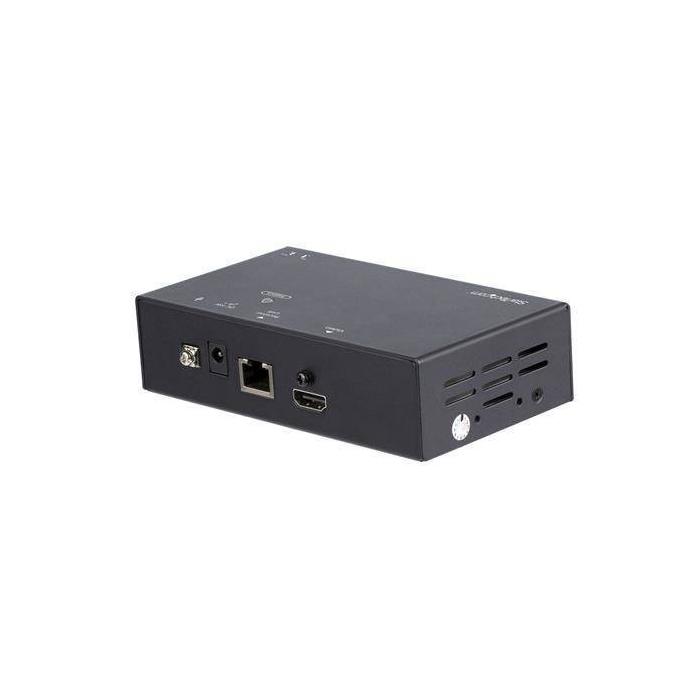

StarTech.com HDMI Over CAT6 Extender - Power Over Cable - Up to 100 m (328 ft.)

Not avaliable

Amount

Brand: STARTECH.COM

SKU: 81031 PRC: 231693 EAN: 65030877879 PN: ST121HDBT20L

Description

StarTech.com HDMI Over CAT6 Extender - Power Over Cable - Up to 100 m (328 ft.), 4096 x 2160 pixels, AV transmitter u0026 receiver, 100 m, Wired, Black

Specifications

Features

Type: AV transmitter & receiver
Maximum resolution: 4096 x 2160 pixels
Cable types supported: Cat5e, Cat6
Maximum transfer distance: 100 m
Audio output channels: 7.1 channels
LED indicators: Status
Supported video modes: 720p, 1080p
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
Material: Aluminium
Daisy chain: No
Rubber feet: Yes
Product colour: Black

Ports & interfaces

Connectivity technology: Wired
RJ-45 input ports: 1
RJ-45 output ports: 1
HDMI in: 1
Number of HDMI outputs: 1
Remote (IR) input: 2
Remote (IR) output: 2

Power

AC input voltage: 100 - 240 V
Operating voltage: 18 V
Input current: 0.6 A
Output current: 1 A
External power adapter: Yes
Power plug type: Type M

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 0 - 80%

Packaging data

Package width: 206 mm
Package depth: 280 mm
Package height: 62 mm
Package weight: 230 g

Packaging content

AC adapter included: Yes
Included power plug types: ANZ, EU, JP, NA, UK
Quick start guide: Yes
IR blaster included: Yes
IR receiver included: Yes
Mounting brackets included: Yes

Technical details

Compliance certificates: CE, RoHS

Logistics data

Master (outer) case width: 323 mm
Master (outer) case length: 410 mm
Master (outer) case height: 275 mm
Products per master (outer) case: 6 pc(s)
