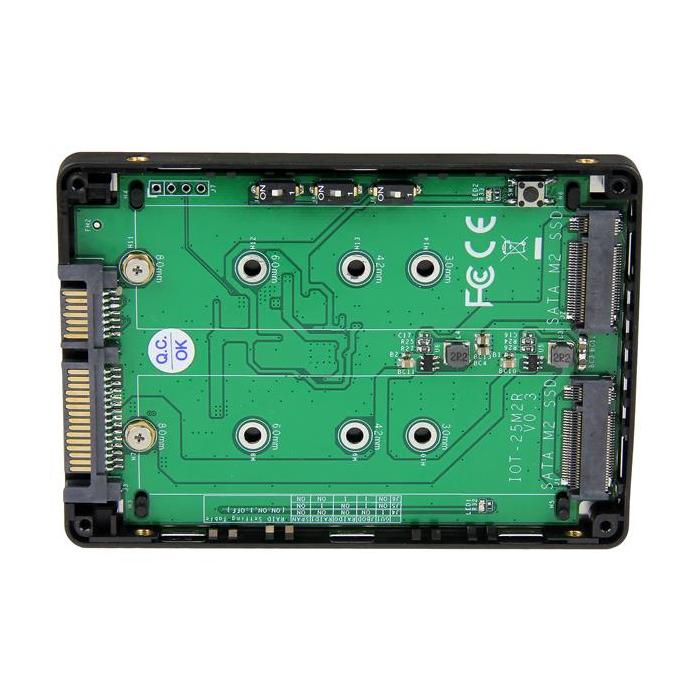

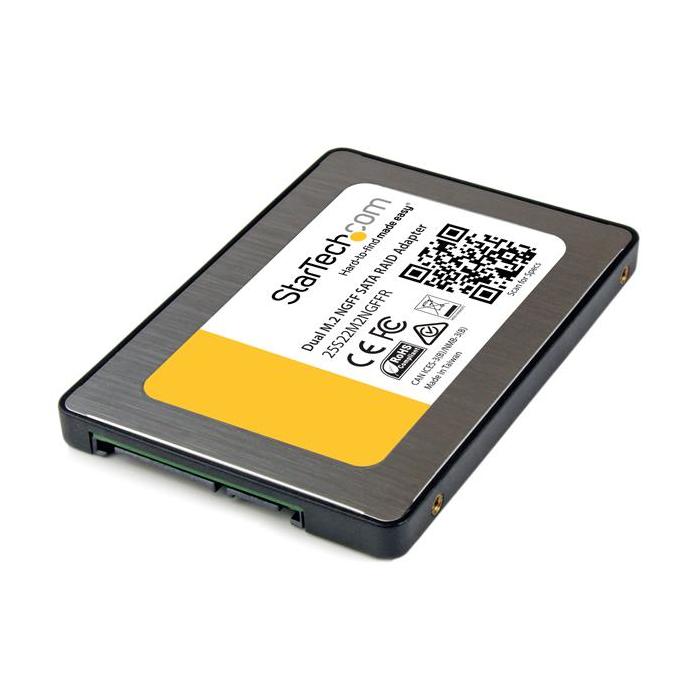

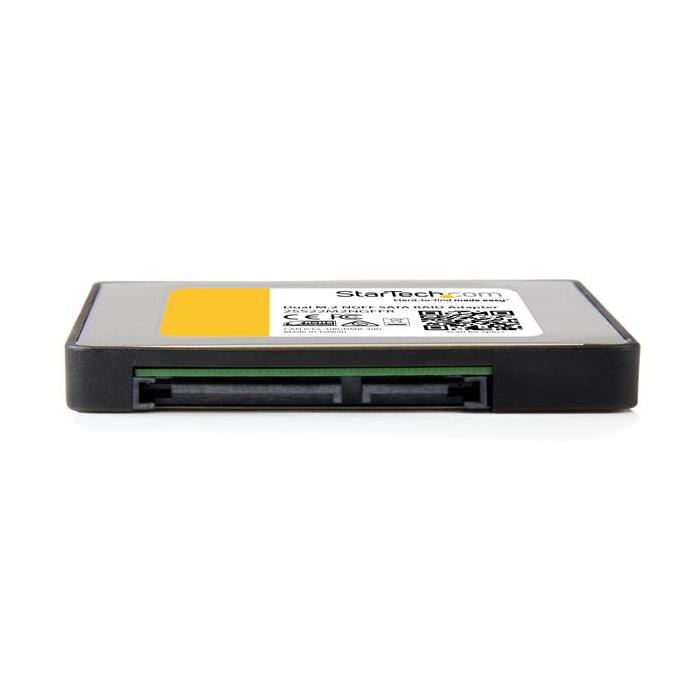

StarTech.com Dual M.2 NGFF SATA Adapter with RAID

51.00 €
42.15 € without VAT

More info

Brand: STARTECH.COM
SKU: 76323 PRC: 105285 EAN: 65030863315 PN: 25S22M2NGFFR

Description

StarTech.com Dual M.2 NGFF SATA Adapter with RAID, SATA, M.2, Black, Metallic, White, Yellow, 500000 h, ASMedia - ASM1092R, 6 Gbit/s

Specifications

Ports & interfaces

  • Host interface: SATA
  • Output interface: M.2
  • SATA revision: 3.0
  • Port multiplier: Yes

Design

  • Internal: No
  • Product colour: Black, Metallic, White, Yellow
  • Mean time between failures (MTBF): 500000 h

Features

  • Chipset: ASMedia - ASM1092R
  • Data transfer rate (max): 6 Gbit/s
  • RAID levels: 0, 1, BIG, JBOD

Operational conditions

  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -10 - 85 °C
  • Operating relative humidity (H-H): 5 - 95%

Technical details

  • Compliance certificates: RoHS

Weight & dimensions

  • Width: 68 mm
  • Depth: 98 mm
  • Height: 8 mm
  • Weight: 55 g

Packaging data

  • Quick installation guide: Yes
  • Package width: 131 mm
  • Package depth: 165 mm
  • Package height: 31 mm
  • Package weight: 118 g

Logistics data

  • Harmonized System (HS) code: 84733020

Other features

  • Material: Plastic, Steel
