StarTech.com SATA PCIe Card - 6 Port PCIe SATA Expansion Card - 6Gbps - Low/Full Profile - Stacked SATA Connectors - ASM1166 Non-Raid - PCI Express to SATA Converter
More info
Brand: STARTECH.COM
80.36 €
66.41 €
without VAT
incl. 21 % VAT
Stock available: 6 units.
Get it
on the
October 19
/
October 20
SKU:
89891
PRC:
341618
EAN:
65030893749
PN:
6P6G-PCIE-SATA-CARD
Description

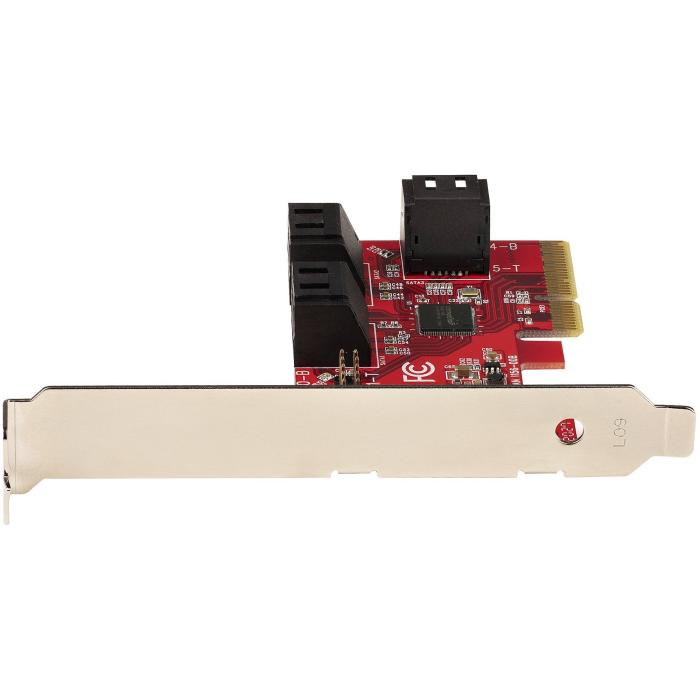

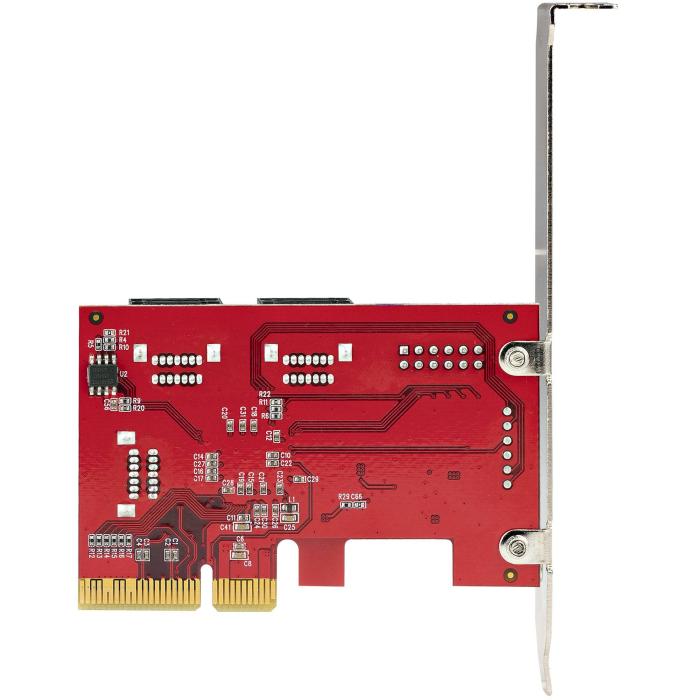

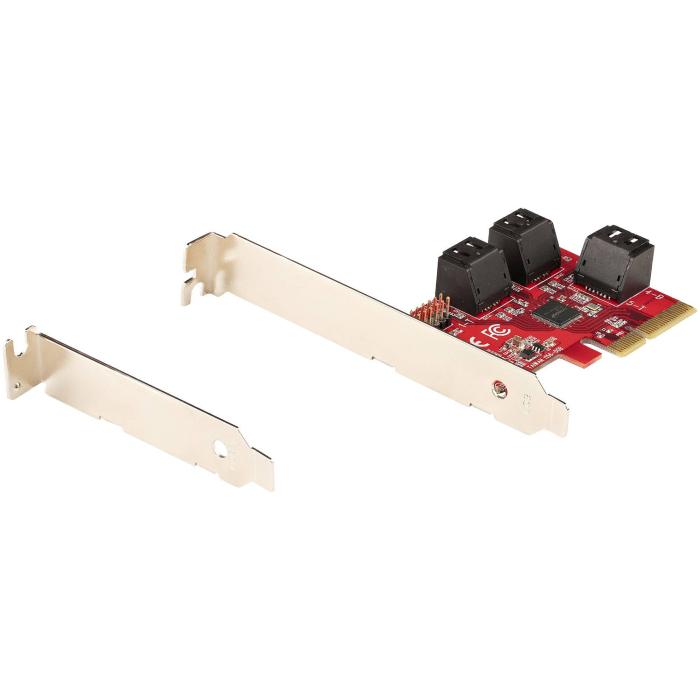

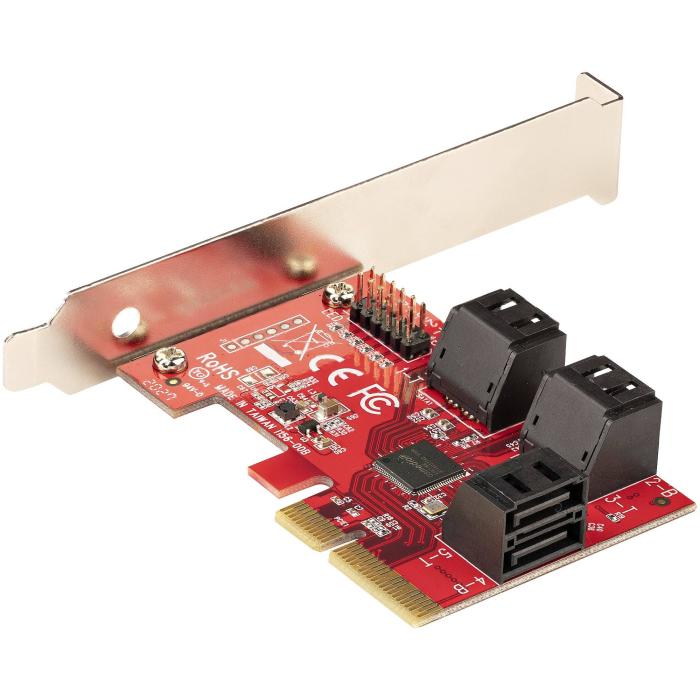

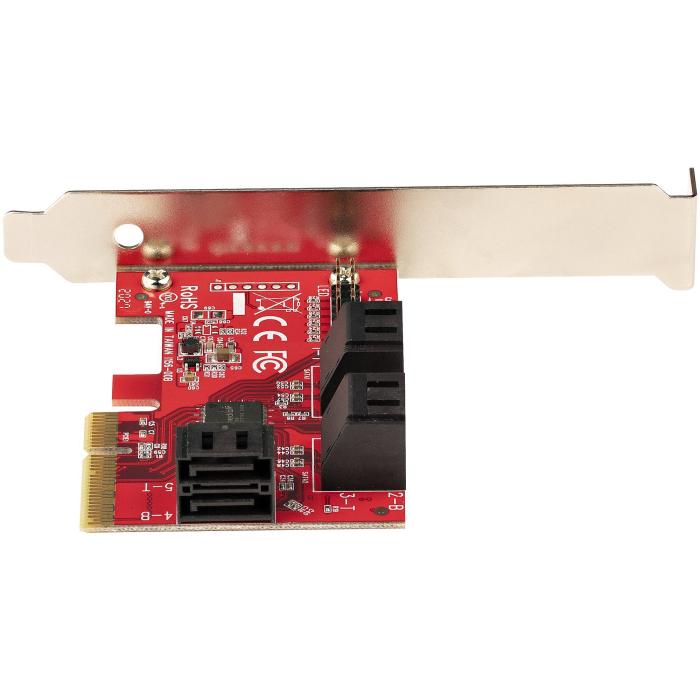

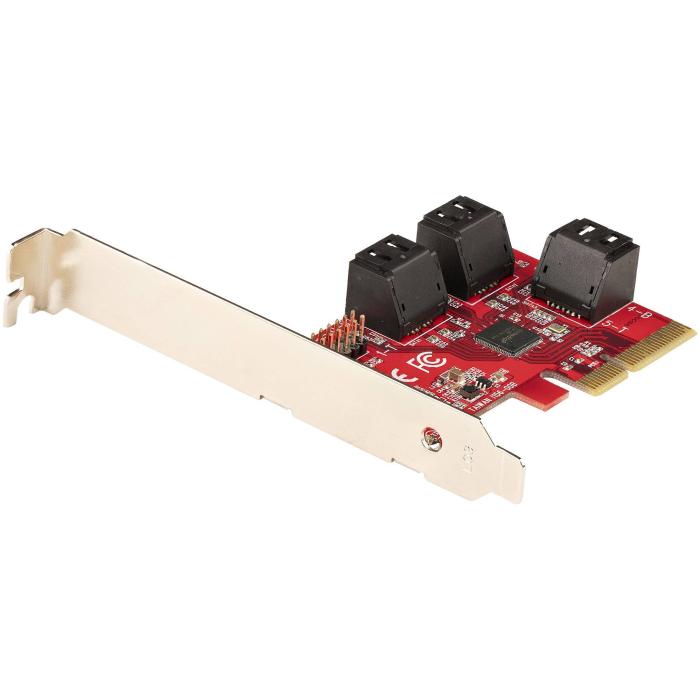

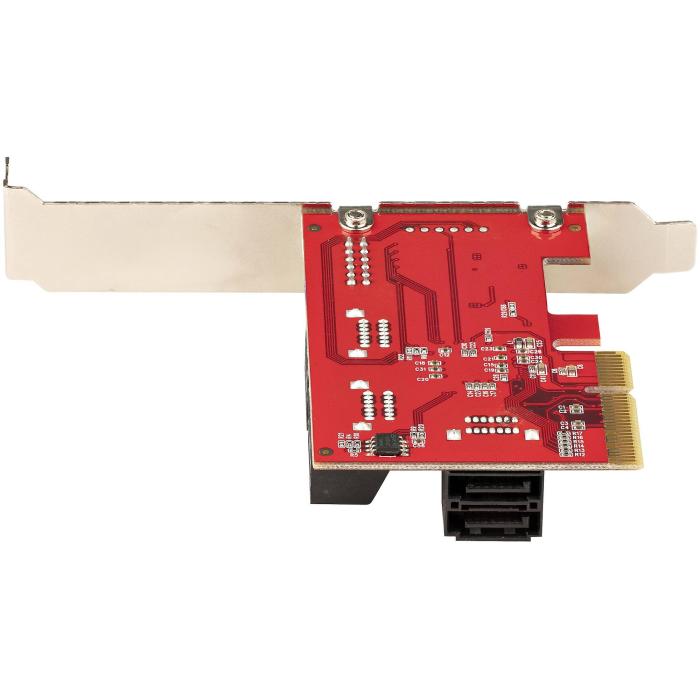

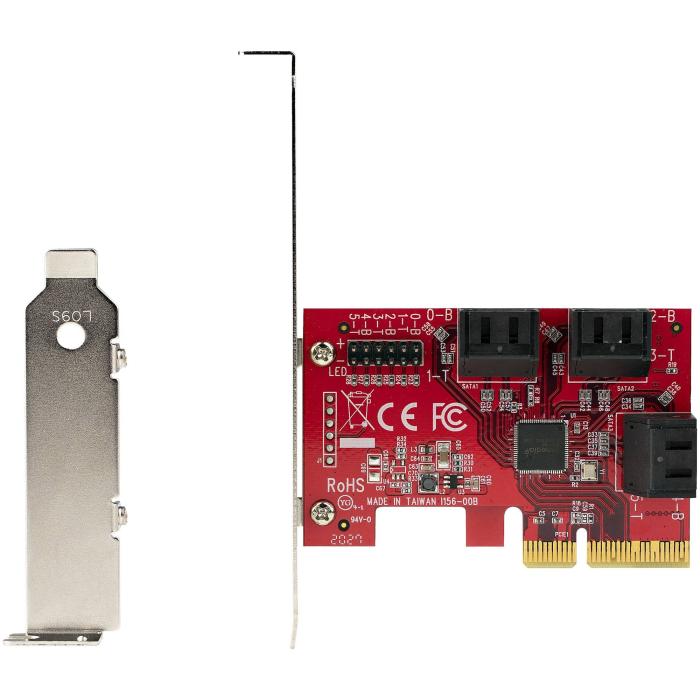

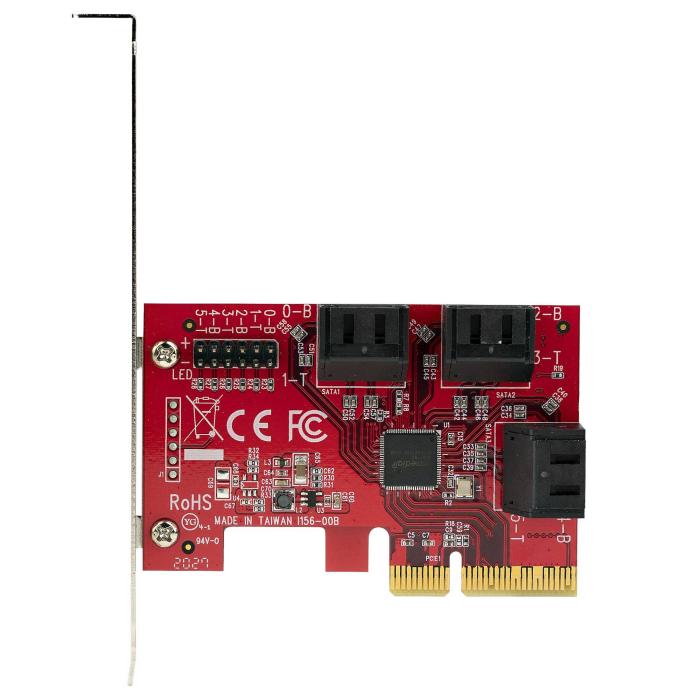

The StarTech.com PCIe controller card adds six internal SATA ports to your computer via a PCI Express host interface, with SATA 3.0 revision and a maximum data transfer rate of 6 Gbit/s. Its ASMedia ASM1166 chipset manages the stacked SATA connectors and supports port multiplier, S.M.A.R.T. support and TRIM support. It comes in red, with dimensions of 54 x 16 x 82 mm (width x height x depth) and a weight of 75 g. It operates within an operating temperature range of 0 to 85 °C and a relative humidity of 20 to 80%, and withstands storage temperatures of -25 to 85 °C. It is compatible with Windows Server 2012 R2, Windows Server 2016 and Windows Server 2019, as well as with Linux.
Specifications
Ports & interfaces
- Host interface: PCIe
- Output interface: SATA
- SATA revision: 3.0
- Internal SATA ports quantity: 6
- Port multiplier: Yes
Design
- Internal: Yes
- Product colour: Red
Features
- Chipset: ASMedia - ASM1166
- Data transfer rate (max): 6 Gbit/s
- S.M.A.R.T. support: Yes
- TRIM support: Yes
Operational conditions
- Operating temperature (T-T): 0 - 85 °C
- Storage temperature (T-T): -25 - 85 °C
- Operating relative humidity (H-H): 20 - 80%
System requirements
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Ma
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Weight & dimensions
- Width: 54 mm
- Depth: 82 mm
- Height: 16 mm
- Weight: 75 g
Packaging data
- Mounting brackets included: Yes
- Quick installation guide: Yes
- Package width: 142 mm
- Package depth: 170 mm
- Package height: 30 mm
- Package weight: 120 g
Logistics data
- Harmonized System (HS) code: 84733020
- Products per master (outer) case: 60 pc(s)
- Master (outer) case width: 500 mm
- Master (outer) case length: 370 mm
- Master (outer) case height: 500 mm
