StarTech.com Dual-Slot M.2 Drive to SATA Adapter for 2.5'' Drive Bay - RAID
More info
Brand: STARTECH.COM
49.98 €
41.31 €
without VAT
incl. 21 % VAT
Stock available: 5 units.
Get it
on the
October 16
/
October 19
SKU:
113276
PRC:
157197
EAN:
65030875141
PN:
S322M225R
Description

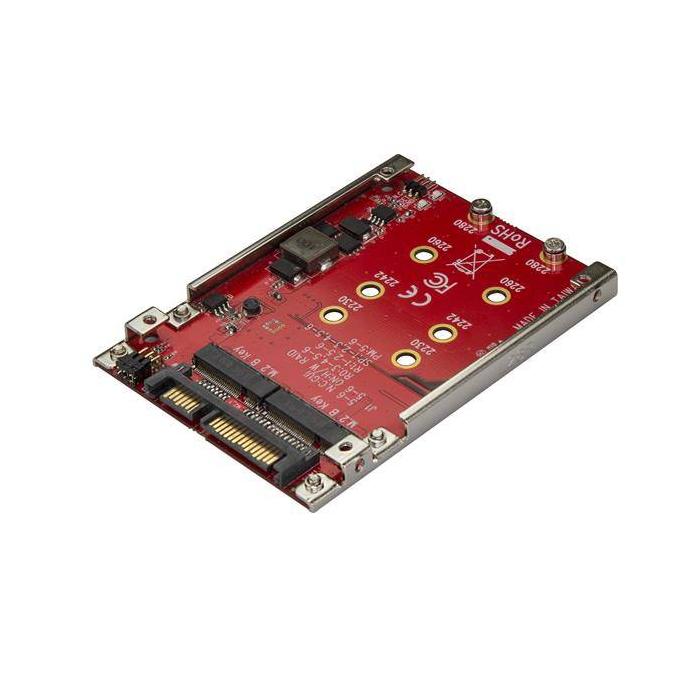

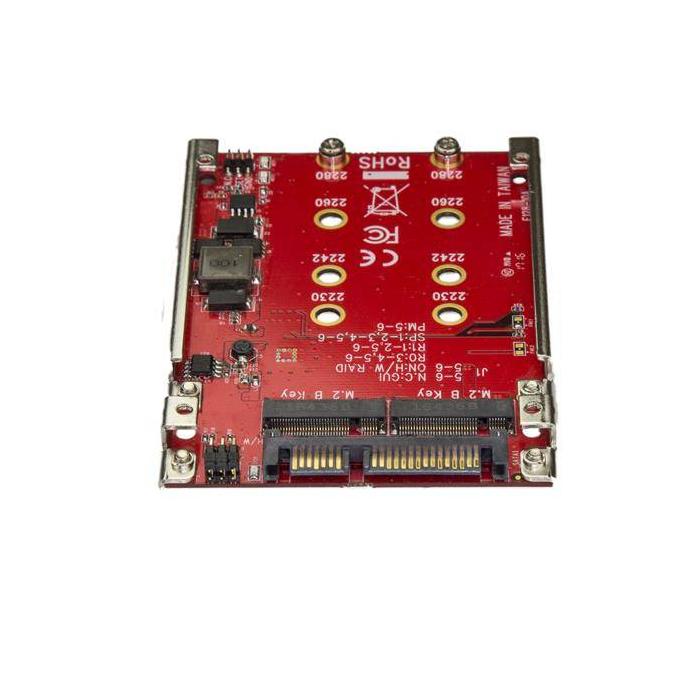

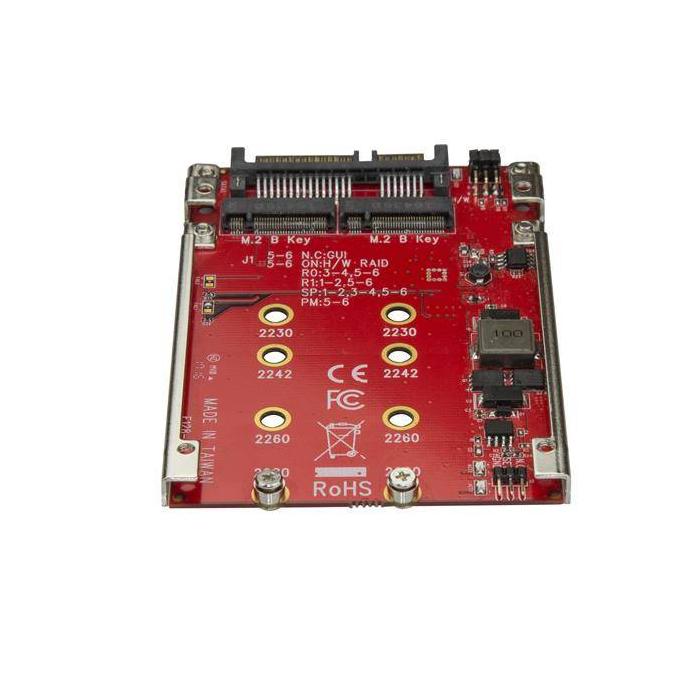

StarTech.com M.2 to SATA 2.5-inch drive bay adapter with ASMedia ASM1092R chipset, SATA host interface and M.2 output. It offers SATA 3.0 revision with a maximum data transfer rate of 6 Gbit/s and supports two SSD drives via two M.2 (B) slots. It supports RAID levels 0, 1, BIG and JBOD, and includes a port multiplier. It features S.M.A.R.T. and TRIM support, as well as plug and play and simplified installation. It is an internal adapter in red, weighing 41 g and measuring 70 x 7 x 100 mm. It includes mounting brackets, screws and quick installation guide, and is certified CE, FCC, REACH and TAA. Its operating temperature range is 5 to 50 °C.
Specifications
Ports & interfaces
- Host interface: SATA
- Output interface: M.2
- SATA revision: 3.0
- Number of M.2 (B) slots: 2
- Number of SSDs supported: 2
- Port multiplier: Yes
Design
- Internal: Yes
- Product colour: Red
- Hot-swap: No
- Easy to install: Yes
- Certification: CE, FCC, REACH, TAA
Features
- Chipset: ASMedia - ASM1092R
- Data transfer rate (max): 6 Gbit/s
- S.M.A.R.T. support: Yes
- TRIM support: Yes
- RAID levels: 0, 1, BIG, JBOD
- Plug and Play: Yes
Operational conditions
- Operating temperature (T-T): 5 - 50 °C
- Storage temperature (T-T): -25 - 70 °C
- Operating relative humidity (H-H): 15 - 90%
Technical details
- Compliance certificates: RoHS
Weight & dimensions
- Width: 70 mm
- Depth: 100 mm
- Height: 7 mm
- Weight: 41 g
Packaging data
- Mounting brackets included: Yes
- Screws included: Yes
- Quick installation guide: Yes
- Package width: 172 mm
- Package depth: 142 mm
- Package height: 30 mm
- Package weight: 110 g
Logistics data
- Harmonized System (HS) code: 84733020
