StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext
StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext, PCIe, SATA, ASMEDIA ASM1061, 48 bit, Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise..., 0 - 50 °C.
More infoBrand: STARTECH
49.00 €
40.50 €
without VAT
incl. 21 % VAT
Stock available: 14 units.
Get it
on the
October 14
/
October 15
SKU:
75011
PRC:
75059
EAN:
163120537860
PN:
PEXESAT322I
Description

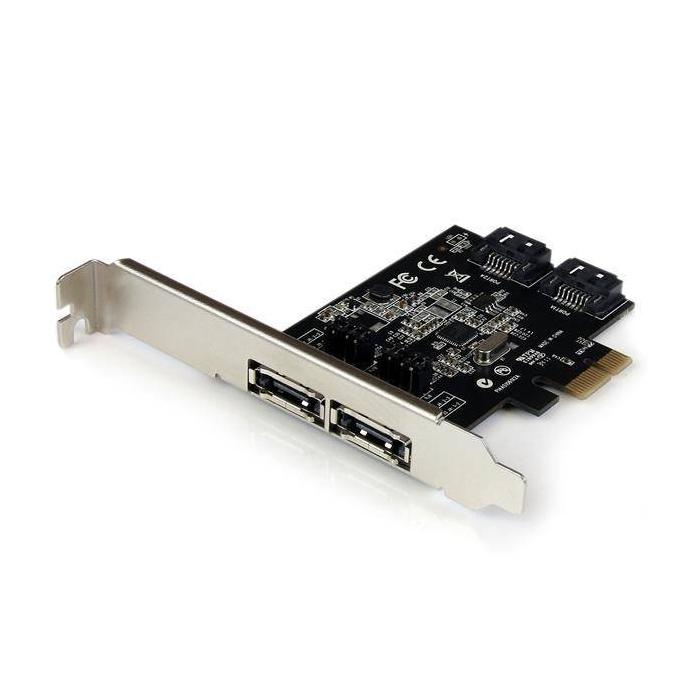

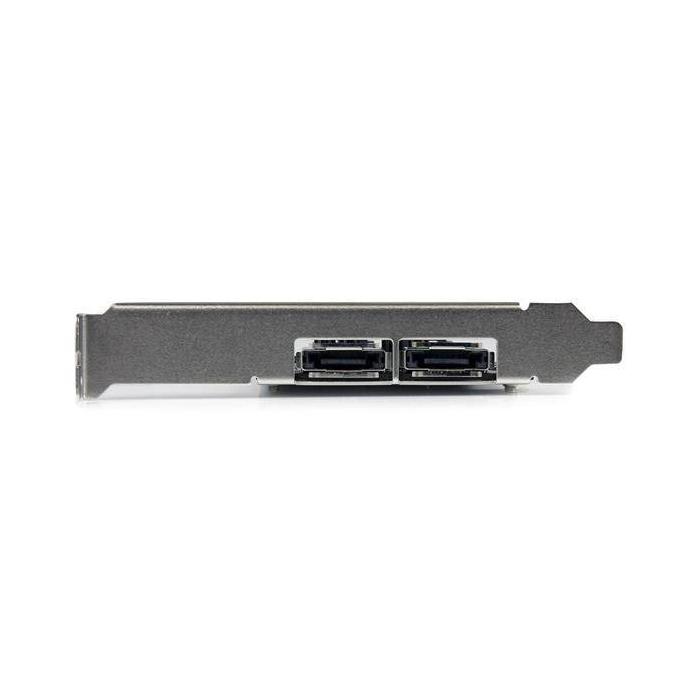

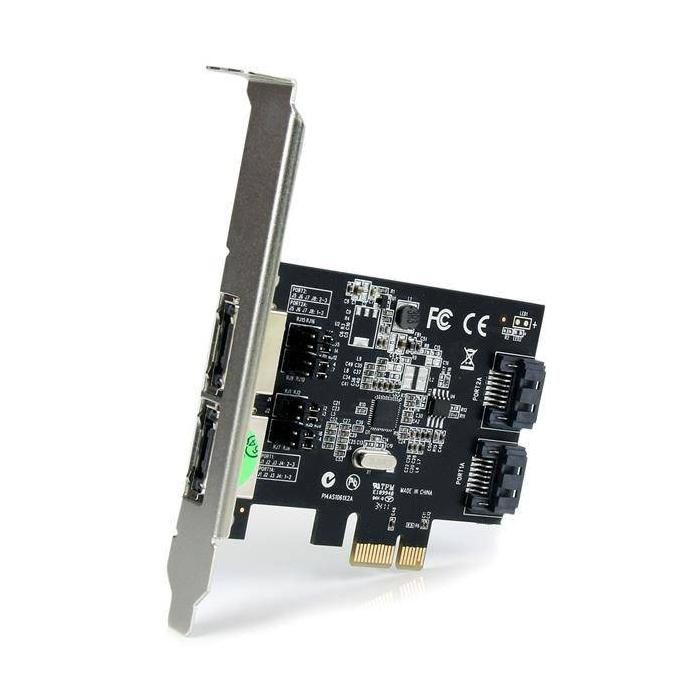

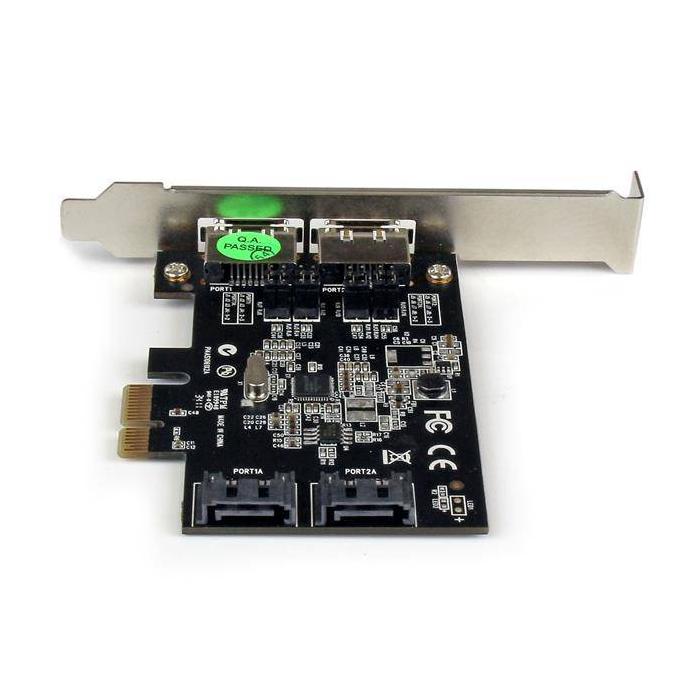

The StarTech.com controller card adds two SATA ports and two eSATA ports to your computer via a PCIe slot. It is based on the ASMEDIA ASM1061 chipset and offers a SATA output interface with SATA 3.0 revision, which allows a data transfer rate of 6 Gbps. It has two eSATA ports and two internal SATA ports, so you can connect both external drives and units and devices installed inside the case. It supports 48-bit logical block addressing, a useful detail for managing large-capacity volumes without addressing limitations. The card complies with the RoHS directive and operates within an operating temperature range of 0 to 50 °C, with an admissible relative humidity of between 5 and 85%. For storage, it supports temperatures from -20 to 60 °C. Its dimensions are 67 x 20 x 121 mm (width x height x depth) and it weighs 60 g.
Specifications
Ports & interfaces
- Internal: Yes
- Host interface: PCIe
- Output interface: SATA
- CardBus PCMCIA slot type: No
- SATA revision: 3.0
- eSATA ports quantity: 2
Performance
- Chipset: ASMEDIA ASM1061
- Logical block addressing (LBA) support: 48 bit
Design
- RoHS compliance: Yes
System requirements
- Windows operating systems supported: Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x6
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 5 - 85%
Weight & dimensions
- Width: 67 mm
- Depth: 121 mm
- Height: 20 mm
- Weight: 60 g
- Package width: 140 mm
- Package depth: 170 mm
- Package height: 30 mm
- Package weight: 100 g
Other features
- Data transfer rate: 6 Gbit/s
- Mac compatibility: No
- Compatible operating systems: Windows XP(32/64-bit)/ Server 2003(32/64-bit)/ Server 2008 R2/ Vista(32/64-bit)/ 7(32/64-bit)/ 8 (32/64-bit)
