Description

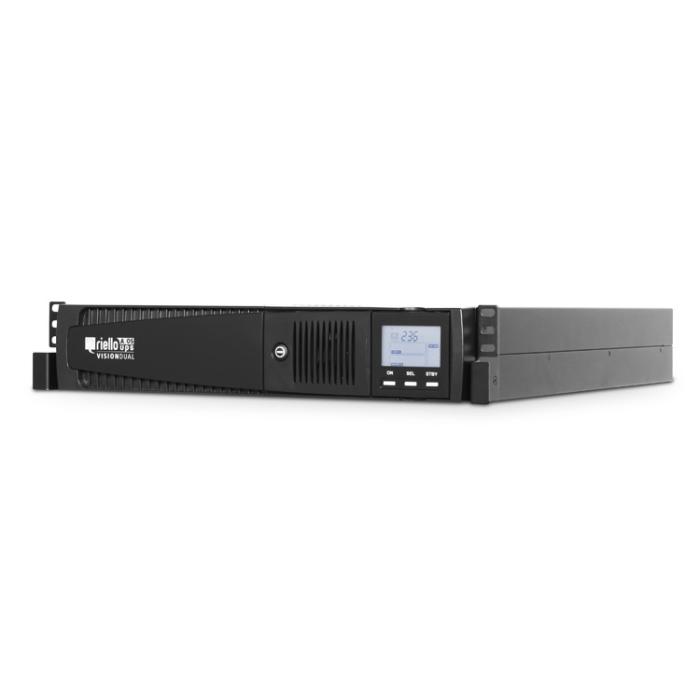

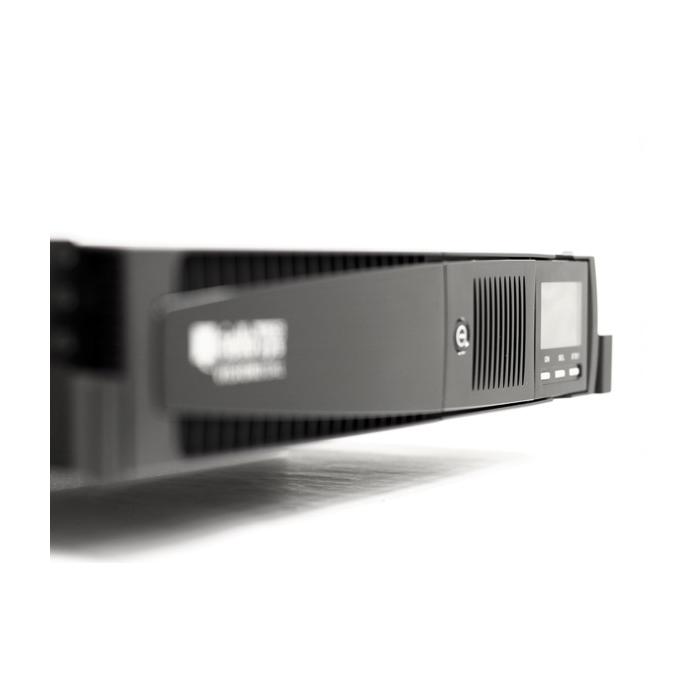

The RIELLO VSD 1100 is a line-interactive UPS with 1.1 kVA of power and 990 W of output, designed to protect sensitive computer equipment. It offers eight AC outputs via C13 couplers, a pure sine wave output, and an efficiency of 98.5%, with a power factor of 0.98 and a crest factor of 2.5:1. Its automatic voltage regulation (AVR) corrects input fluctuations between 220 and 240 V, while protections include overcurrent, overvoltage, short circuit, and undervoltage, with a surge absorption capacity of 300 J. It features a USB 2.0 port for monitoring, maintains a noise level of 40 dB, and limits output harmonic distortion to 8% and input harmonic distortion to 7%, operating at 50/60 Hz.
Specifications
Features
- UPS topology: Line-Interactive
- Output power capacity: 1.1 kVA
- Output power: 990 W
- Waveform: Sine
- Input operation voltage (min): 220 V
- Input operation voltage (max): 240 V
- Input frequency: 50/60 Hz
- Automatic Voltage Regulation (AVR): Yes
- Surge energy rating: 300 J
- Efficiency: 98.5%
- Power factor: 0.98
- Crest factor: 2.5:1
- Output voltage Total Harmonic Distortion (THD): 8%
- Input current Total Harmonic Distortion (THD): 7%
- Noise level: 40 dB
- Power protection features: Over current, Over voltage, Short circuit, Under voltage
Ports & interfaces

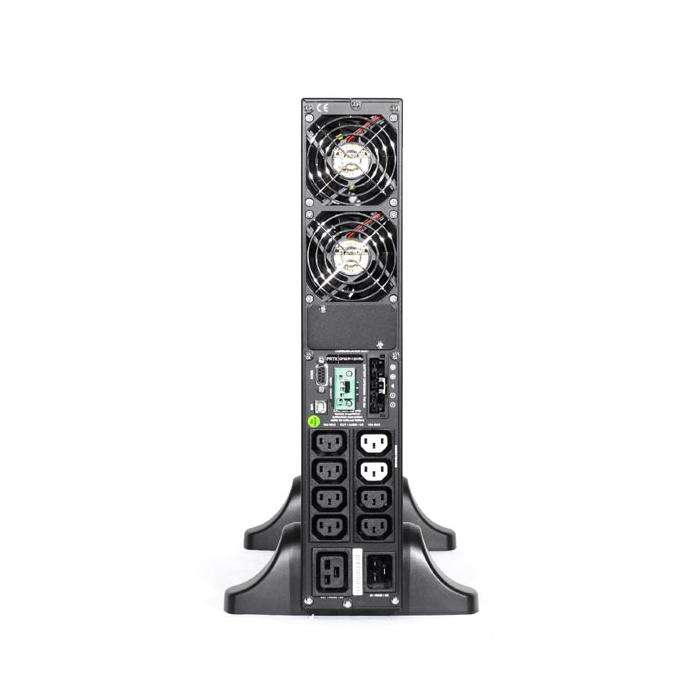

- AC outlet types: C13 coupler
- Power plug: C14 coupler
- AC outlets quantity: 8 AC outlet(s)
- USB 2.0 ports quantity: 1
- RS-232 ports: 1
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Battery recharge time: 4 h
Design
- Form factor: Rackmount/Tower
- Rack capacity: 2U
- Product colour: Black
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 6000 m
Certificates
- Certification: EN, CE
Safety regulation & standards
- Safety: EN
Weight & dimensions
- Width: 450 mm
- Depth: 425 mm
- Height: 87 mm
- Weight: 16.5 kg
Packaging data
- Package width: 240 mm
- Package depth: 500 mm
- Package height: 600 mm
- Package weight: 20 kg
Other features
- Number of phases: 1
