Description

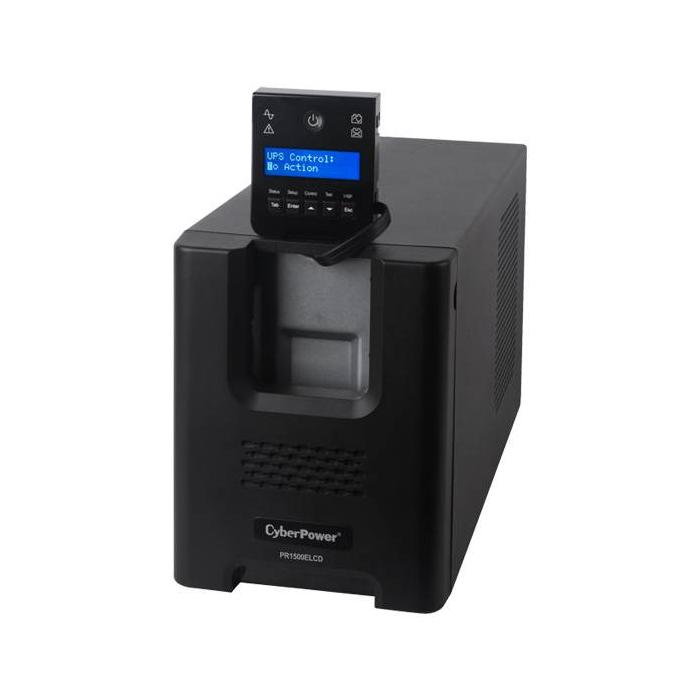

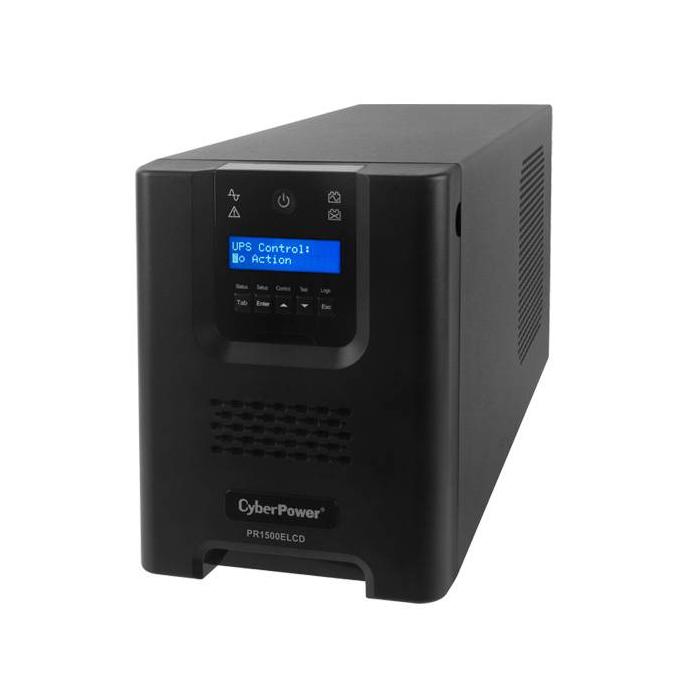

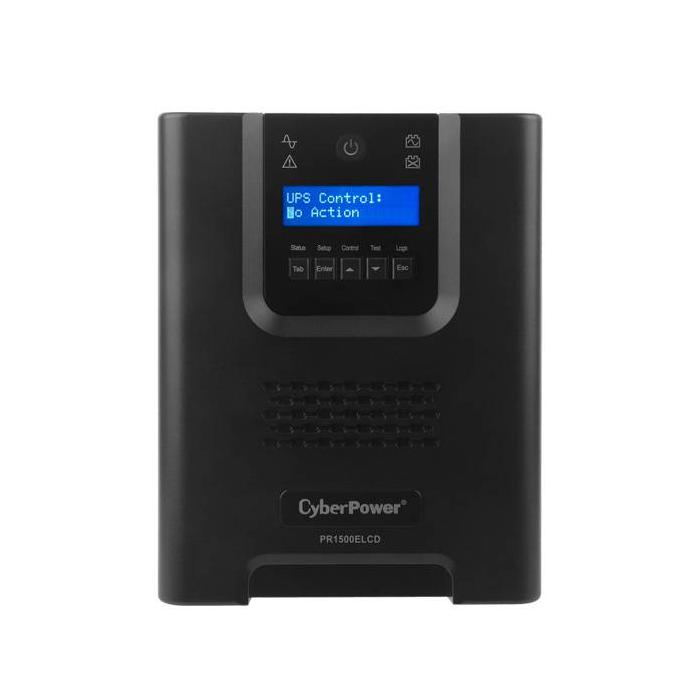

1500VA / 1350W, 47 - 63 Hz, IEC 320 C14, 8 x IEC

Specifications

Features


  • UPS topology: Line-Interactive
  • Output power capacity: 1.5 kVA
  • Output power: 1350 W
  • Waveform: Pure sine
  • Input operation voltage (min): 151 V
  • Input operation voltage (max): 301 V
  • Input frequency: 50/60 Hz
  • Output operation voltage (min): 230 V
  • Output operation voltage (max): 230 V
  • Output frequency: 50/60 Hz
  • Automatic Voltage Regulation (AVR): Yes
  • Maximum current: 10 A
  • Surge energy rating: 405 J
  • Response time: 4 ms
  • Power factor: 0.9
  • Emergency Power Off (EPO): Yes
  • EMI/RFI noise filtering: Yes
  • Surge protection: Yes
  • Power protection features: Overload
  • Audible alarm(s): Yes
  • Audible alarm modes: Alarm when on battery, Fault, Low battery alarm, Overload alarm

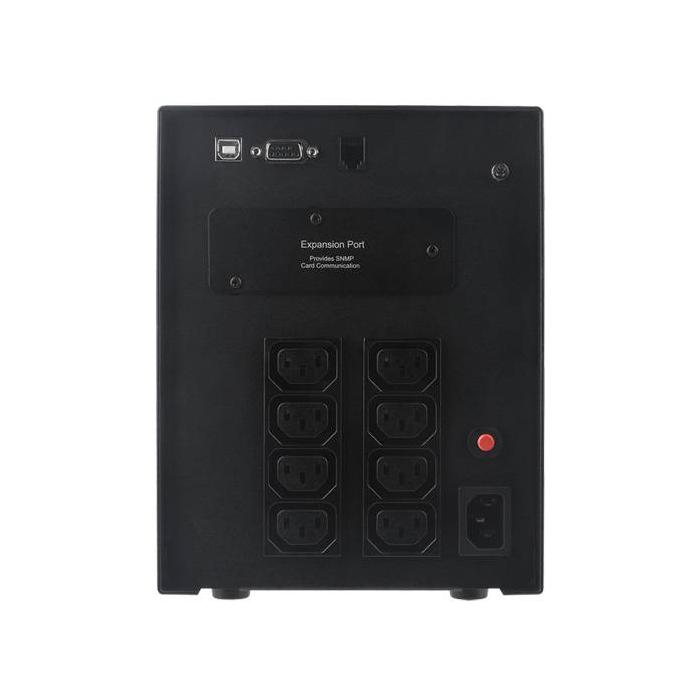

Ports & interfaces


  • AC outlet types: C13 coupler
  • Power plug: C14 coupler
  • AC outlets quantity: 8 AC outlet(s)
  • Number of output IEC jumpers: 1
  • USB port: Yes
  • USB 2.0 ports quantity: 1
  • Serial ports quantity: 1

Battery


  • Battery technology: Sealed Lead Acid (VRLA)
  • Number of batteries supported: 1
  • Typical backup time at full load: 5 min
  • Typical backup time at half load: 17 min
  • Battery recharge time: 8 h
  • Hot-swap battery: Yes

Design


  • Form factor: Tower
  • Housing material: Metal
  • Product colour: Black
  • Display type: LCD
  • LED indicators: Error, Operation

Operational conditions


  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -15 - 45 °C
  • Operating relative humidity (H-H): 0 - 95%
  • Storage relative humidity (H-H): 0 - 95%
  • Operating altitude: 0 - 3000 m
  • Non-operating altitude: 0 - 15000 m

Certificates


  • Certification: CE, EAC, RCM, RoHS

Packaging content


  • Cables included: USB cable

Weight & dimensions


  • Width: 170 mm
  • Depth: 432 mm
  • Height: 221 mm
  • Weight: 25.1 kg

Packaging data


  • Package width: 316 mm
  • Package depth: 579 mm
  • Package height: 360 mm
  • Package weight: 27 kg

Logistics data


  • Harmonized System (HS) code: 8504408590
  • Country of origin: China

Other features


  • Compatible operating systems: Windows 7 / Vista / XP / 2000, Server 2003 / 2008, Linux
  • Overload protection: Yes
