Description

3000 VA, 2700 Watts, IEC C13, Schuko, 13.04 A, 190 - 300 Vac, 1.5 m, 196 x 337 x 416 mm, 21.3 kg

Specifications

Features


  • UPS topology: Double-conversion (Online)
  • Output power capacity: 3 kVA
  • Output power: 2700 W
  • Waveform: Pure sine
  • Input operation voltage (min): 190 V
  • Input operation voltage (max): 230 V
  • Input frequency: 50/60 Hz
  • Output operation voltage (min): 208 V
  • Output operation voltage (max): 240 V
  • Output frequency: 50/60 Hz
  • Maximum current: 13.04 A
  • Surge energy rating: 370 J
  • Response time: 0 ms
  • Efficiency (ECO mode): 95%
  • Power factor: 0.9
  • Input power factor: 0.98
  • Crest factor: 3:1
  • Output voltage Total Harmonic Distortion (THD): 5%
  • EMI/RFI noise filtering: Yes
  • Surge protection: Yes
  • Power protection features: Overload
  • Audible alarm(s): Yes
  • Audible alarm modes: Battery replacement, Fault, Low battery alarm, Overload alarm

Ports & interfaces

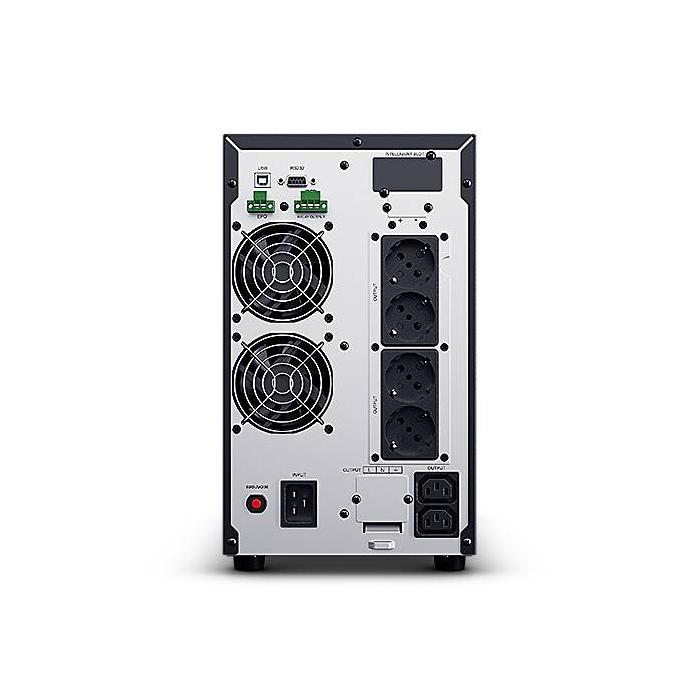

  • AC outlet types: C13 coupler
  • AC outlets quantity: 7 AC outlet(s)
  • USB port: Yes

Battery


  • Battery technology: Sealed Lead Acid (VRLA)
  • Number of batteries supported: 3
  • Typical backup time at full load: 4.2 min
  • Typical backup time at half load: 13.1 min
  • Battery recharge time: 4 h
  • Charging current: 1.5 A

Design


  • Form factor: Tower
  • Housing material: Metal
  • Cable length: 1.5 m
  • Built-in fan: Yes
  • Product colour: Black
  • Display type: LCD
  • LED indicators: Fault, Operation, Power, Status

Operational conditions


  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 50 °C
  • Operating relative humidity (H-H): 20 - 90%
  • Storage relative humidity (H-H): 10 - 90%
  • Operating altitude: 0 - 1500 m
  • Non-operating altitude: 0 - 1500 m

Certificates


  • Certification: RoHS, CE

Packaging content


  • Cables included: Power load cable, USB cable

Weight & dimensions


  • Width: 196 mm
  • Depth: 416 mm
  • Height: 337 mm
  • Weight: 21.3 kg

Packaging data


  • Package width: 295 mm
  • Package depth: 519 mm
  • Package height: 458 mm
  • Package weight: 30.4 kg

Logistics data


  • Harmonized System (HS) code: 8504408590
  • Country of origin: China
