Description

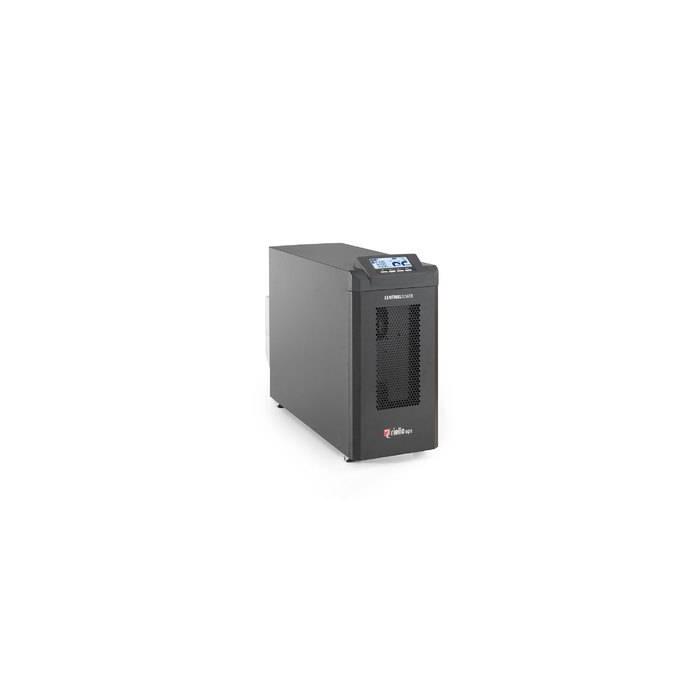

The Riello Sentinel Tower UPS with double-conversion online technology delivers an output power of 8000 W (8 kVA) with two AC outlets, ideal for protecting critical equipment in professional environments. Its online topology ensures a continuous sine wave and a response time of 20 ms, with a power factor of 0.98 and a crest factor of 3:1. It supports single-phase or three-phase input (1/3) with voltages between 220 V and 415 V, and provides a regulated output in the same range. With an efficiency of 95% in online mode and 98% in ECO mode, this unit operates with a noise level of 48 dB and protects against overload, overheating, undervoltage, overcurrent, and short circuit.
Specifications
Features
- UPS topology: Double-conversion (Online)
- Output power capacity: 8 kVA
- Output power: 8000 W
- Waveform: Sine
- Input operation voltage (min): 220 V
- Input operation voltage (max): 415 V
- Input frequency: 50/60 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 415 V
- Response time: 20 ms
- Number of input phases: 1/3
- Efficiency (On-line mode): 95%
- Efficiency (ECO mode): 98%
- Power factor: 0.98
- Crest factor: 3:1
- Noise level: 48 dB
- Surge protection: Yes
- Power protection features: Overheating, Under voltage, Over current, Short circuit
Ports & interfaces
- AC outlet types: IEC 320
- AC outlets quantity: 2 AC outlet(s)
- USB port: Yes
- Serial interface: Yes
- Serial interface type: RS-232
- RS-232 ports: 1
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Battery recharge time: 6 h
Design
- Form factor: Tower
- Cooling type: Active
- Built-in fan: Yes
- Product colour: Aluminium, Black
- Display type: LCD
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
Certificates
- Compliance certificates: RoHS
- Certification: IEC EN 62040-1; EMC IEC EN 62040-2 IEC 62040-3 VFI - SS - 111
Sustainability
- Sustainability compliance: Yes
Weight & dimensions
- Width: 250 mm
- Depth: 698 mm
- Height: 500 mm
- Weight: 78 kg
Packaging data
- Package width: 300 mm
- Package depth: 800 mm
- Package height: 702 mm
- Package weight: 84 kg
