Description

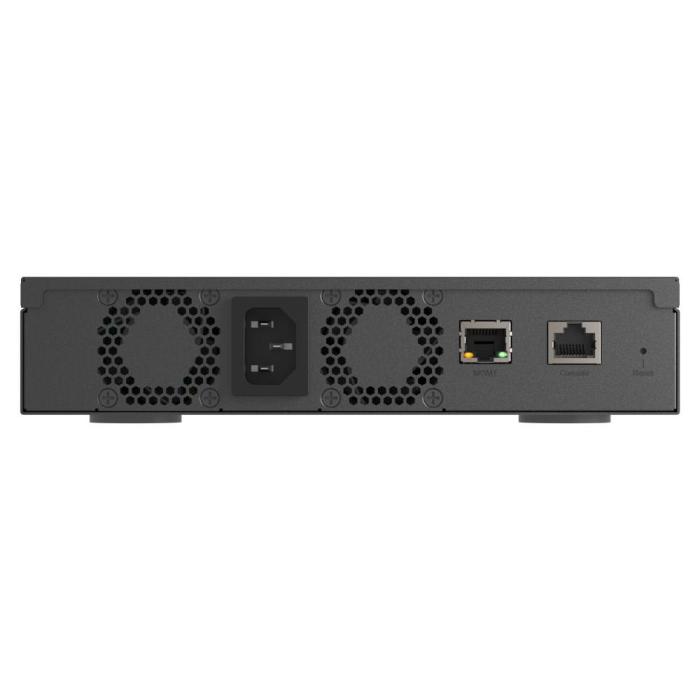

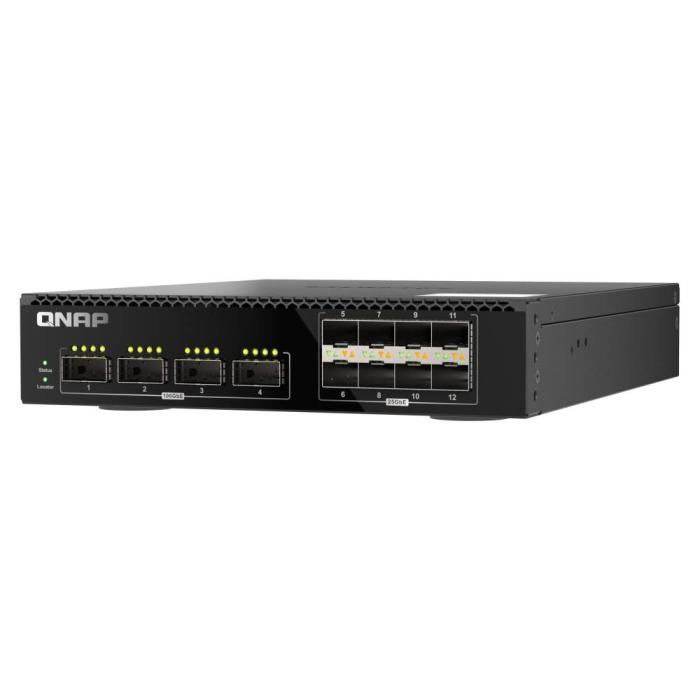

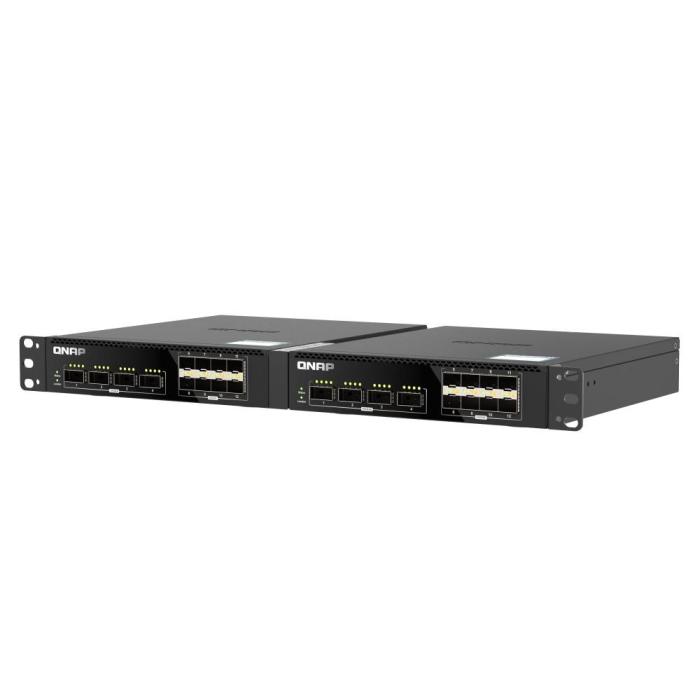

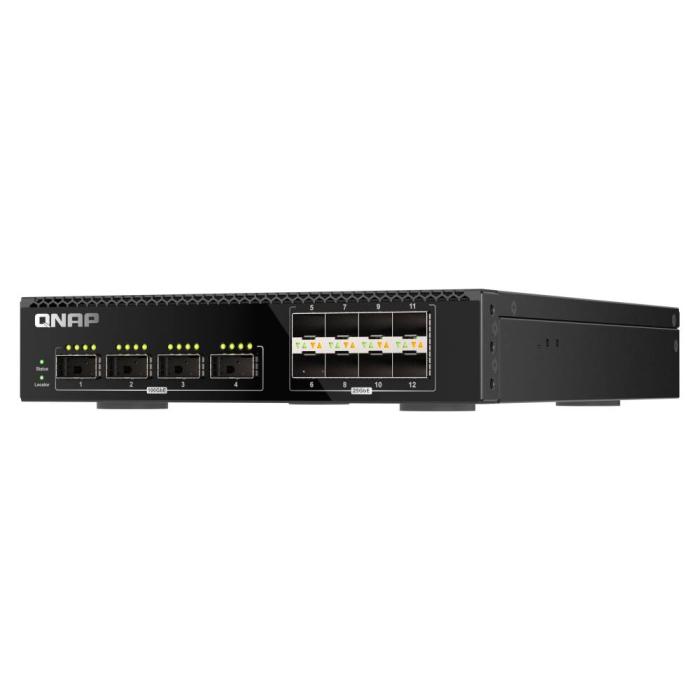

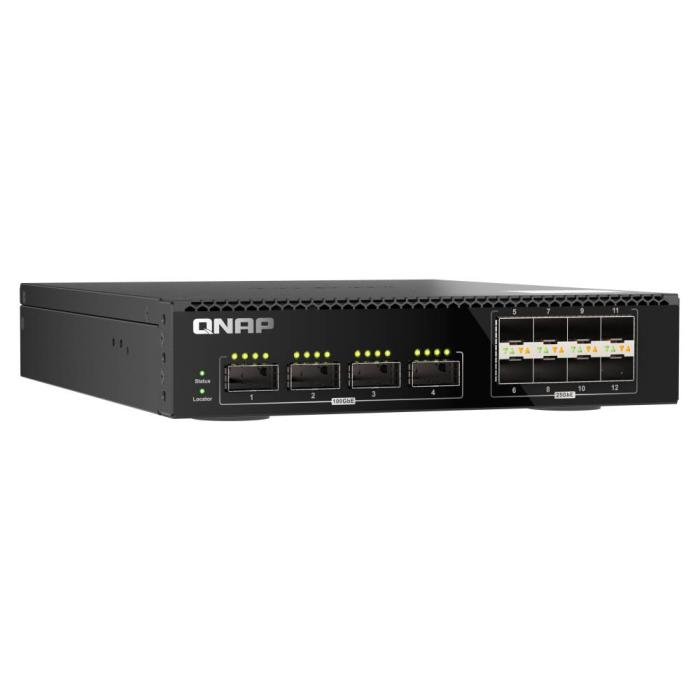

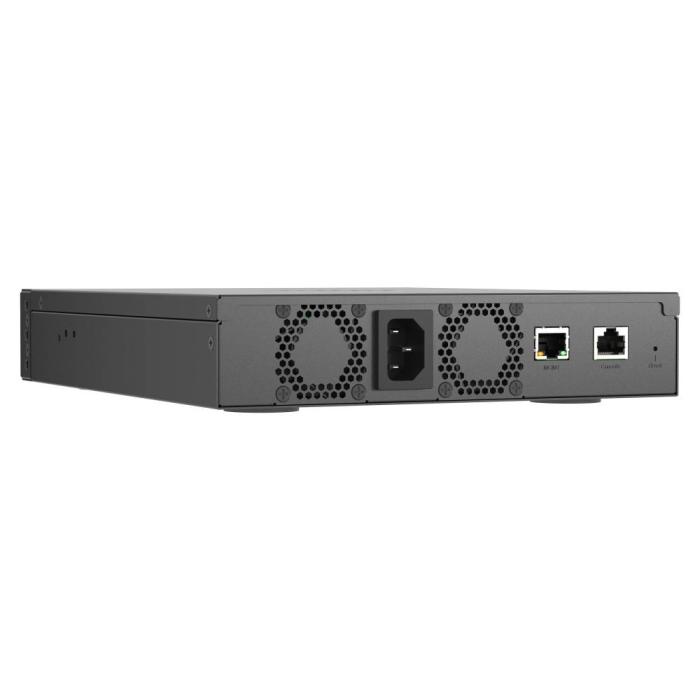

The QNAP QSW-M7308R-4X is a managed Layer 2 switch in 1U rack-mount format, designed to centralise connectivity in a demanding network. It brings together 12 basic RJ-45 Ethernet switching ports, 4 QSFP28 ports and 8 SFP28 ports, plus an RJ-45 console port and a management port. It reaches a switching capacity of 1200 Gbit/s and a throughput of 600 Gbit/s, with a MAC address table of 32000 entries and 9000 Jumbo frames. It incorporates two fans and a reset button, and its maximum power consumption is 100 W. With dimensions of 207 x 43.3 x 248.8 mm (width x height x depth) and a weight of 1.78 kg, it integrates easily into a communications cabinet.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 12
- Number of management ports: 1 pc(s)
- Console port: RJ-45
- QSFP28 ports quantity: 4
- SFP28 ports quantity: 8
Network
- Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802
- 10G support: No
Data transmission
- Switching capacity: 1200 Gbit/s
- Throughput: 600 Gbit/s
- MAC address table: 32000 entries
- Jumbo frames support: Yes
- Jumbo frames: 9000
Design
- Rack mounting: Yes
- Form factor: 1U
- Reset button: Yes
- Number of fans: 2 fan(s)
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 100 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Other features
- Warranty period: 2 year(s)
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 207 mm
- Depth: 248.8 mm
- Height: 43.3 mm
- Weight: 1.78 kg
Packaging data
- Package weight: 2.63 kg
Certificates
- Compliance certificates: BSMI, CE, Federal Communications Commission (FCC), VCCI
