Description

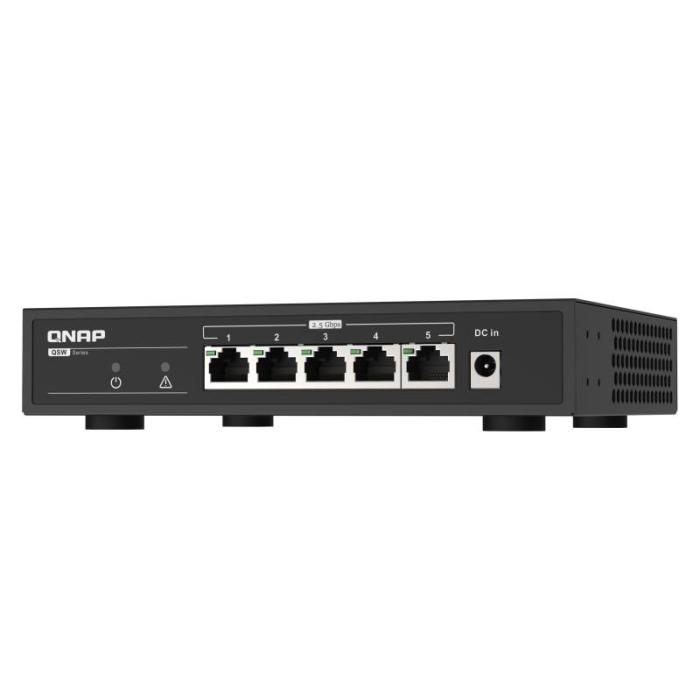

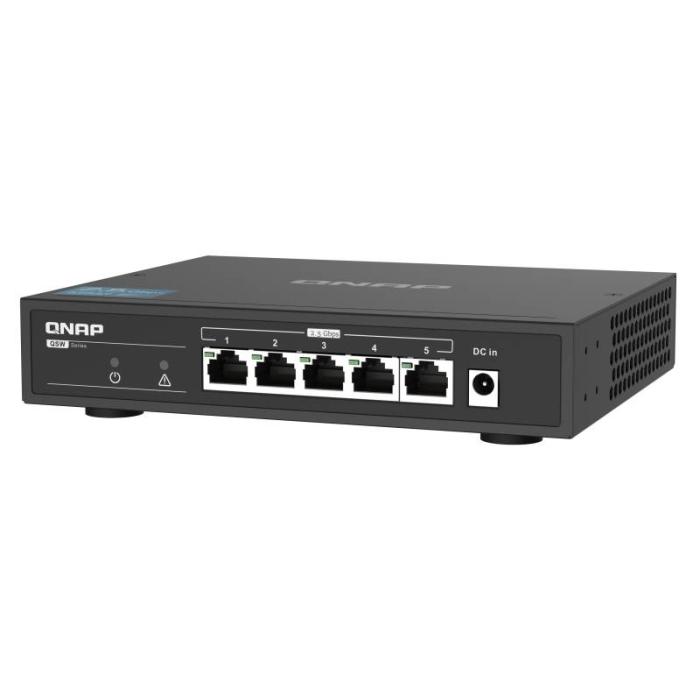

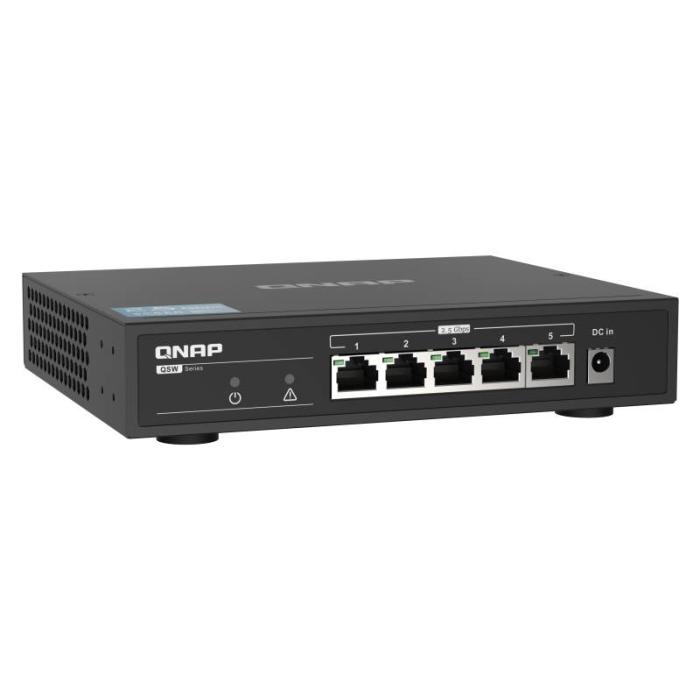

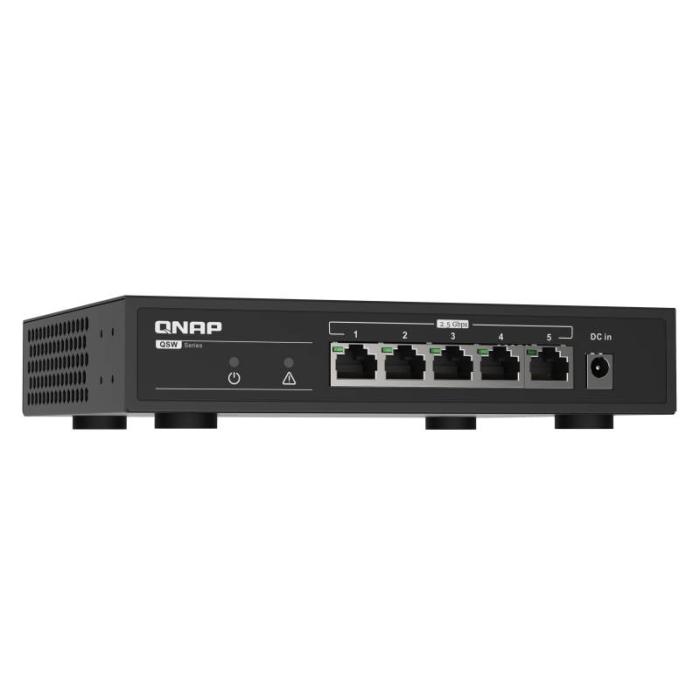

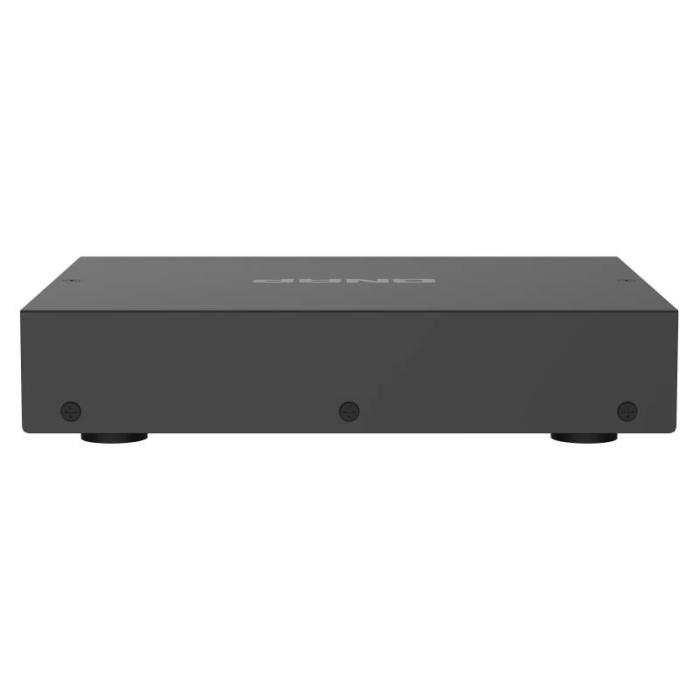

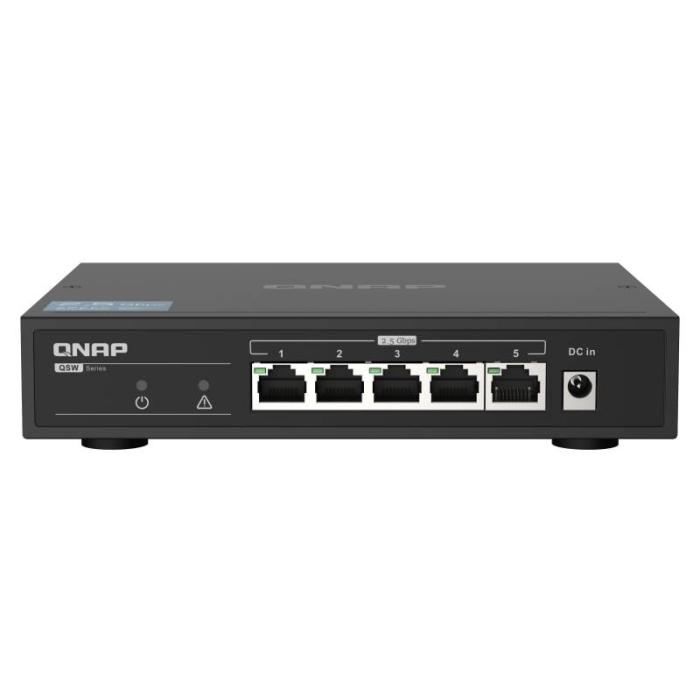

The QNAP QSW-1105-5T switch is an unmanaged device with five Gigabit Ethernet RJ-45 ports (10/100/1000), designed to expand a home or small office network without the need for configuration. Each port supports transfer speeds of up to 2500 Mbit/s and offers a switching capacity of 25 Gbit/s alongside a throughput of 12.5 Gbit/s. It complies with the IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u and IEEE 802.3x standards, and includes a MAC address table of 16000 entries and Jumbo frame support of 9000. Loop protection helps maintain network stability, and the LED indicators show activity, link, speed, status and power. It operates silently as it does not incorporate fans. It comes in black, with dimensions of 180 x 34 x 145 mm (width x height x depth) and a weight of 577 g.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- 2.5G Ethernet (copper) ports quantity: 5
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Ethernet LAN data rates: 2500 Mbit/s
Data transmission
- Switching capacity: 25 Gbit/s
- Throughput: 12.5 Gbit/s
- MAC address table: 16000 entries
- Jumbo frames support: Yes
- Jumbo frames: 9000
Security
- Loop protection: Yes
Design
- Rack mounting: No
- Product colour: Black
- LED indicators: Activity, Link, Power, Speed, Status
- Number of fans: 0 fan(s)
- Electromagnetic compatibility: Class B
Performance
- Fanless: Yes
Power
- Power source: DC
- DC input voltage: 12 V
- Power consumption (max): 12 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 180 mm
- Depth: 145 mm
- Height: 34 mm
- Weight: 577 g
Certificates
- Certification: FCC, CE, BSMI, VCCI, LVD,CCC,KCC,ASNZ
Logistics data
- Harmonized System (HS) code: 85176990
