Description

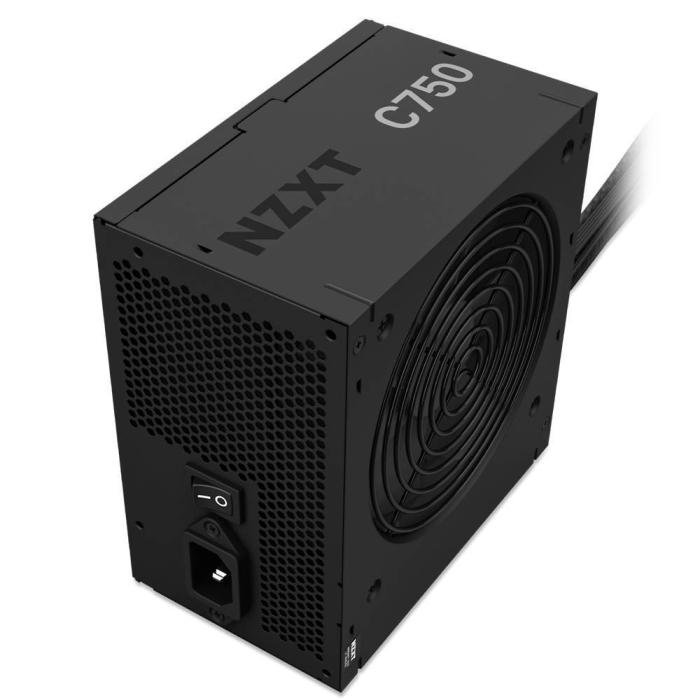

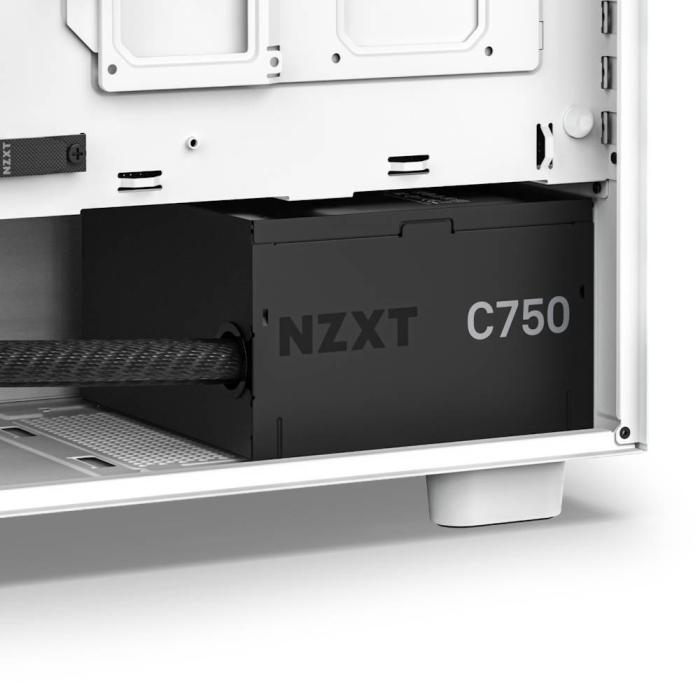

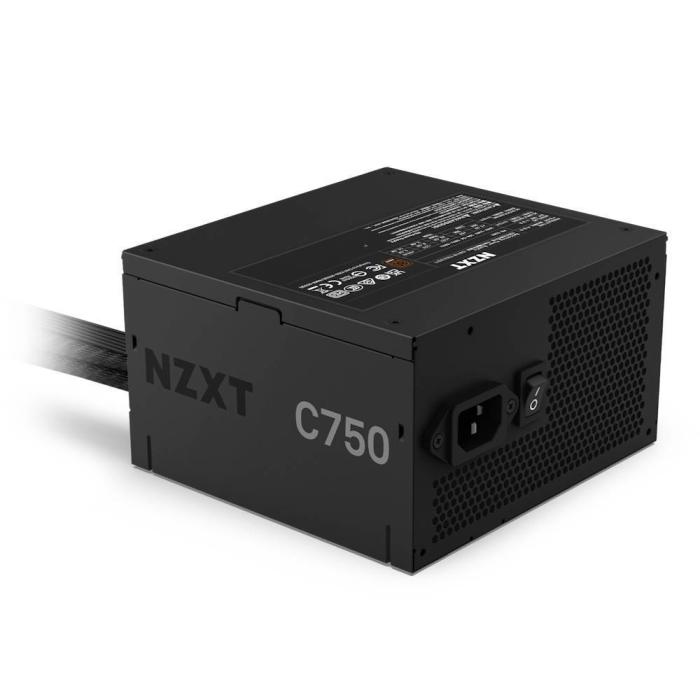

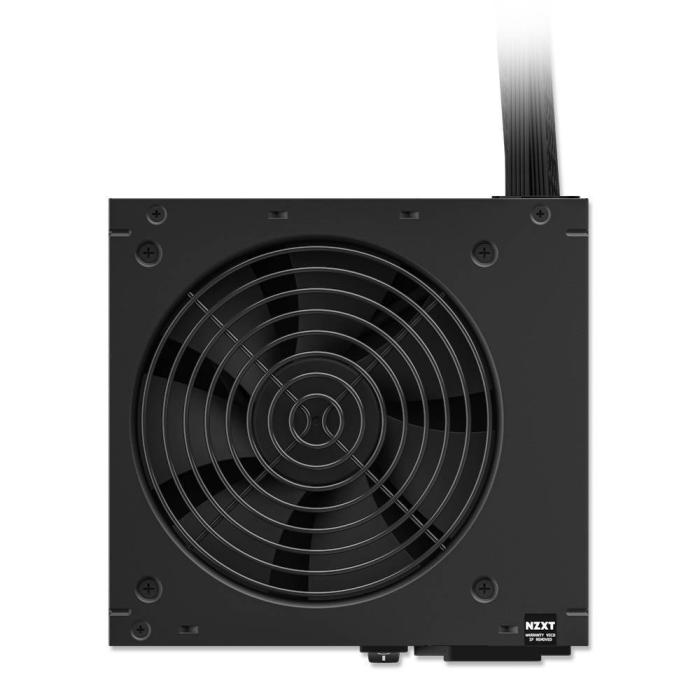

NZXT C750 power supply unit with 750 W total power and ATX format in black, designed to deliver stable power to your system. It offers 88.97% efficiency and accepts an input voltage of 115-240 V with a frequency of 50/60 Hz, adapting to different electrical environments. It includes a 4+4-pin EPS connector, and its +12 V rails deliver up to 62.5 A, with combined power outputs of 120 W for +3.3 V and +5 V, and 12.5 W for +5 VSB. With a maximum input current of 10 A at 110 V or 5 A at 220 V, this unit ensures reliable performance for demanding components.
Specifications
Power
- Total power: 750 W
- AC input voltage: 115 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 10 - 5 A
- Maximum input current (@110V): 10 A
- Maximum input current (@220V): 5 A
- Combined power (+3.3V): 120 W
- Combined power (+12V): 750 W
- Combined power (+5V): 120 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 62.5 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 12.5 A
- Efficiency: 88.97%
Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Motherboard power cable length: 60 cm
- SATA power cable length: 150, 500 mm
- Peripheral (Molex) power connectors (4-pin): 4
- Peripheral (Molex) power cable length: 150, 500 mm
- EPS power connector (4+4 pin): Yes
- CPU power connector (4+4 pin): Yes
- ATX Power connector (24-pin): Yes
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Supported motherboard form factors: ATX
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.53
- EPS version: 2.92
- Noise level: 39.92 dB
- Bearing technology: FDB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan speed: 2160 - 2640 RPM
- Illumination: No
- Built-in display: No
- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Certificates
- Compliance certificates: CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, WEEE
Weight & dimensions
- Width: 150 mm
- Depth: 180 mm
- Height: 86 mm
Technical details
- Sustainable technologies and materials: Steel, PCB, plastic
Logistics data
- Warranty period: 3 year(s)
