Description
The NZXT C1200 Gold power supply, in its black 1200 W version, delivers a combined power of 1200 W on the +12 V rail with a maximum output current of 100 A, ideal for demanding setups. With active power factor correction and a 24-pin ATX connector, it supports input voltages from 100 to 240 V with frequencies of 50/60 Hz. It includes eight SATA connectors with 150 and 500 mm cables, four 4-pin Molex connectors, and two 6+2-pin PCI Express connectors, thereby covering the power needs of current components. This ATX unit offers efficient power management for your system.
Specifications
Power
- Total power: 1200 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 7 - 14 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 120 W
- Combined power (+12V): 1200 W
- Combined power (+5V): 15 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 22 A
- Max output current (+12V): 100 A
- Max output current (-12V): 0.3 A

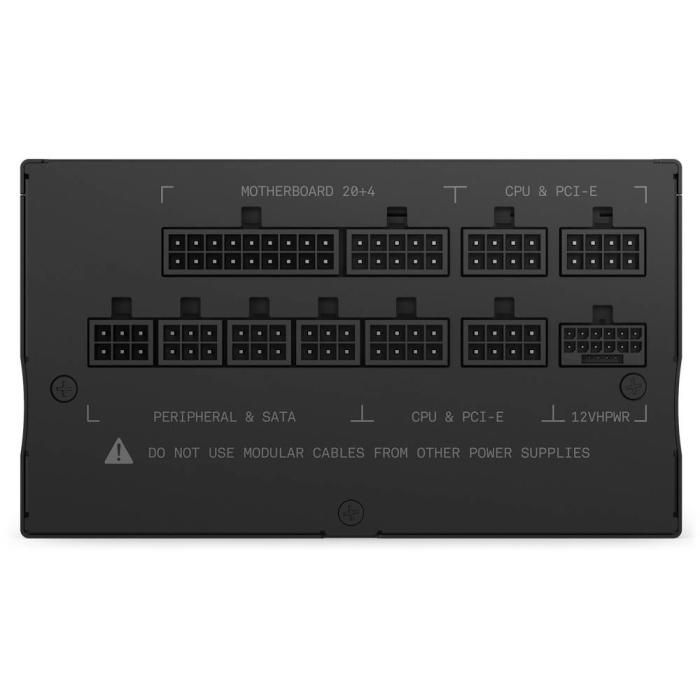

Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Number of SATA power connectors: 8
- SATA power cable length: 150, 500 mm
- Peripheral (Molex) power connectors (4-pin): 4
- Peripheral (Molex) power cable length: 150, 500 mm
- PCI Express power connectors (6+2 pin): 2
- CPU power connector (4+4 pin): Yes
- ATX Power connector (24-pin): Yes
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.0
- Bearing technology: FDB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Fan diameter: 13.5 cm
- Number of fans: 1 fan(s)
- Fan speed: 0 - 2300 RPM
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
Packaging content
- Cables included: AC
Weight & dimensions
- Width: 150 mm
- Depth: 150 mm
- Height: 86 mm
Logistics data
- Warranty period: 10 year(s)
