Description

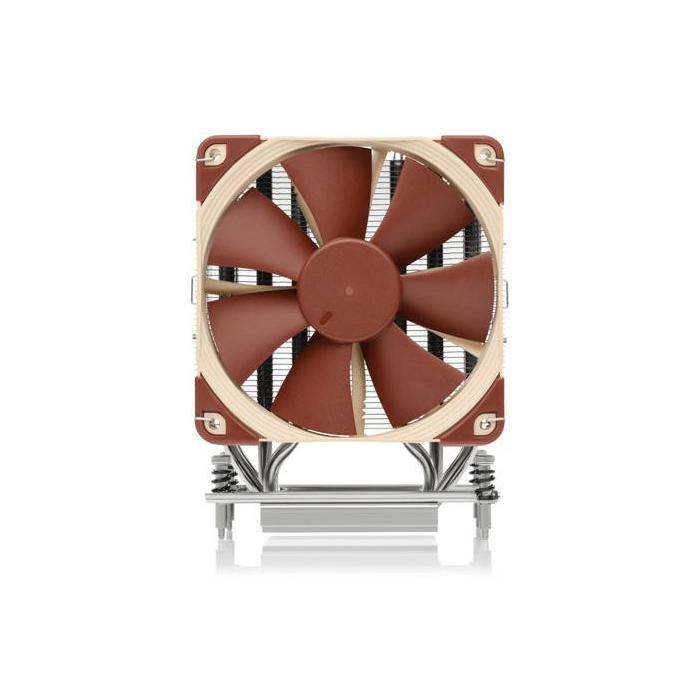

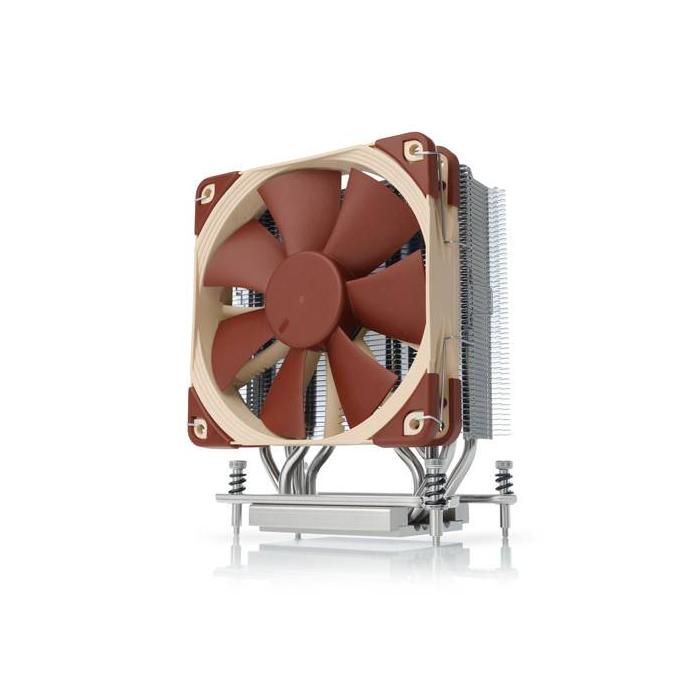

Noctua NH-U12S TR4-SP3 processor cooler with 12 cm fan and beige finish, specifically designed for the TR4 and SP3 sockets of AMD Ryzen processors. Its aluminium tower with copper base and self-regulating oil-pressure SSO bearing keeps temperatures under control, while the seven-blade fan reaches up to 1500 RPM with an airflow of 93.4 m³/h and only 22.4 dB of noise. Includes PWM support to adjust speed from 300 RPM, and with the low-noise adaptor LNA reduces the maximum to 1200 RPM with 18.6 dB and 74.3 m³/h, ideal for quiet and efficient operation.
Specifications
Performance
- Suitable location: Processor
- Type: Cooler
- Fan diameter: 12 cm
- Supported processor sockets: Socket TR4, Socket SP3
- Compatible processor series: AMD Ryzen
- Rotational speed (min): 300 RPM
- Rotational speed (max): 1500 RPM
- Rotational speed with LNA (max): 1200 RPM
- Noise level (high speed): 22.4 dB
- Noise level with LNA (max): 18.6 dB
- Airflow: 93.4 m³/h
- Airflow with LNA (max): 74.3 m³/h
- Pulse-width modulation (PWM) support: Yes
- Bearing type: Self-Stabilising Oil-pressure Bearing (SSO)
Design
- Product colour: Aluminium, Beige
- Material: Copper
- Number of fans: 1 fan(s)
- Number of fan blades: 7
- Fins material: Aluminium
- Fan connector: 4-pin
Power
- Power supply: 0.6 W
- Voltage: 12 V
Weight & dimensions
- Width: 125 mm
- Depth: 71 mm
- Height: 158 mm
- Weight: 870 g
- Fan dimensions (W x D x H): 120 x 120 x 25 mm
- Heatsink weight: 695 g
- Package width: 212 mm
- Package depth: 106 mm
- Package height: 196 mm
- Package weight: 1.26 kg
Packaging content
- Low-noise adaptor (LNA): Yes
Other features
- Heatsink dimensions (W x D x H): 125 x 45 x 158 mm
- Mean time to failure (MTTF): 150000 h
Logistics data
- Harmonized System (HS) code: 84733080
- Master (outer) case gross weight: 13.6 kg
- Products per master (outer) case: 10 pc(s)
