Description

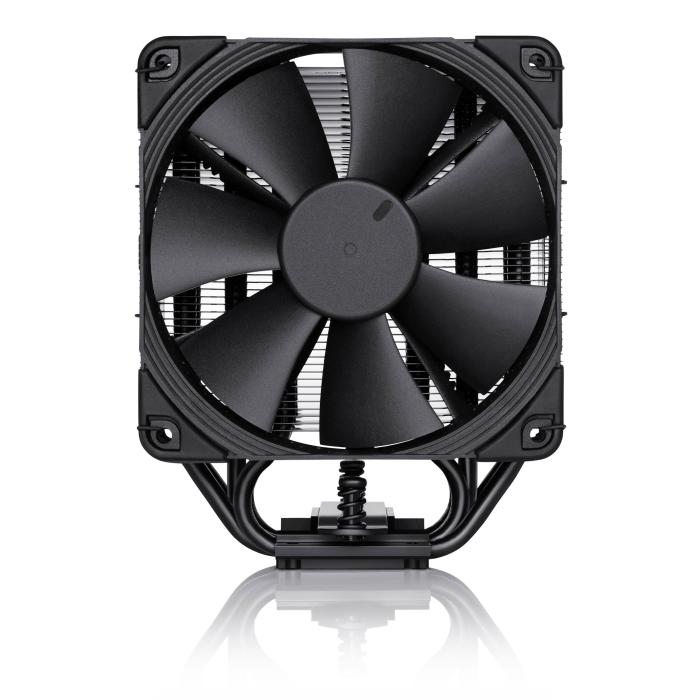

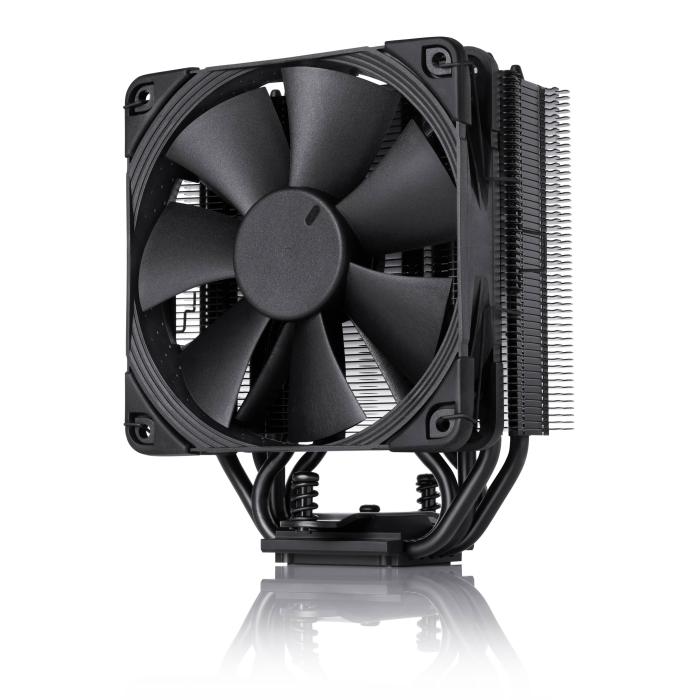

The Noctua NH-U12S chromax.black processor cooler is designed to keep the temperature of AMD processors, Intel Core i3, i5, i7, i9, Celeron and Pentium in check with a 12 cm fan that rotates between 300 and 1500 RPM via PWM control. Its airflow reaches 93.4 m³/h and, with the included LNA adapter, it drops to 74.3 m³/h while the noise level decreases from 22.4 dB to 18.6 dB. The construction combines aluminium fins with a copper base and an SSO bearing, ensuring efficient dissipation in its black finish. With a maximum air pressure of 2.61 mmH2O, this heatsink offers balanced performance for desktop setups.
Specifications
Performance
- Suitable location: Processor
- Type: Cooler
- Fan diameter: 12 cm
- Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 2011 (Socket R), LGA 2011-v3 (Socket
- Compatible processor series: AMD A, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
- Rotational speed (min): 300 RPM
- Rotational speed (max): 1500 RPM
- Rotational speed with LNA (max): 1200 RPM
- Noise level (high speed): 22.4 dB
- Noise level with LNA (max): 18.6 dB
- Airflow: 93.4 m³/h
- Airflow with LNA (max): 74.3 m³/h
- Maximum air pressure: 2.61 mmH2O
- Maximum air pressure with LNA: 1.83 mmH2O
- Pulse-width modulation (PWM) support: Yes
- Bearing type: Self-Stabilising Oil-pressure Bearing (SSO)
Design
- Product colour: Black
- Base plate material: Copper
- Number of fans: 1 fan(s)
- Fins material: Aluminium
- Fan connector: 4-pin
Power
- Power supply: 0.6 W
- Rated voltage: 12 V
Weight & dimensions
- Width: 125 mm
- Depth: 71 mm
- Height: 158 mm
- Weight: 755 g
- Fan dimensions (W x D x H): 120 x 120 x 25 mm
- Heatsink weight: 580 g
- Package width: 169 mm
- Package depth: 145 mm
- Package height: 212 mm
- Package weight: 1.44 kg

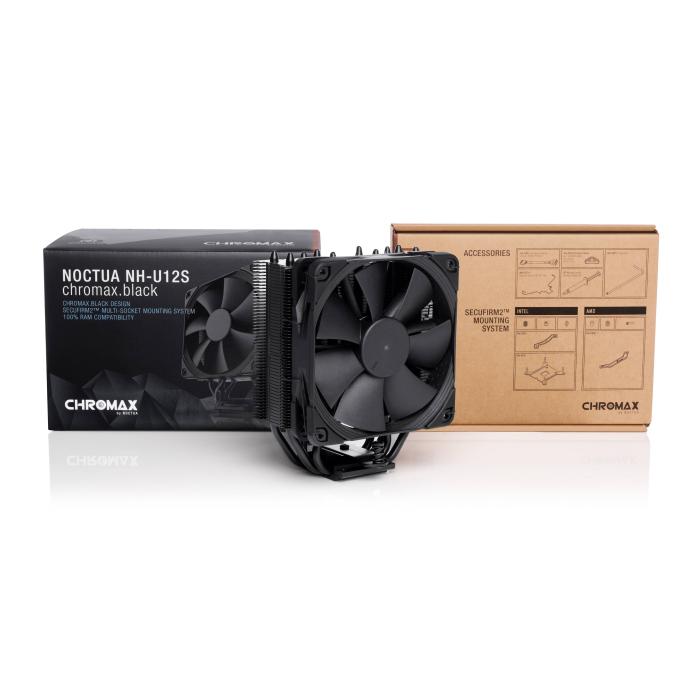

Packaging content
- Package type: Box
Other features
- Heatsink dimensions (W x D x H): 125 x 45 x 158 mm
- Mean time to failure (MTTF): 150000 h
Logistics data
- Harmonized System (HS) code: 84733080
- Master (outer) case width: 355 mm
- Master (outer) case length: 440 mm
- Master (outer) case height: 460 mm
- Master (outer) case gross weight: 18.5 kg
- Products per master (outer) case: 12 pc(s)
