Description
The Noctua NF-F12 PWM chromax.black.swap case fan, in a 12 cm format with a black finish, is designed for cooling computer cases and works with 4-pin PWM control, adjusting its speed between 300 and 1500 RPM. Its SSO bearing (Self-Stabilising Oil-pressure Bearing) and metallic construction offer an airflow of 93.4 m³/h and a maximum static pressure of 2.61 mmH2O, with a power consumption of 0.6 W at 12 V and 0.05 A. With dimensions of 25 mm in height and a package weight of 312 g, this model integrates the features of the chromax series for a sober aesthetic.
Specifications
Performance
- Suitable location: Computer case
- Type: Fan
- Fan diameter: 12 cm
- Rotational speed (min): 300 RPM
- Rotational speed (max): 1500 RPM
- Airflow: 93.4 m³/h
- Maximum air pressure: 2.61 mmH2O
- Pulse-width modulation (PWM) support: Yes
- Bearing type: Self-Stabilising Oil-pressure Bearing (SSO)
Design
- Product colour: Black
- Material: Metal
- Fan connector: 4-pin
Power
- Power consumption (typical): 0.6 W
- Voltage: 12 V
- Maximum current: 0.05 A
Weight & dimensions
- Width: 120 mm
- Depth: 120 mm
- Height: 25 mm
- Package width: 185 mm
- Package depth: 35 mm
- Package height: 215 mm
- Package weight: 312 g

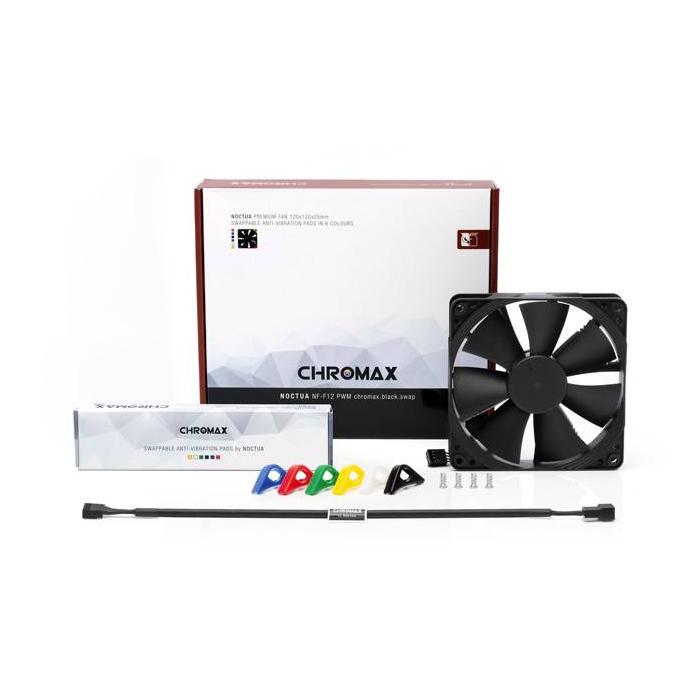

Packaging content
- Screws included: Yes
- Number of screws: 4
Other features
- Mounting hole pattern (W x D): 105 x 105 mm
- Noise level: 22.4 dB
- Mean time to failure (MTTF): 150000 h
