Description

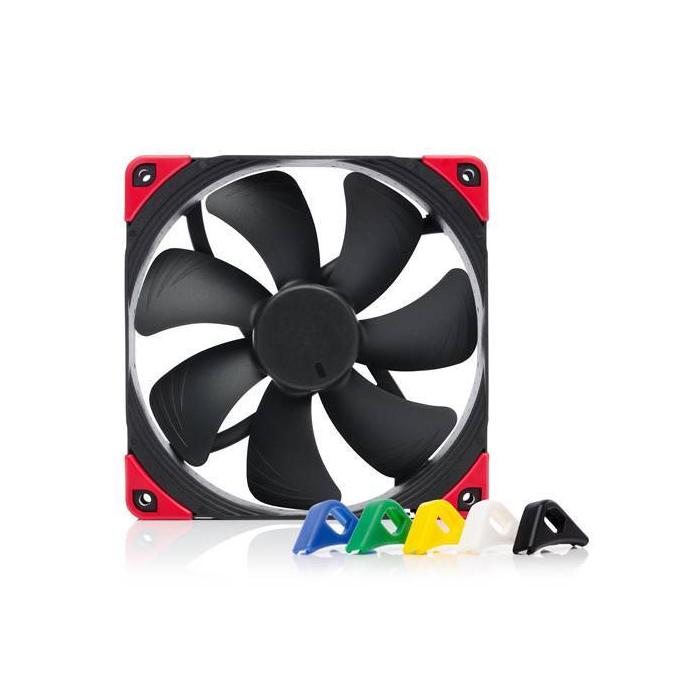

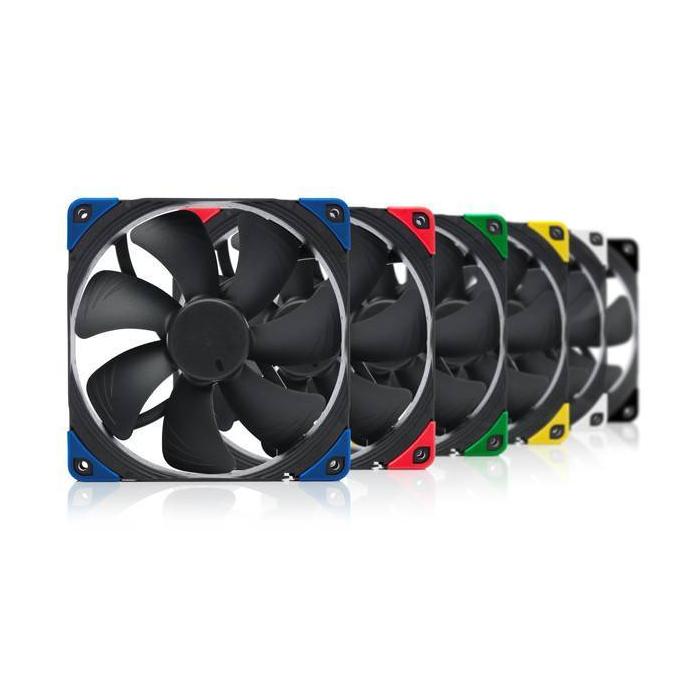

Noctua NF-A14 PWM chromax.black.swap 14 cm case fan in black, designed for the computer case, with a rotation speed range of 300 to 1500 RPM and an airflow of 140.2 m³/h. This model incorporates an SSO bearing (Self-Stabilising Oil-pressure Bearing) and is compatible with PWM control via its 4-pin connector, offering a maximum pressure of 2.08 mmH2O. With a power consumption of 1.56 W at 12 V and a maximum current of 0.13 A, its metallic structure reaches a height of 25 mm. The package includes dimensions of 215 mm in height and a total weight of 328 g, designed for easy installation in tower cooling systems.
Specifications
Performance
- Suitable location: Computer case
- Type: Fan
- Fan diameter: 14 cm
- Rotational speed (min): 300 RPM
- Rotational speed (max): 1500 RPM
- Airflow: 140.2 m³/h
- Maximum air pressure: 2.08 mmH2O
- Pulse-width modulation (PWM) support: Yes
- Bearing type: Self-Stabilising Oil-pressure Bearing (SSO)
Design
- Product colour: Black
- Material: Metal
- Fan connector: 4-pin
Power
- Power consumption (typical): 1.56 W
- Voltage: 12 V
- Maximum current: 0.13 A
Weight & dimensions
- Width: 140 mm
- Depth: 140 mm
- Height: 25 mm
- Package width: 185 mm
- Package depth: 35 mm
- Package height: 215 mm
- Package weight: 328 g

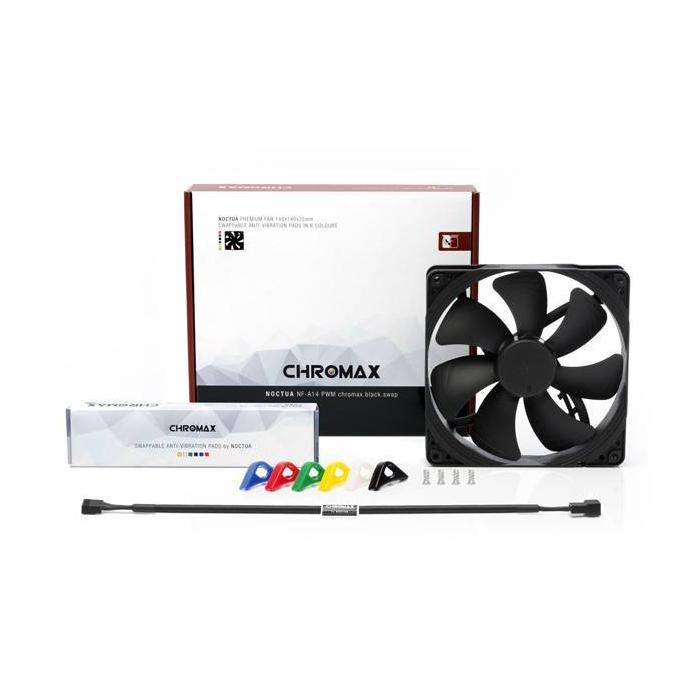

Packaging content
- Screws included: Yes
- Number of screws: 4
Other features
- Mounting hole pattern (W x D): 124.5 x 124.5 mm
- Noise level: 24.6 dB
- Mean time to failure (MTTF): 150000 h
