Description

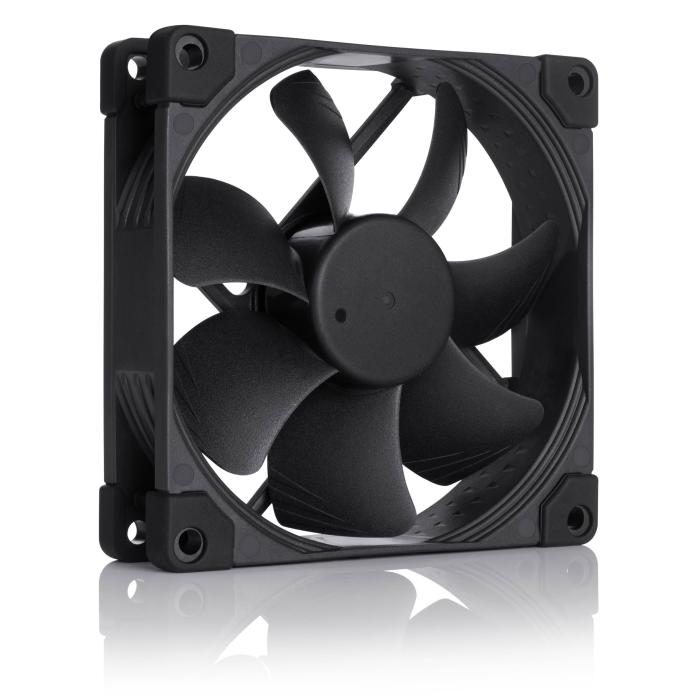

Noctua NF-A9 PWM CH.BK.S 9.2 cm black computer case fan with self-lubricating SSO oil-pressure bearing ensuring a long service life of 150,000 hours. Its speed range goes from 400 to 2000 RPM, controllable via pulse-width modulation (PWM) through a 4-pin connector, offering an airflow of 78.9 m³/h with a static pressure of 2.28 mmH2O. It operates at a maximum noise level of 22.8 dB and consumes only 1.2 W, with two selectable speeds and seven plastic blades, being a quiet and efficient option to renew the internal ventilation of the system.
Specifications
Performance
- Suitable location: Computer case
- Type: Fan
- Fan diameter: 9.2 cm
- Number of speeds: 2
- Rotational speed (min): 400 RPM
- Rotational speed (max): 2000 RPM
- Noise level (high speed): 22.8 dB
- Airflow: 78.9 m³/h
- Maximum air pressure: 2.28 mmH2O
- Pulse-width modulation (PWM) support: Yes
- Bearing type: Self-Stabilising Oil-pressure Bearing (SSO)
- Mean time between failures (MTBF): 150000 h
Design
- Product colour: Black
- Material: Plastic
- Number of fans: 1 fan(s)
- Number of fan blades: 7
- Fan connector: 4-pin
Power
- Power consumption (typical): 1.2 W
- Voltage: 12 V
- Rated current: 0.1 A
Weight & dimensions
- Width: 92 mm
- Depth: 92 mm
- Height: 25 mm
Packaging content
- Package type: Box
- Number of screws: 4
Logistics data
- Harmonized System (HS) code: 84733080
