Description

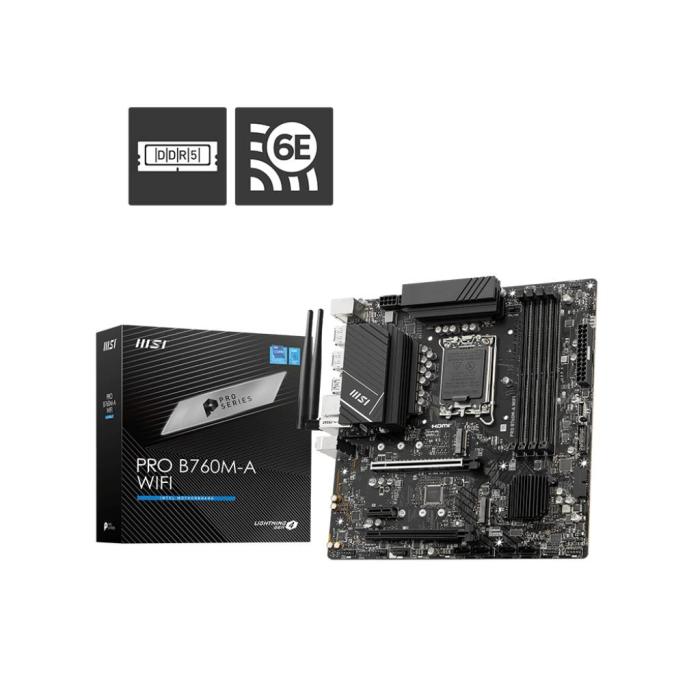

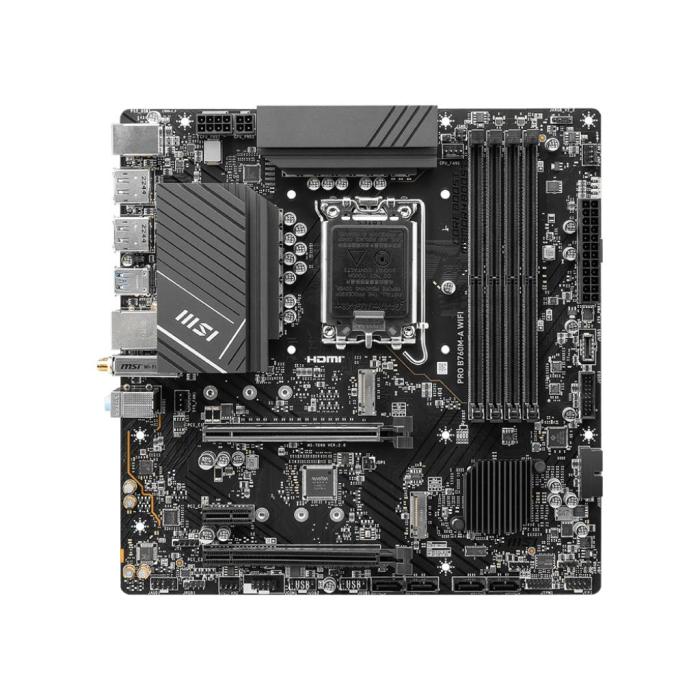

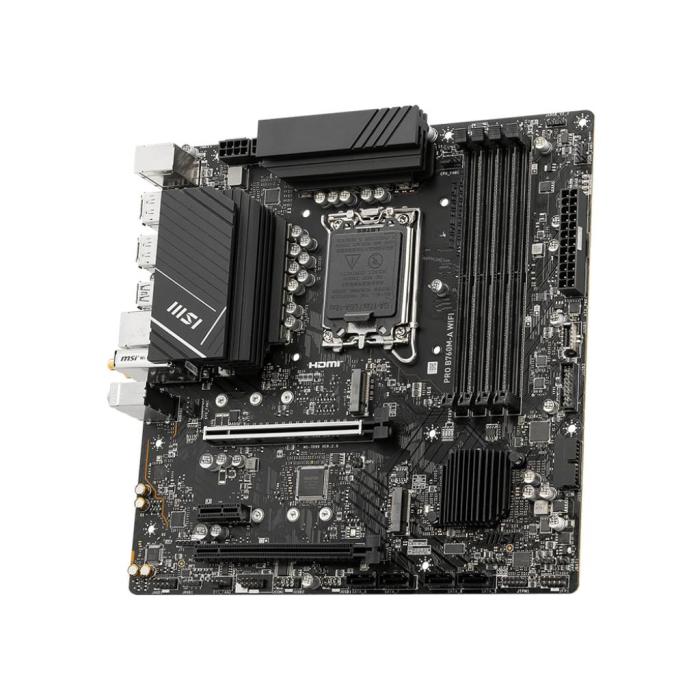

The MSI PRO B760M-A WIFI motherboard, in micro ATX form factor, is designed for the LGA 1700 socket and Intel chips. It supports Intel Celeron and Pentium Gold processors on said socket. It features four DIMM slots for DDR5-SDRAM memory, with dual channel and a maximum capacity of 192 GB, reaching clock speeds of up to 6800 MHz. For storage it supports M.2 and SATA III interfaces, with RAID compatibility at levels 0, 1, 5 and 10. It has four internal USB 2.0 connectors and a front panel audio connector.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold
- Maximum number of SMP processors: 1
- Supported processor sockets: LGA 1700
Memory
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
- Supported memory clock speed (max): 6800 MHz
- Maximum internal memory: 192 GB
- Supported memory types: DDR5-SDRAM
Storage controllers
- Supported storage drive interfaces: M.2, SATA III
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Internal I/O
- USB 2.0 connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- TPM connector: Yes
- RGB LED pin header: Yes

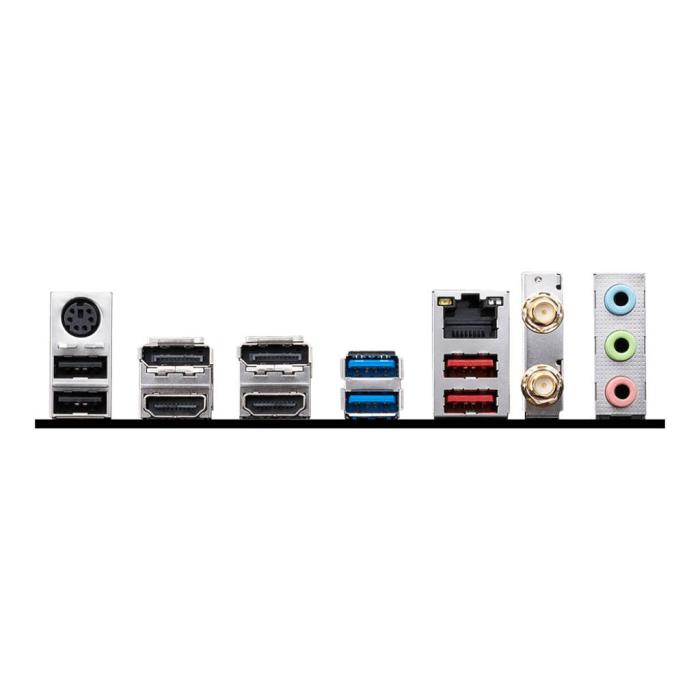

Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 2
- DisplayPorts quantity: 2
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- Bluetooth: Yes
- Bluetooth version: 5.3
Features
- Motherboard chipset: Intel B760
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: Intel
- Power source type: ATX
- Windows operating systems supported: Windows 10, Windows 11
Expansion slots
- PCI Express x1 (Gen 3.x) slots: 2
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- ACPI version: 6.4
- Clear CMOS jumper: Yes
- System management BIOS (SMBIOS) version: 3.5
Weight & dimensions
- Width: 243.8 mm
- Depth: 243.8 mm
