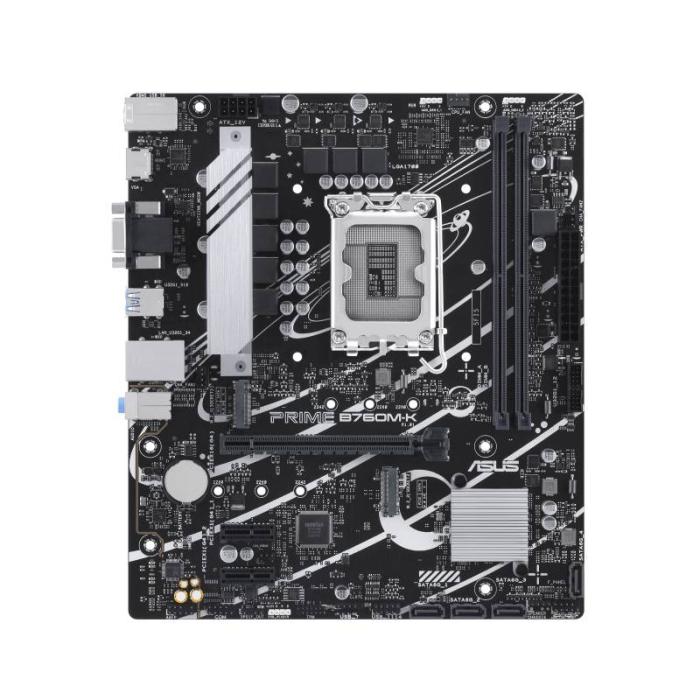

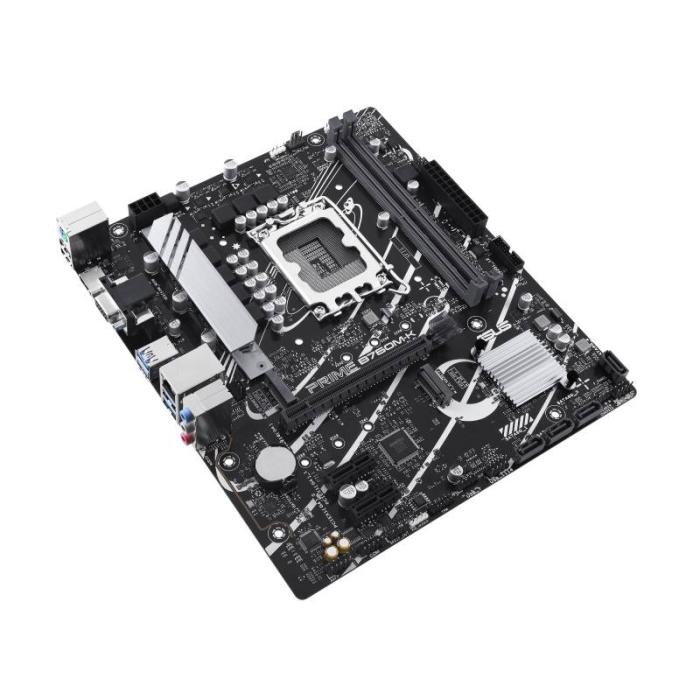

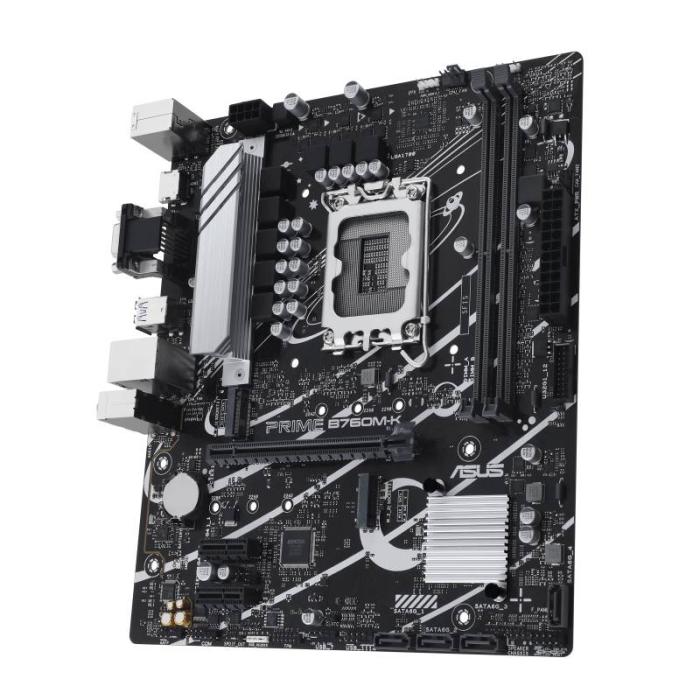

Name: ASUS PRIME B760M-K Intel B760 LGA 1700 micro ATX
Brand: ASUS
Price: 103.79 USD
Availability: InStock

ASUS PRIME B760M-K Intel B760 LGA 1700 micro ATX

$103.79

$103.79 without VAT

ASUS PRIME B760M-K Intel B760 LGA 1700 micro ATX. More info

Amount

Brand: ASUS

SKU: 100669 PRC: 442421 EAN: 4711387198506 PN: 90MB1FI0-M0EAY0

Description

Specifications

Processor

Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Maximum number of SMP processors: 1
Supported processor sockets: LGA 1700

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 8000, 7800, 7600, 7400, 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Supported memory clock speed (max): 8000 MHz
Maximum internal memory: 96 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID support: Yes
RAID levels: 0, 1, 5, 10

Graphics

Parallel processing technology support: Not supported

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
S/PDIF out connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 1
EPS power connector (8-pin): Yes
Number of COM connectors: 1
TPM connector: Yes
12V power connector: Yes
RGB LED pin header: Yes

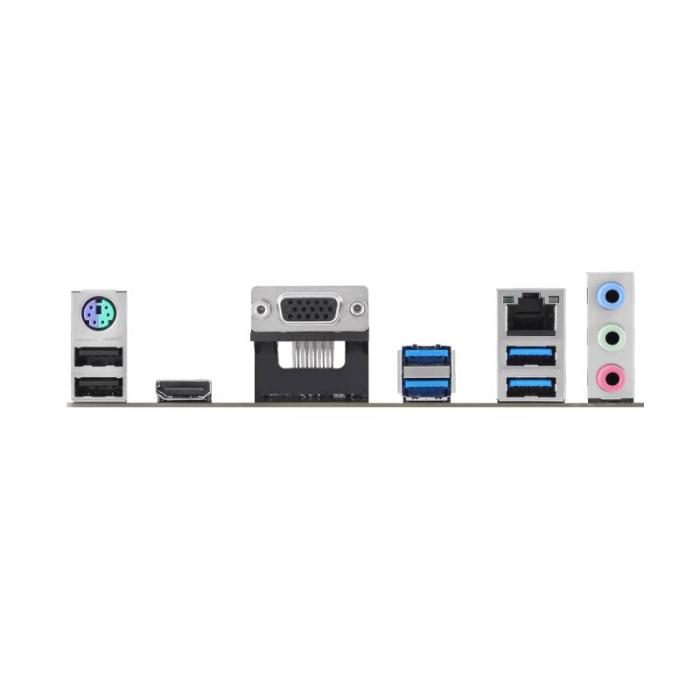

Rear panel I/O ports

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
S/PDIF out port: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: No

Features

Motherboard chipset: Intel B760
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64, Windows 11

Expansion slots

PCI Express x1 (Gen 4.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2

BIOS

BIOS type: UEFI AMI
BIOS memory size: 128 Mbit

Packaging data

Package width: 270 mm
Package depth: 263 mm
Package height: 51.5 mm
Package weight: 1.01 kg

Weight & dimensions

Width: 244 mm
Depth: 211 mm

Packaging content

Cables included: SATA

ASUS PRIME B760M-K Intel B760 LGA 1700 micro ATX

Description

Specifications

Processor

Memory

Storage controllers

Graphics

Internal I/O

Rear panel I/O ports

Network

Features

Expansion slots

BIOS

Packaging data

Weight & dimensions

Packaging content
