Description

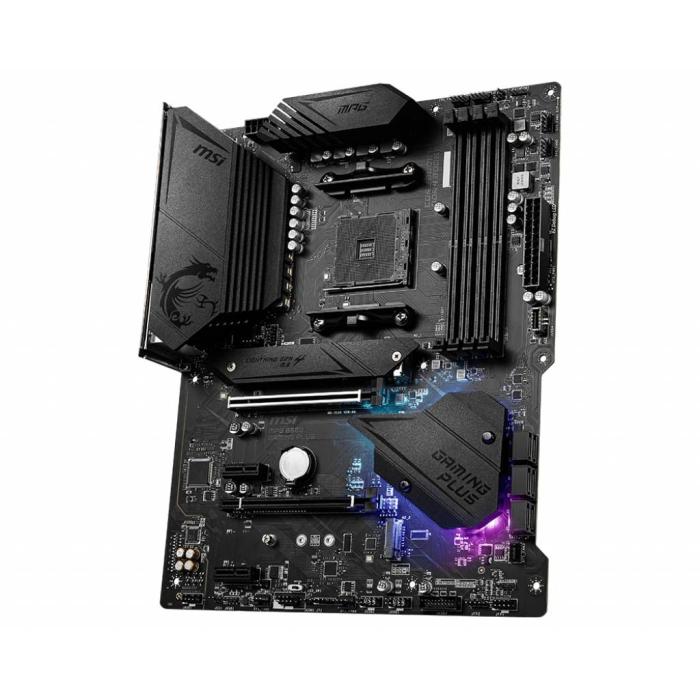

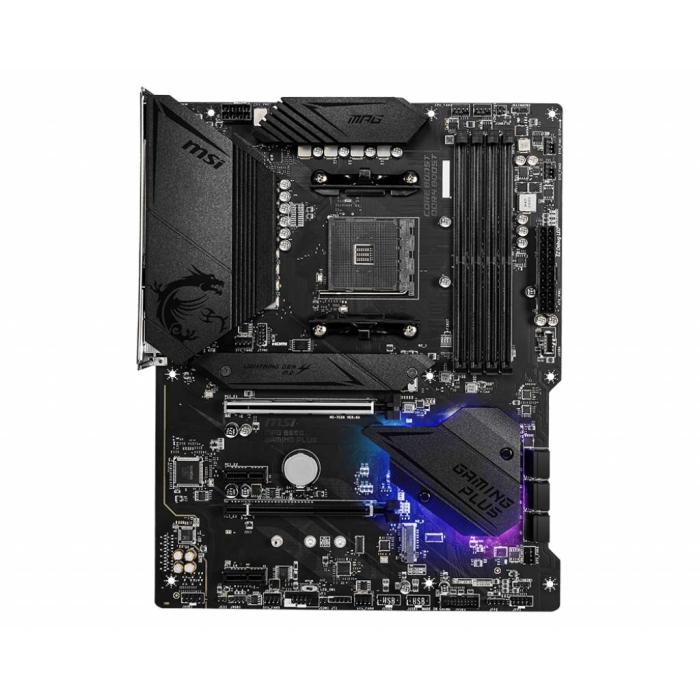

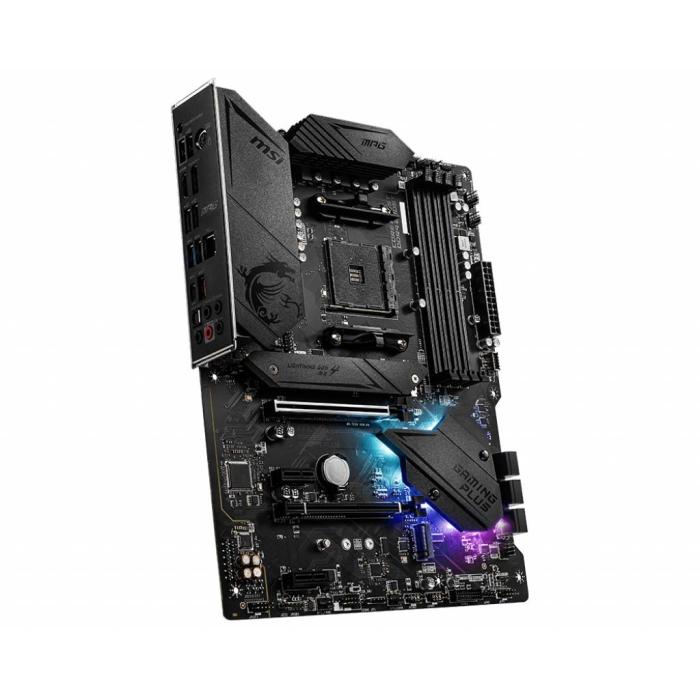

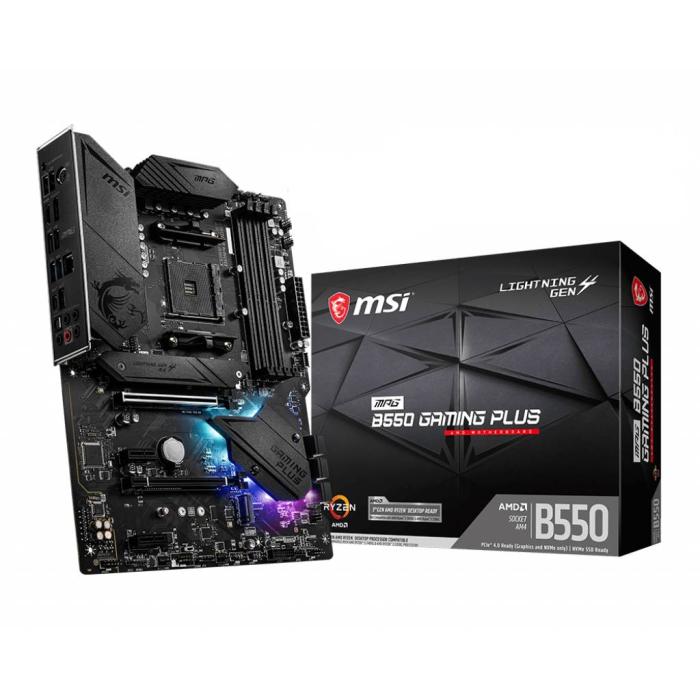

The MSI MPG B550 Gaming Plus motherboard, in black, is designed for building systems with AMD Ryzen 3000 Series processors on the AM4 socket. It supports a single processor and offers four DIMM slots for dual-channel DDR4-SDRAM memory, with support for modules with and without ECC and clock speeds starting at 1866, 2133, 2400, 2667, 2800 and 2933. Maximum internal memory reaches 128 GB, enough for demanding work and gaming configurations. For storage it is compatible with HDD and SSD drives via SATA III, and includes RAID support at levels 0, 1 and 10. Its integrated graphics are not available, so it performs better alongside a dedicated card, and it reaches a maximum resolution of 4096 x 2160 pixels. With dimensions of 305 x 65 x 244 mm (width x height x depth) and a weight of 1 kg, it fits in conventional ATX cases.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM4
- Compatible processor series: AMD Ryzen 3000 Series
- Maximum number of SMP processors: 1
Memory
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400 MHz
- Maximum internal memory: 128 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: SATA III
- RAID support: Yes
- RAID levels: 0, 1, 10
Graphics
- Maximum graphics card memory: 16000 MB
- Parallel processing technology support: 2-Way CrossFireX
- On-board graphics card: No
- Maximum resolution: 4096 x 2160 pixels
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 6
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 6
- Chassis intrusion connector: Yes
- TPM connector: Yes
- 12V power connector: Yes
- RGB LED pin header: Yes

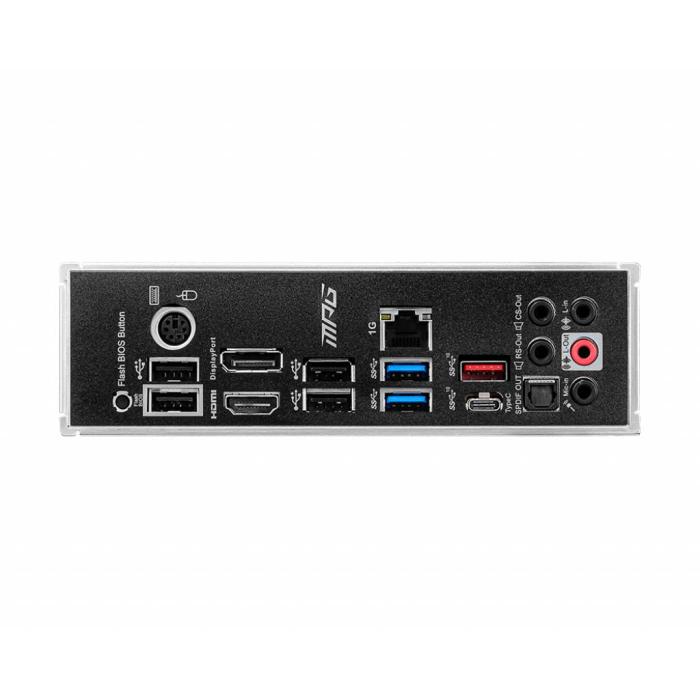

Rear panel I/O ports
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- S/PDIF out port: Yes
- Digital audio optical out: 1
Network
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Realtek 8111H
- Wi-Fi: No
- Top Wi-Fi standard: Not available
Features
- Motherboard chipset: AMD B550
- Audio chip: Realtek ALC892
- Audio output channels: 7.1 channels
- Product colour: Black
- PC health monitoring: CPU, Fan, Temperature
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: AMD
- Number of mounting holes: 9
Expansion slots
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 2
BIOS
- BIOS type: UEFI AMI
- Clear CMOS jumper: Yes
Logistics data
- Harmonized System (HS) code: 84733020
Weight & dimensions
- Width: 305 mm
- Depth: 244 mm
- Height: 65 mm
Packaging content
- Cables included: SATA
- Drivers included: Yes
Other features
- Weight: 1 kg
