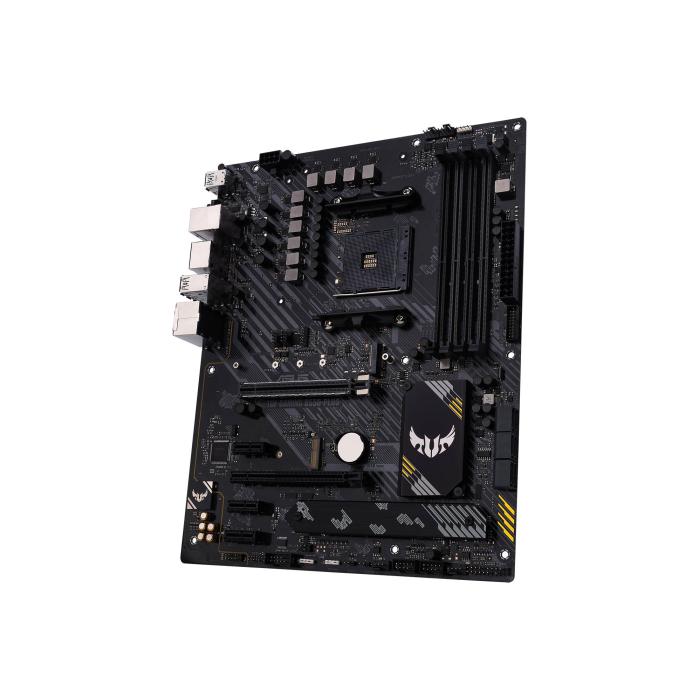

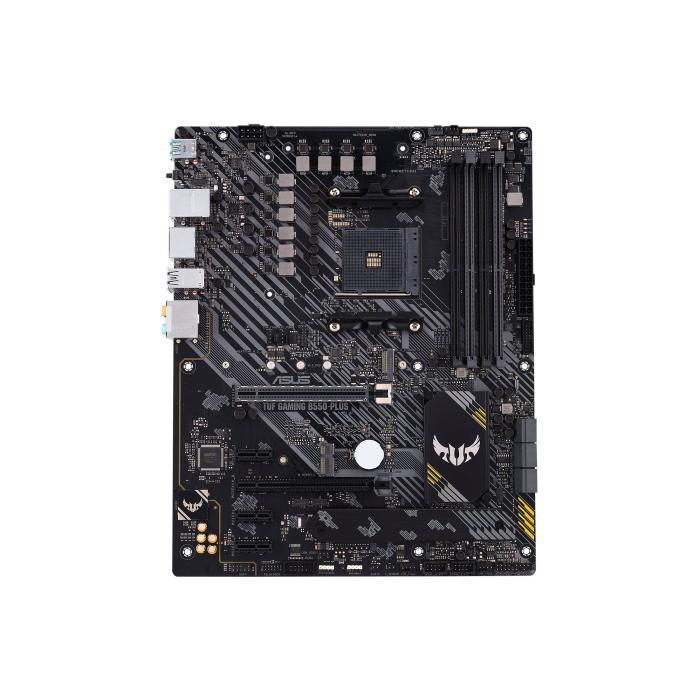

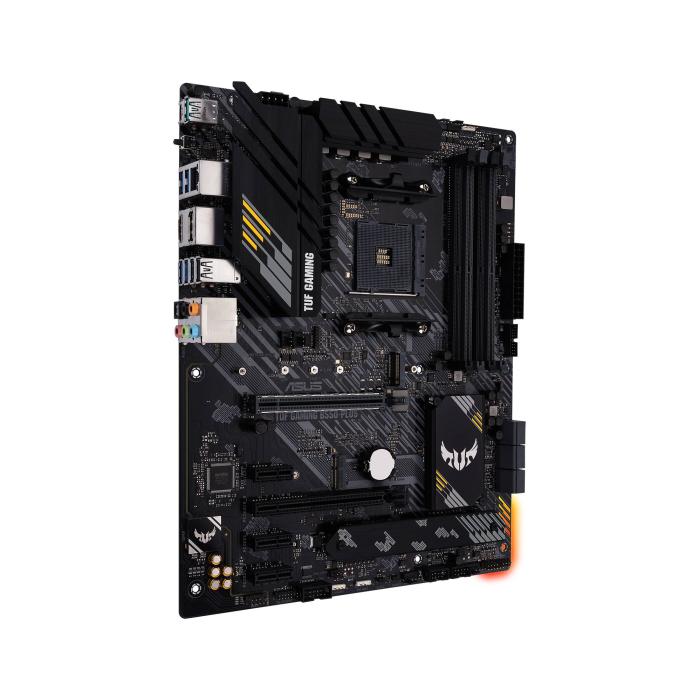

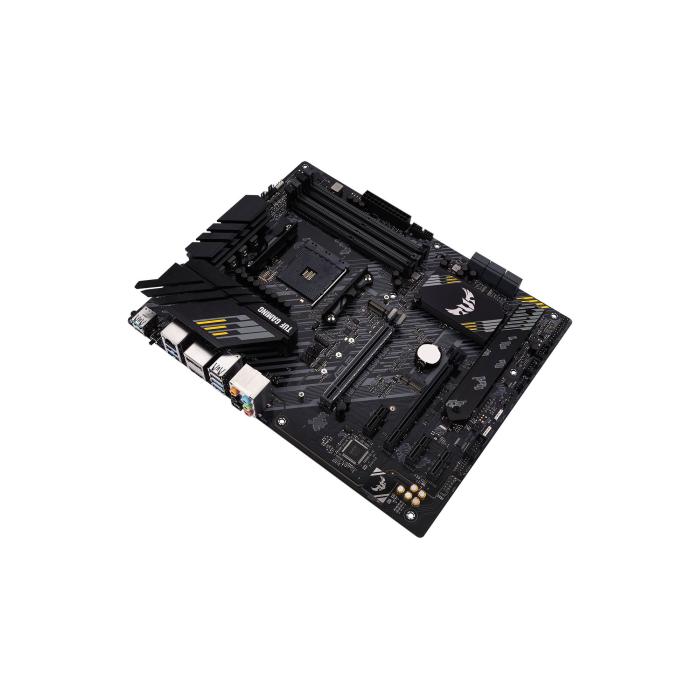

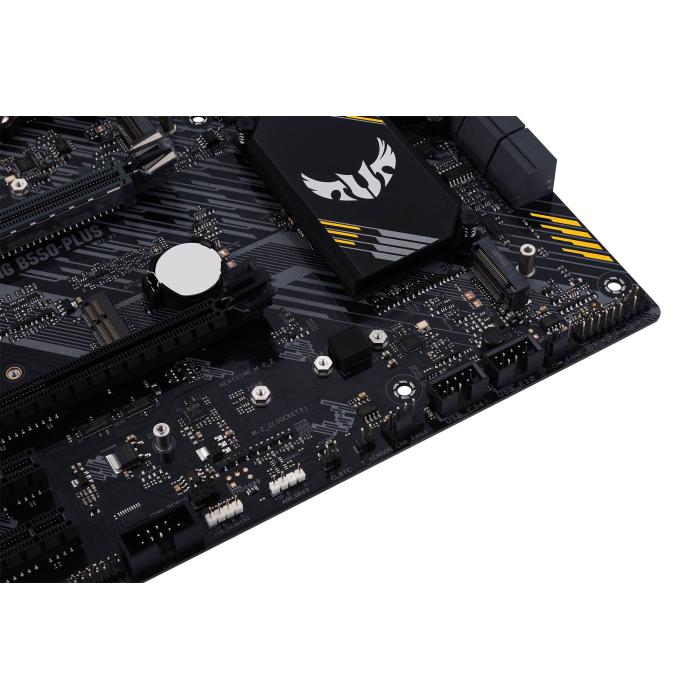

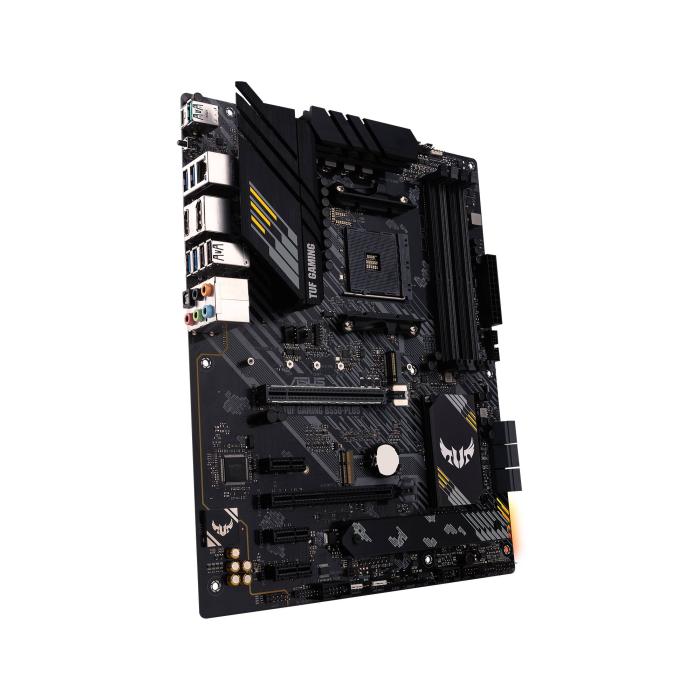

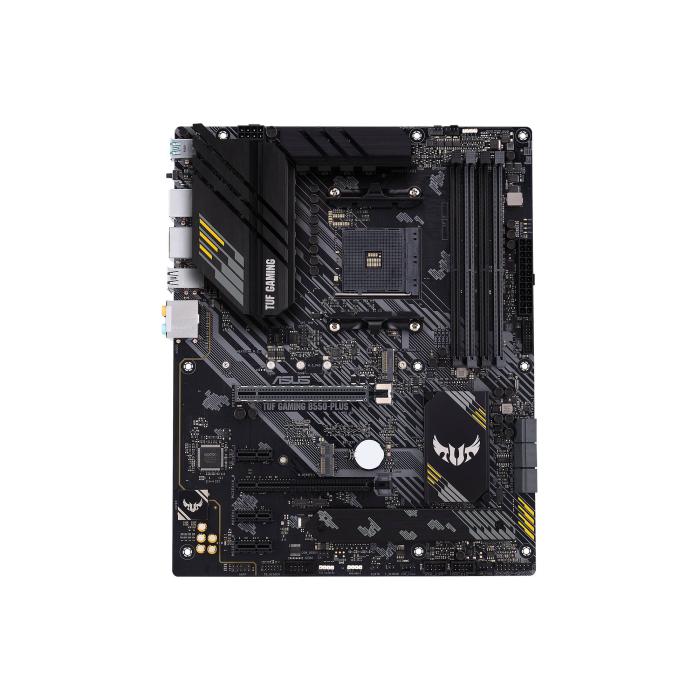

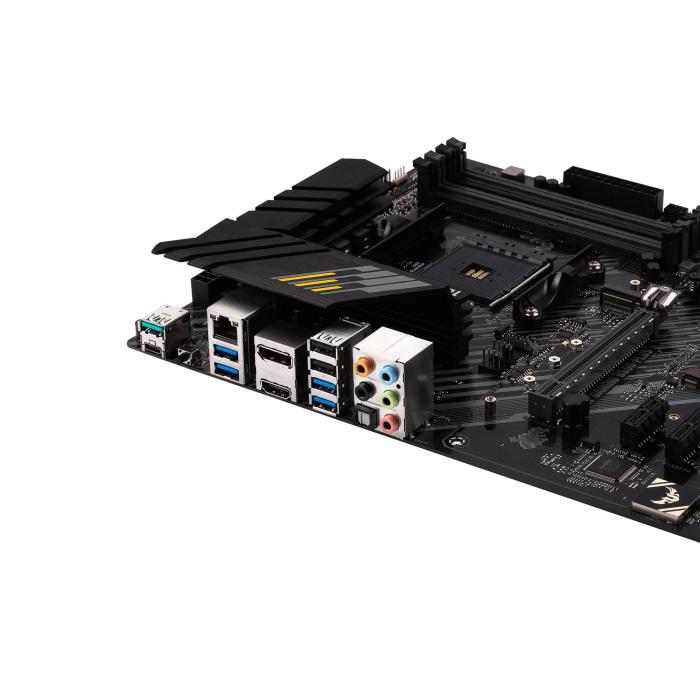

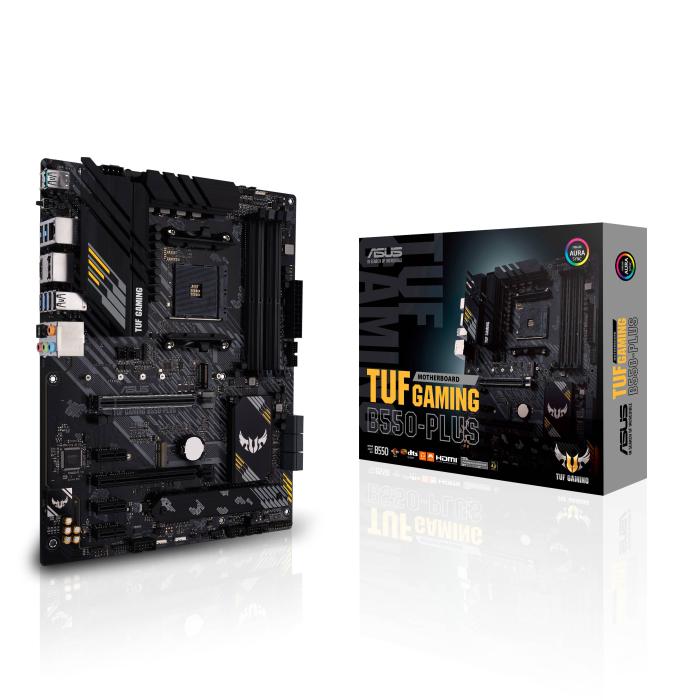

ASUS TUF GAMING B550-PLUS WIFI II AMD B550 Socket AM4 ATX

$125.69 $150.44
$125.69 without VAT

More info

Brand: ASUS
SKU: 89881 PRC: 341516 EAN: 4711081338413 PN: 90MB19U0-M0EAY0

Description

ASUS TUF GAMING B550-PLUS WIFI II, AMD, Socket AM4, AMD Ryzen 3000 Series, Socket AM4, DDR4-SDRAM, 128 GB

Specifications

Processor

  • Processor manufacturer: AMD
  • Processor socket: Socket AM4
  • Compatible processor series: AMD Ryzen 3000 Series
  • Supported processor sockets: Socket AM4

Memory

  • Supported memory types: DDR4-SDRAM
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: ECC
  • Supported memory clock speeds: 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4466, 4600, 48
  • Maximum internal memory: 128 GB
  • Unbuffered memory: Yes

Storage controllers

  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA
  • RAID support: Yes
  • RAID levels: 0, 1, 10

Graphics

  • Parallel processing technology support: Not supported
  • On-board graphics card: No
  • Number of displays supported: 2

Internal I/O

  • USB 2.0 connectors: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
  • Number of SATA III connectors: 6
  • Front panel audio connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • Number of chassis fan connectors: 3
  • EPS power connector (8-pin): Yes
  • Number of COM connectors: 1
  • TPM connector: Yes
  • Thunderbolt headers: 1
  • RGB LED pin header: Yes

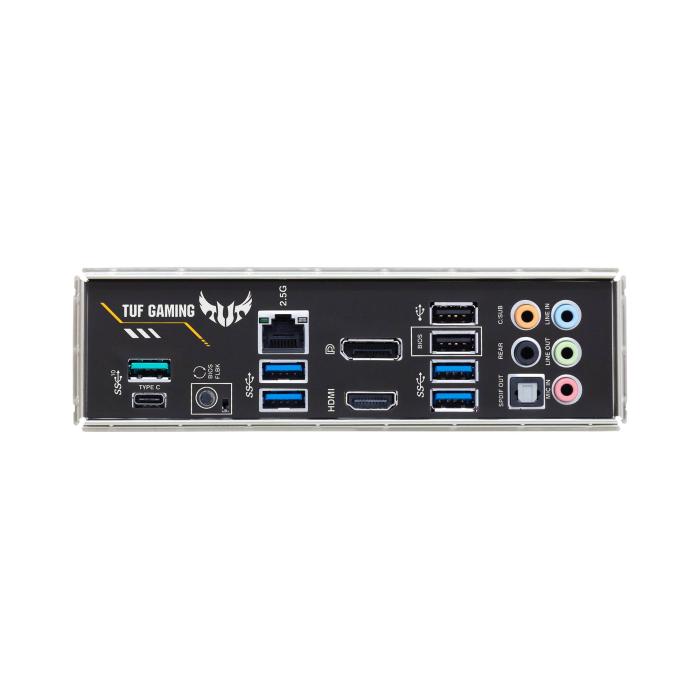

Rear panel I/O ports

  • USB 2.0 ports quantity: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 1
  • HDMI ports quantity: 1
  • DisplayPorts quantity: 1
  • Headphone outputs: 1
  • Line-in: Yes
  • Microphone in: Yes
  • S/PDIF out port: Yes
  • USB connector type: USB Type-A, USB Type-C

Network

  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet
  • Wi-Fi: Yes
  • Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
  • Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
  • Bluetooth: Yes
  • Bluetooth version: 5.2

Features

  • Motherboard chipset: AMD B550
  • Audio output channels: 7.1 channels
  • Product colour: Black
  • Component for: PC
  • Motherboard form factor: ATX
  • Motherboard chipset family: AMD
  • Windows operating systems supported: Windows 10, Windows 11

Expansion slots

  • PCI Express x1 (Gen 3.x) slots: 3
  • PCI Express x16 (Gen 3.x) slots: 1
  • PCI Express x16 (Gen 4.x) slots: 1
  • Number of M.2 (M) slots: 2

BIOS

  • BIOS type: UEFI AMI
  • BIOS memory size: 256 Mbit

Logistics data

  • Harmonized System (HS) code: 84733020

Weight & dimensions

  • Width: 305 mm
  • Depth: 244 mm
  • Height: 75 mm

Packaging content

  • Cables included: SATA
  • Drivers included: Yes

Other features

  • Weight: 945 g
  • Packaging content: 2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 Rubber package 1 x M.2 SSD screw package 1 x TUF Gam
