Description
Specifications
Power
- Total power: 850 W
- AC input voltage: 100 - 240 V
- AC input frequency: 47 - 63 Hz
- Maximum input current (@110V): 10 A
- Maximum input current (@220V): 5 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 120 W
- Combined power (+12V): 850 W
- Combined power (+5V): 120 W
- Max output current (+3.3V): 22 A
- Max output current (+12V): 25 A
- Max output current (+12V1): 40 A
- Max output current (+12V2): 40 A
- Max output current (+5V): 22 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Efficiency: 90%
- Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage

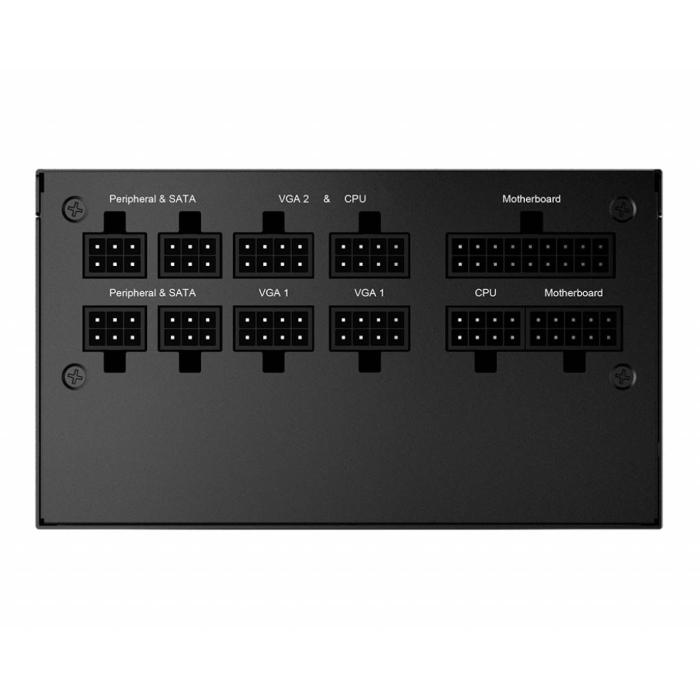

Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Motherboard power cable length: 60 cm
- Number of SATA power connectors: 8
- SATA power cable length: 950 mm
- Peripheral (Molex) power connectors (4-pin): 5
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 6
- PCI Express power cable length: 50 cm
- CPU power connector (4+4 pin): Yes
- ATX Power connector (24-pin): Yes
- Floppy disk drive connector: Yes
- Floppy disk drive cable length: 110 cm
- PCI Express connector: Yes
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
Design
- Product colour: Black
- Cooling type: Active

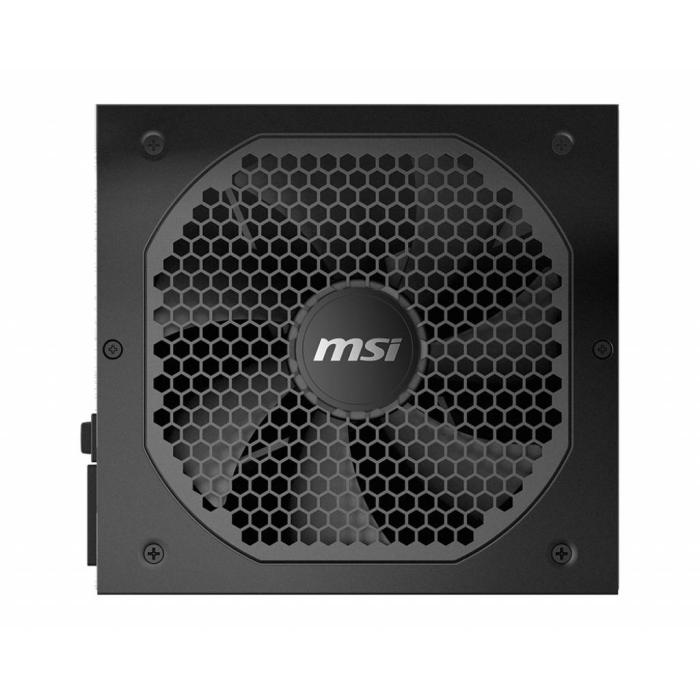

- Fan diameter: 14 cm
- Number of fans: 1 fan(s)

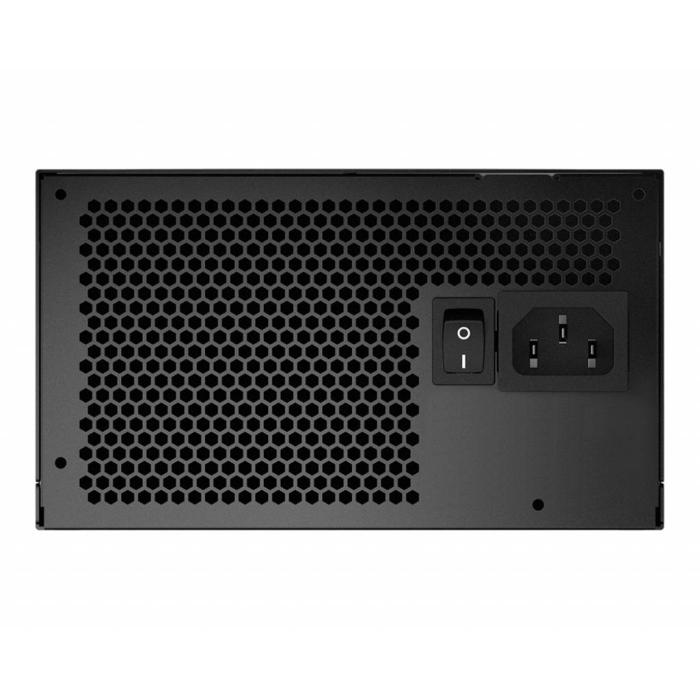

- On/off switch: Yes
Weight & dimensions
- Width: 150 mm
- Depth: 160 mm
- Height: 86 mm
Logistics data
- Harmonized System (HS) code: 84733020
